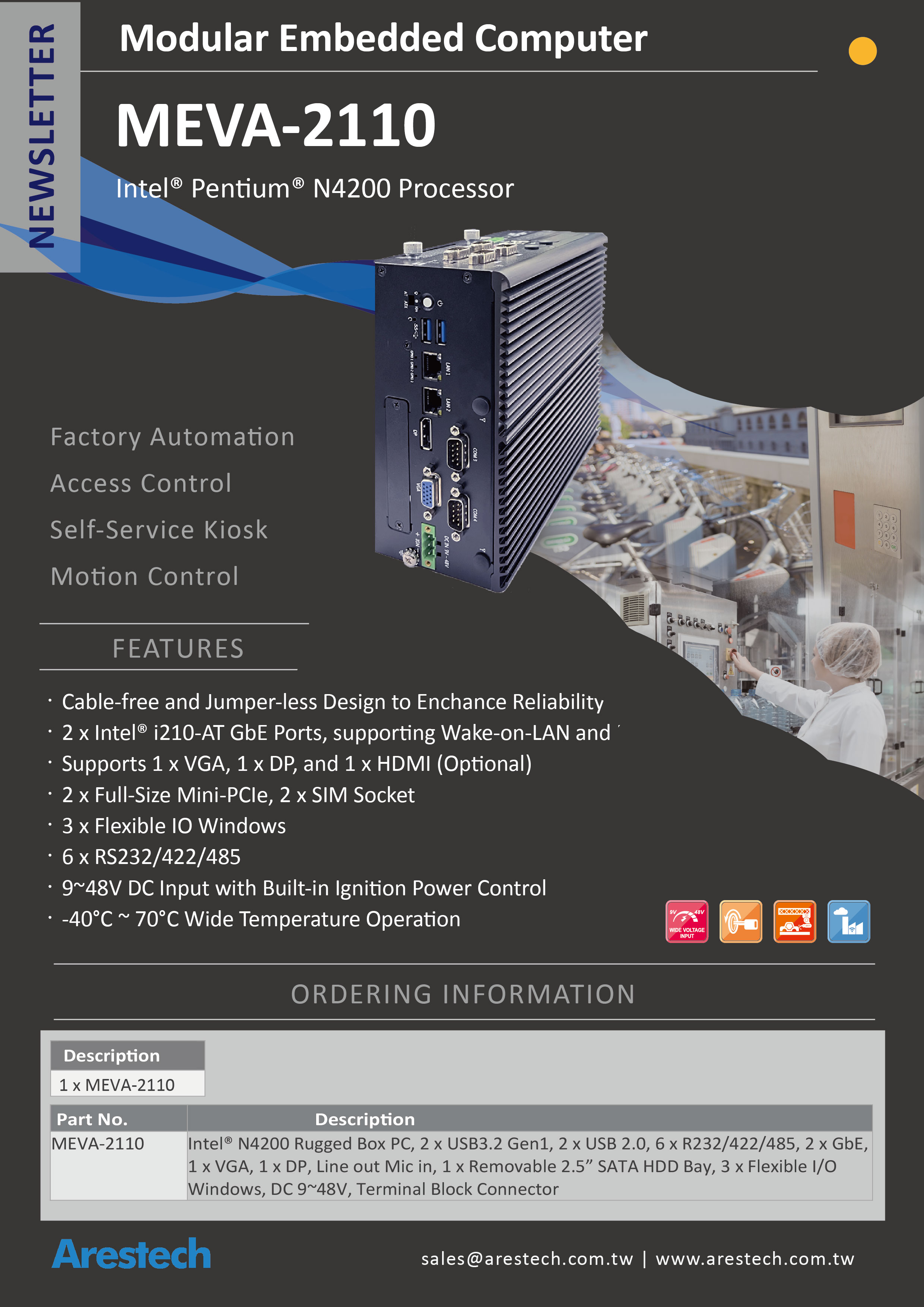

Arestech, a distinguished system designer and manufacturer of series of cutting-edge industrial computer, proudly introduces the MEVA-2110. This expandable computing system is powered by Intel® Pentium® N4200 processor (Apollo Lake) with single 204-pin DDR3L-1866 SO-DIMM socket supporting up to 8GB of memory.
MEVA-2110 can function as an IoT gateway, enabling the connection of devices and secure data transmission, or operate as Machine-to-Machine (M2M) gateway, fostering the interconnection of both wired and wireless devices. With a robust array of rich I/O interfaces and wide range of operating temperatures from -40°C to 70°C, it is well-suited for factory automation and equipment manufacturing applications, such as machine vision, motion control, automated optical inspection and more.

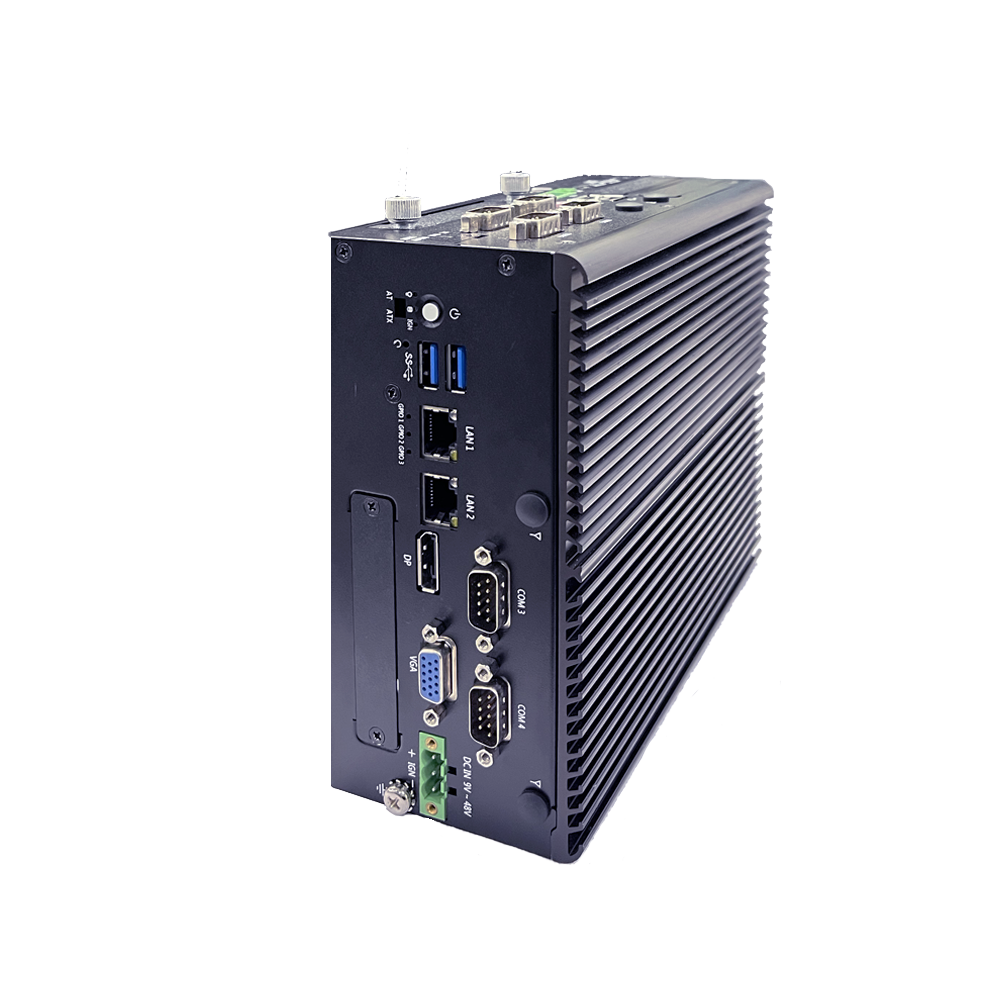

MEVA-2110 is built with multiple I/O connectivity including two USB3.2, two USB2.0, six RS-232/422/485 ports, two Gigabit Ethernet ports, and one audio. When it comes to display interfaces, it supports two multiple displays for VGA, DisplayPort 1.2a, and optional alternative for HDMI. The system features two full-size Mini PCI Express slots, two SIM card sockets, and accommodates a 2.5" SATA HDD and two mSATA for comprehensive storage requirements. Moreover, MEVA-2110 provides flexible expansion options with up to three flexible I/O window and an expansion box with one PCIe/PCI slot.
MEVA -2110 is designed with anti-vibration of up to 5Grms and wide operating temperature range from -40°C to 70°C. This expandable fanless system is built of extruded aluminum with heavy duty metal, allowing it to withstand operations in harsh environments. Measuring 83mm (W) x 215mm (D) x 168mm (H), it comes with wall mounting kits.
|
