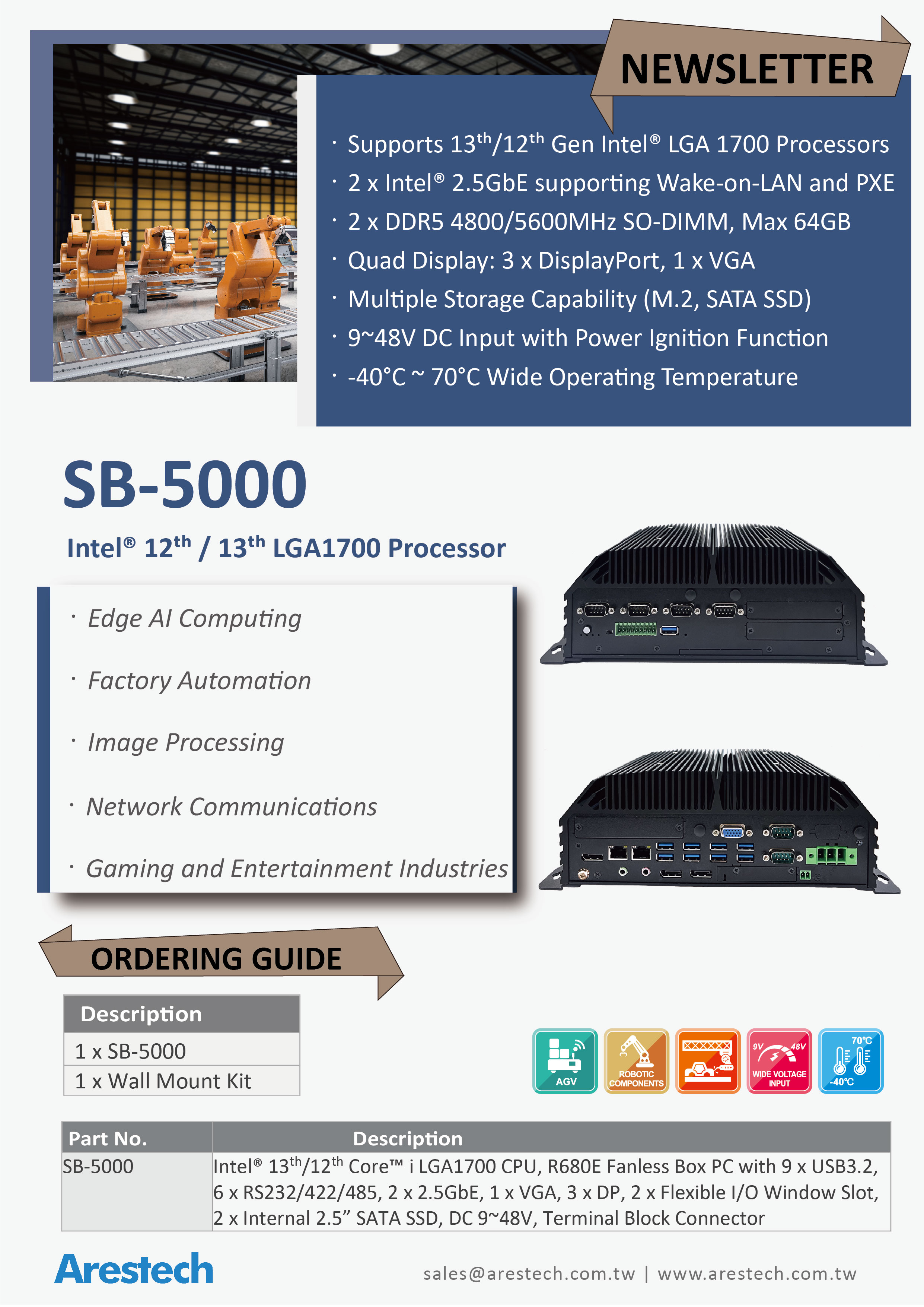

Powered by the 13th/12th gen Intel® Core™ processors with Intel® R680E chipset, Arestech is pleased to announce the innovative SB-5000, a groundbreaking fanless x86 rugged industrial edge computing system. With the 13th gen Intel® Core™ processors providing a major upgrade in processing performance with higher processor Core™ units, optimizing for applications of real-time AI processing and high-speed data handling.
SB-5000 is equipped with dual DDR5 4800/5600 SO-DIMM for up to 64GB (ECC and unbuffered) of system memory, supports two 2.5" HDD/SSD and two M.2 M-Key 2280 sockets, this high-performance industrial computer delivers sufficient storage for massive data processing. When it comes to expansion, it offers one full-size of Mini PCI Express slot with a SIM holder, one M.2 E-Key 2230 socket and one M.2 B-Key 2242/3042/3052 socket with a SIM holder enabling the system to accommodate 5G modules. This intelligent edge computing system supports rich I/O options, including two 2.5GbE LAN ports (Intel® I226-LM) and optional four GbE or four PoE+, six RS-232/422/485, nine USB3.2 Gen2, one VGA, three DisplayPort 1.2a or three optional HDMI, Mic-in and Line-out for audio, and two flexible I/O windows for additional functional expansion possibilities.
Security is also paramount, and our solution incorporates advanced security features, including Intel® TPM 2.0, ensuring the integrity of the manufacturing environment and compliance with industry regulations. Intel® TPM 2.0, a dedicated microcontroller, helps keep the system secure by offering hardware-level protection against malware and sophisticated cyberattacks.
Arestech SB-5000 is built of extruded aluminum, featuring robust heavy-duty metal design to ensure resilience in harsh environment. With a wide operating temperature range from -40°C to 70°C, this industrial computer provides the adaptability needed for diverse manufacturing application. Advantages of real-time processing, high-speed storage, and accelerated I/O connectivity make SB-5000 ideal platforms for edge AI, machine vision, objective classification, factory automation, and more.
