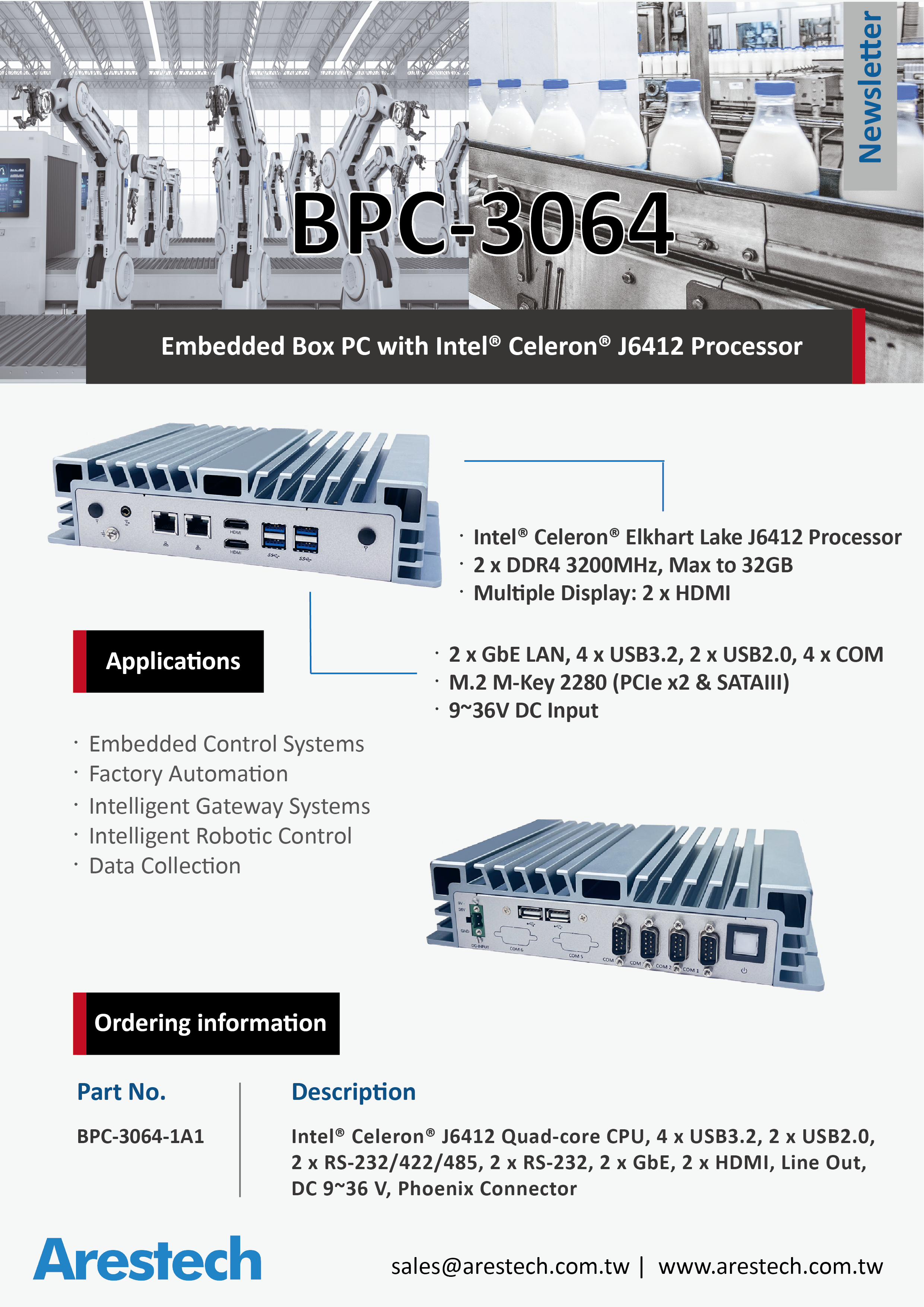

The BPC-3064 is a low-power, compact-size Box PC featuring the Intel® Celeron®
Elkhart Lake J6412 SoC. It supports up to 32GB of DDR4 3200 MHz RAM and offers
dual HDMI displays. Connectivity includes 2 x GbE LAN, 4 x USB 3.2 Gen 1, 2 x
USB 2.0, and 4 x COM ports. In addition, this edge computing system has great
expansions: one full-size internal Mini-PCIe Expansion Slot allowing for
various types of add-on cards depending on the specific needs of your project. One
2.5” SATA HDD drive and one M.2 M-Key are available for extensive storage capacity.
Designed
for reliability in industrial environments, the BPC-3064 is built to withstand
extreme temperature from -20°C up to 60 °C. The device operates silently with a
fanless design and supports a wide power supply voltage range from 9V to 36V DC
Input with 2-pin phoenix type connector. It also utilizes the Trusted Platform
Module (TPM) 2.0 function onboard to ensure data and network security. The BPC-3064
is well-suited for embedded control systems, intelligent robotic control,
intelligent gateway systems, machine failure prediction, and other industrial
automation applications.
The
ultra-compact and thin exterior design is perfect for the present demanding
embedded and productive applications. The BPC-3064 supports Windows 10 IoT,
Windows 11 (IoT/Professional), and Linux to meet ready-to-market demand and
provide competitive advantages for our customers.
Key
Features:
Compact and thin design
suitable for modern embedded and productive applications
