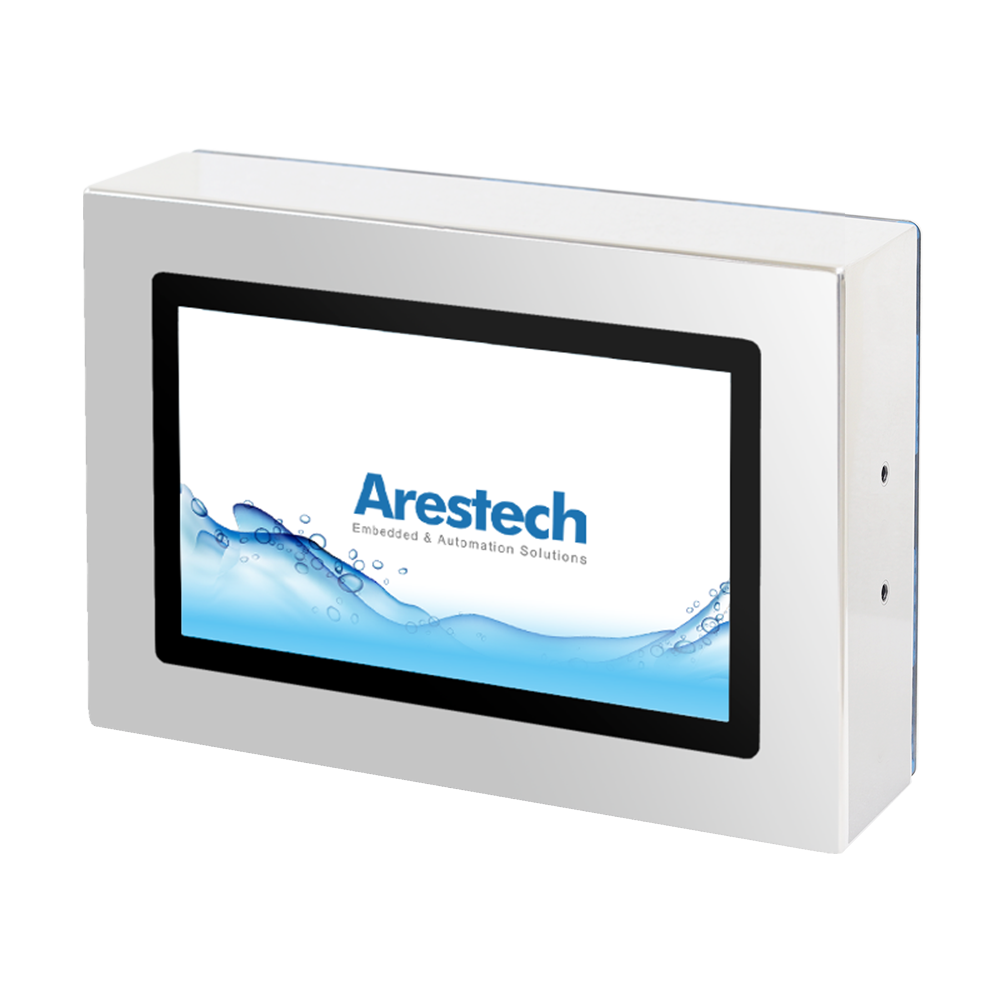

PPC-Z103PW
10.1” Fanless Multi-touch IP66/69K Full Waterproof Panel PC with Intel® Apollo Lake Pentium® N4200 Processor
Full IP66/69K 防塵防水等級 (Z-系列)
PPC-Z103PW
特點
10.1 " TFT LED panel with Capacitive touch display
Embedded Intel® Pentium® N4200
System memory max 8G SDRAM
Internal SATA 2.5" HDD and m.2 2242 socket

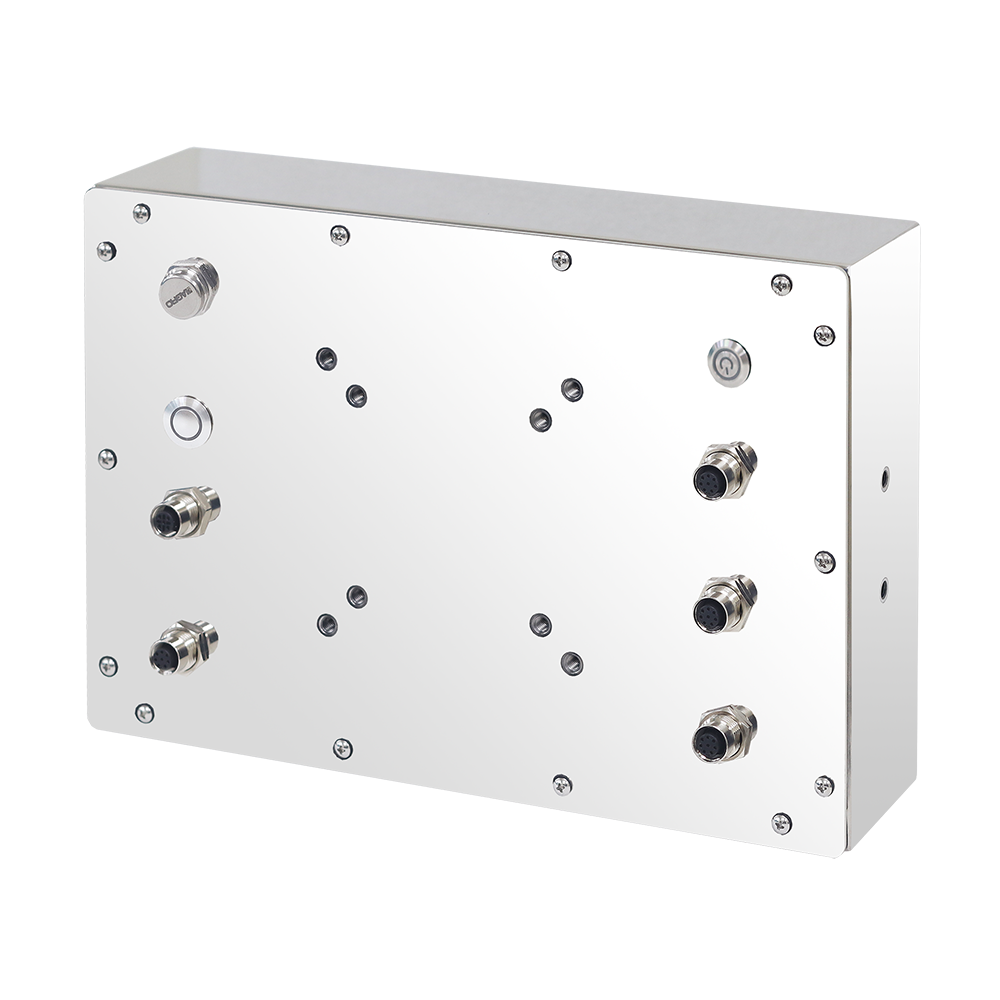

M12 Connectors 1 GbE LAN, 1 2xUSB2.0, 1COM
VESA and Yoke mounting
9~36 V DC Power Input Connectors (Waterproof switch)
-20~60° C Operating Temperature
應用
Food & Beverage Processing IndustrialPharmaceutical and Biopharmaceutical
EquipmentEmbedded HMI Display SystemFactory Manufacturing Automation | Model | PPC-Z103PW-B61A2 | ||
| Processor System | CPU | Intel® Pentium® N4200 | |
| Frequency | Quard-Core 1.1 GHz/2.5GHz(boost) | ||
| L2 Cache | 2 MB | ||
| System Chipset | N/A | ||
| BIOS | UEFI | ||
| Memory | Technology | DDR3L 1866 MHz SDRAM | |
| Max. Capacity | 8GB | ||
| SocketSocket/ (On Board) | 2 SO-DIMM | ||
| Display | Panel Size | 10.1” LCD Panel | |
| Aspect Ratio | 8:5 | ||
| Resolution | 1280 X 800 | ||
| Viewing Angle | 75 x 80 (H) x 80 x 80 (V) | ||
| Brightness | 500 (cd/m2) | ||
| Contrast Ratio | 800:1 | ||
| VGA / HDMI / DP / DVI | 1, VGA, Up to 1920 x 1200 @ 60Hz, M12 Connector, (Option) | ||
| Multi Display | LCD + VGA | ||
| Touchscreen | Touchscreen Type | Projected Capacitive | |
| Surface Hardness | 7 Mohs | ||
|
Durability |
N/A |
||
| Transparency | 90% (±3%) | ||
| I/O Interface | USB | 2, USB 2.0 (M12 Connector) | |
| Serial Port | 1, COM (RS232/422/485) (M12 Connector) | ||
|
Digital I/O |
N/A |
||
|
Ethernet |
Single GbE, 10/100/1000 Mbps (Intel i211AT) (M12 Connector) |
||
| Others | N/A | ||
| Expansion | miniPCIe/ M.2 Slot | 1, mini-PCIe (full size, PCIex1 +USB ) | |
|
PCI/ PCIe Slot |
N/A |
||
|
Audio |
Connector | N/A | |
| Storage |
HDD/SSD |
1, Internal 2.5” HDD/SSD |
|
| mSATA/ M.2 / eMMC |
Supports 1 M.2 B/M Key 2242 |
||
| Power | Power On Model | AT/ATX | |
| Power Supply Voltage | 9~36 V DC input | ||
|
Connector Type |
M12 Connector |
||
|
Power Consumption(Typical/Max.) |
Typical:1A@12V(12W), Max:1.8A@12V(21.6W) |
||
| Battery | CR2032;3.3V | ||
| Mounting | VESA Mount |
75mmx 75mm; 100mm x 100mm |
|
|
Panel Mount |
N/A |
||
|
Others |
Yoke Mount |
||
|
Environment |
Operating Temperature |
-20 ~60° C (-4~ 158° F) w/ 2.5" HDD (Operational humidity: 60° C @ 95% RH Non-Condensing) |
|
|
Storage Temperature |
-40~85° C (-40~185° F) |
||
|
Humidity |
5~95% @ 40° C, non-condensing |
||
|
Vibration |
1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes |
||
|
Shock |
20 G, IEC 60068-2-27, half sine, 11 ms duration |
||
|
General |
Certification |
TBD |
|
|
Thermal Dissipation |
Fanless |
||
|
Material, Surface Finish |
Stainless steel 316, Brush polish |
||
|
Ingress Protection |
Full IP66/IP69K Protection |
||
|
Dimensions (L x W x H) |
310 x 79.5 x 210 mm (12.2"x 3.13"x 8.26") |
||
| WeightNet Weight | 3.145 kg (7.51lb) | ||
| Operating System |
Windows 10 IoT, Linux |
||
Packing List
|
Description |
|
1 x PPC-Z103PW |
Ordering Information
|
Part No. |
Description |
|
PPC-Z103PW-B61A2 |
10.1" 16:9 (1280 x 800), 500nits, Stainless Steel 316 Full IP66/69K Protection, Fanless Panel PC with Intel® Pentium™ N4200 CPU, Projected Capacitive Touch, 4G RAM, 64G SSD, 1VGA, 2 USB 2.0, 1 RS-232/422/485, 1 GbE, DC 9-36V (M12 Connector) |
Optional Items
|
Part No. |
Description |
| APW-60M12V-01 | 12V, 60W, 5A, 5-pin M12 Connector (US) |
|
APW-60M12V-02 |
12V, 60W, 5A, 5-pin M12 Connector (EU) |
|
AKT-USB2M12 |
M12 Connector to USB Cable, 2m |
|
AKT-USB32M12 |
M12 Connector to USB3.0 Cable, 2m |
|
AKT-VGA2M12 |
M12 Connector to DB15 Cable, 2m |
|
AKT-COM2M12 |
M12 Connector to DB9 Cable, 2m |
|
AKT-LAN2M12 |
M12 Connector to LAN Cable, 2m |
|
AWD-WF006 |
wi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 IP66 antenna(dual band), miniPCIe Half size |
|
AWD-WF007 |
wi 802.11 b/g/n/BT4.0 (1T1R) + 1 IP66 antenna(dual band), mini PCIe Half size |
