TPM-3617

TPM-3617

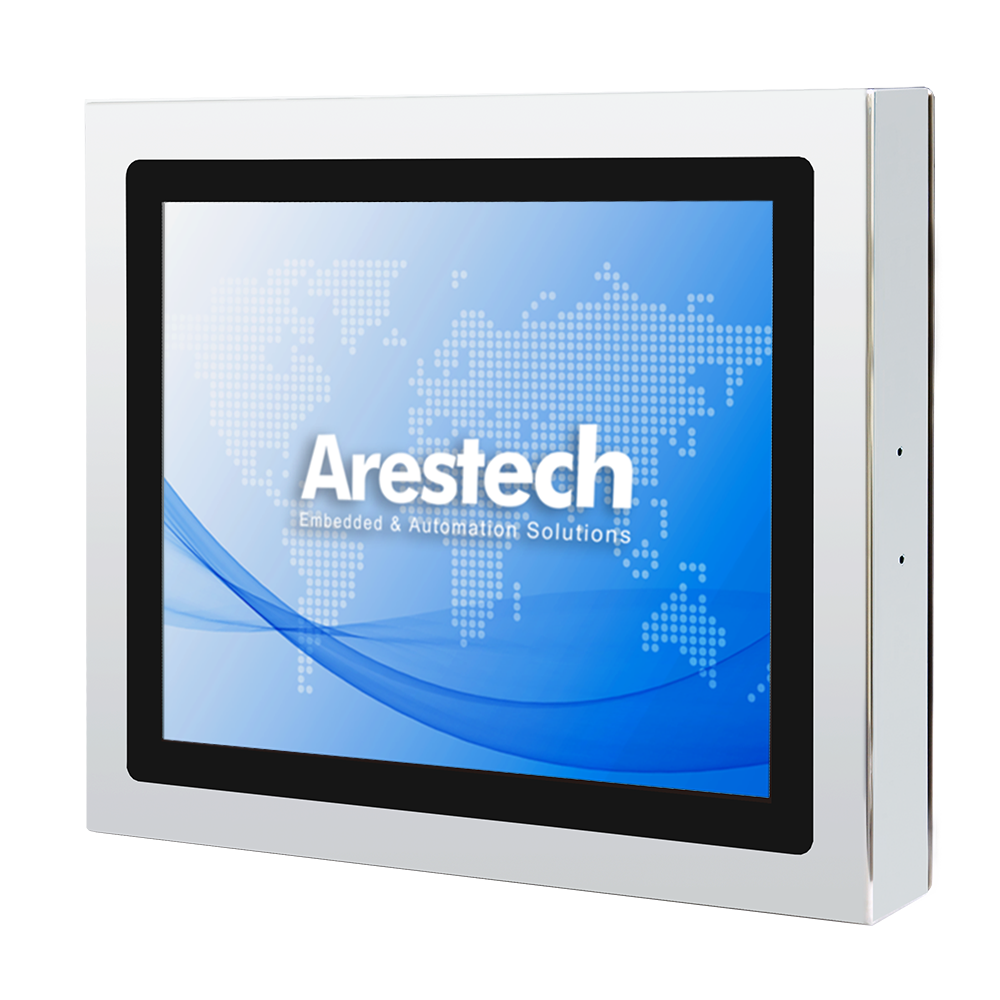

IP66/69K Protected 17" Stainless Steel Industrial Monitor with P-CAP/5-Wire Resistive

  • Quote

  • Datasheet

特點

list_dot_01.pngIP66/69K Protected Stainless Steel 316 Flat Panel Design
list_dot_01.png17" LCD, P-CAP or 5-Wire Resistive, Resolution 1280 x 1024 (SXGA)
list_dot_01.png12 ~ 24 V DC power input (M12 Connector)
list_dot_01.pngVGA and USB (M12 Connetor), HDMI port (option)
list_dot_01.pngVESA and Yoke mounting

應用

list_dot_01.pngFood & Beverage Processing Industry
list_dot_01.pngPharmaceutical and Biopharmaceutical Equipment
list_dot_01.pngEmbedded HMI Display System
list_dot_01.pngFactory Manufacturing Automation
list_dot_01.pngChemical, Gas & Oil Critical Environment

Model TPM-3617P-B6A1 TPM-3617R-B6A1
Display Panel Size 17”
Aspect Ratio 4:3
Resolution 1280 x 1024 (SXGA)
Viewing Angle
85 x 85 (H) x 80 x 80 (V)
Brightness
350 (cd/m2)
Contrast Ratio
1000:1
Life Time
50,000 hrs
Touchscreen Type
Projected Capacitive Touch 5-Wire Resistive
Surface Hardness
7 Mohs
3 Mohs
Transparency
N/A 80% (±3%)
On/Off Button
Yes
N/A
I/O Interface Video Interface
1 VGA (M12 Connector), 1 HDMI (IP67 Waterproof Connector, Option )
Touch Interface 1 USB (M12 Connector)
Audio
Line in (M12 connctor)
Speaker
N/A
2, 2W Amplifier
Others
N/A
OSD Control Function Key
1 RS-232, M12 Connector Remote OSD control (Option)

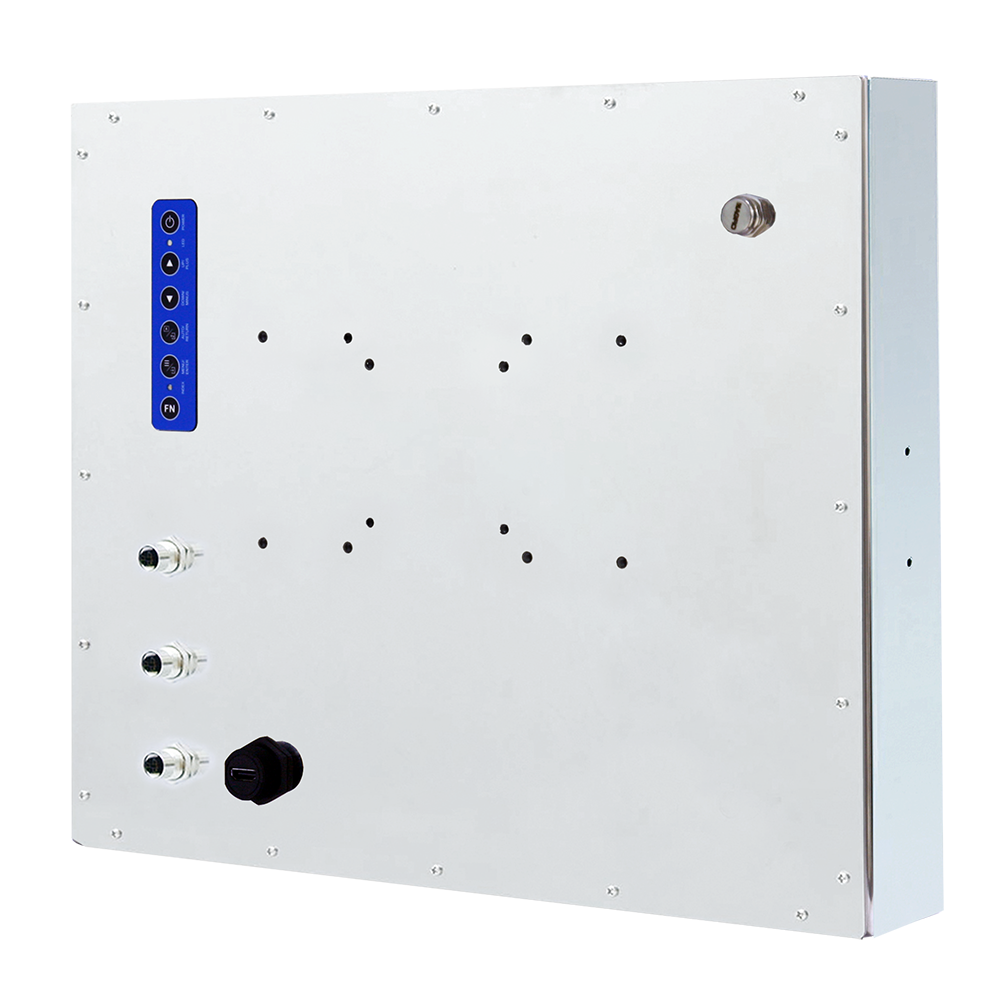

5 Keys: Menu, Up, Down, Auto Adjust, Monitor Power on/off
6 Keys: Menu, Up, Down, Auto Adjust, Monitor Power on/off, Funtion Key
Power Power Input 12-24 V DC power input, single power source
Power Connector M12 connector
Power Consumption 22 W
Mounting
VESA Mount
75mmx 75mm; 100mm x 100mm
Panel Mount
N/A
Others

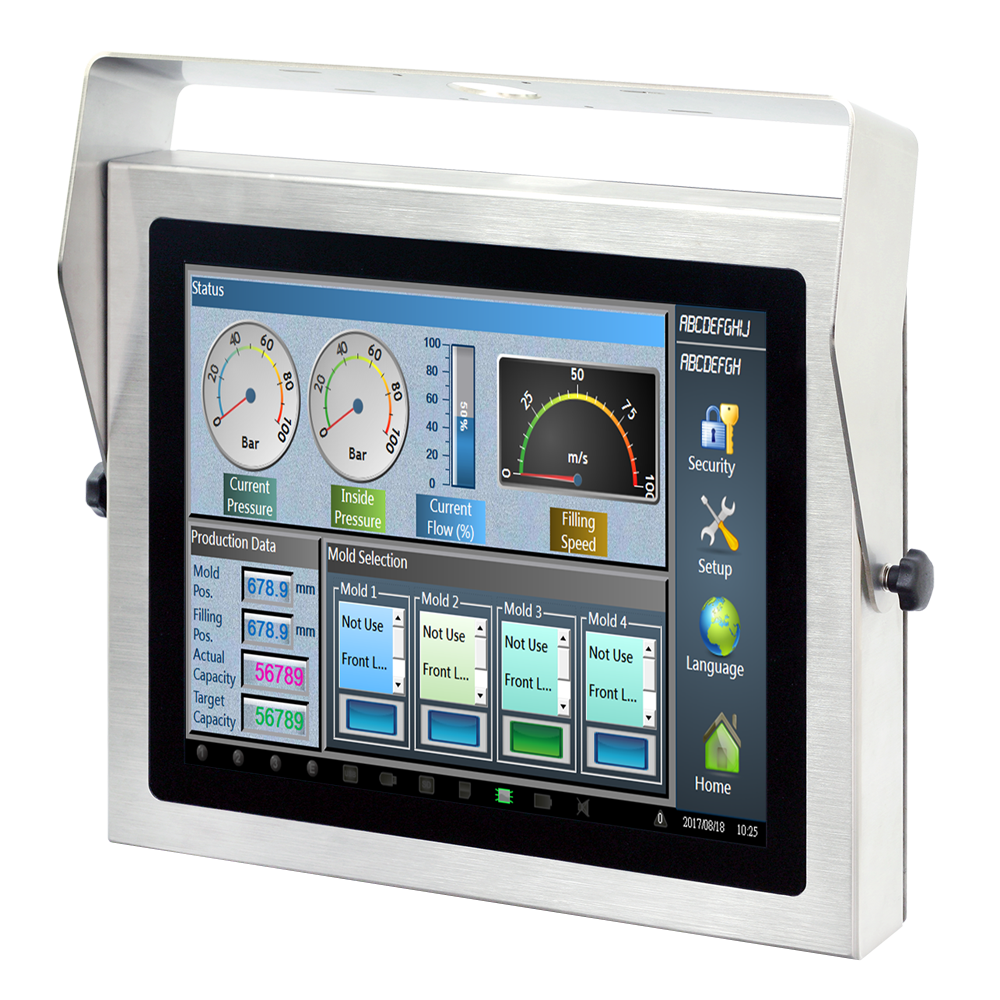

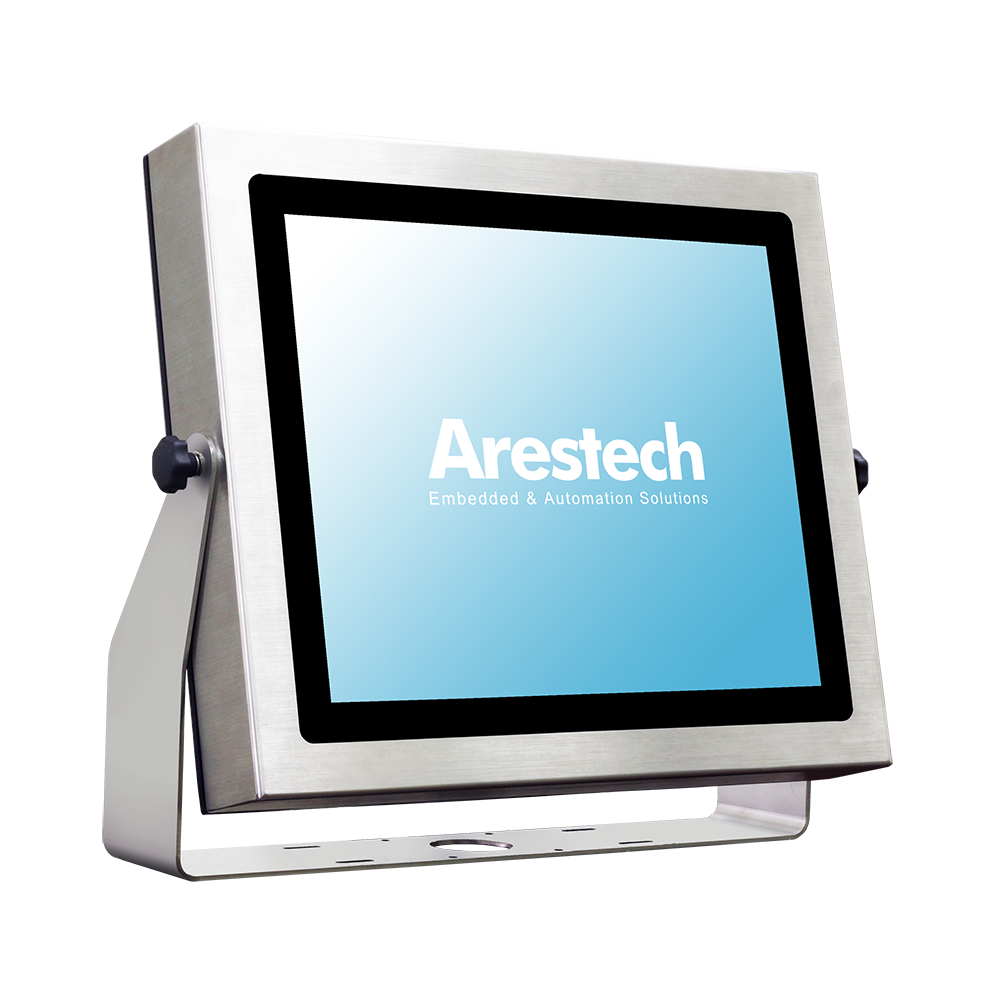

Yoke mount
Environment Operating Temperature 0~60° C (32~140° F)
Storage Temperature -20~60° C (-4~140° F)
Humidity 5~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Shock
Full System IP66 Protection , Stainless Steel 316 (IP69K Protection by Option)
General Certification TBD
Material, Surface Finish
Stainless Steel 316, Brush Finished
True Flat
Yes
Ingress Proctetion Full System IP66 Protection
Dimensions (W x H x D)
439 X 373 X 66.9  (17.28” x 14.69” x 2.63”)
Net Weight
7.71 kg (17.0 lb)
Operating System
Windows 7/8.1/10, WES7, WE8S, Linux Fedora, Ubuntu

Packing List
Description
1 xTPM-3617



Ordering Information

Part No.
Description
TPM-3617P-B6A1
17" 4:3 (1280 x 1024), 350 nits, Stainless Steel 316 Full IP66/69K Protection, with Projected capacitive touch screen, USB interface,1 VGA, DC 12~24V, M12 connector
TPM-3617R-B6A1
17" 4:3 (1280 x 1024), 350 nits, Stainless Steel 316 Full IP66/69K Protection, with  5-wire Resistive touch screen, Line in(M12 connctor), USB interface,1 VGA, DC 12~24V, M12 connector, 2W speaker




Optional Items

Part No.
Description
APW-60M12V-01 12V, 60W, 5A, 5-pin M12 Connector (US)
APW-60M12V-02
12V, 60W, 5A, 5-pin M12 Connector (EU)
AKT-TOU2M12
M12 Connector to Touch Cable, 2m
AKT-VGA2M12-M
M12 Connector to DB15 Male Cable, 2m
AKT-HDMI2IP67 IP67 Connector to HDMI Cable, 2m
30615-0000-CA M12 Female 3P to Audio Jack Female 2000mm
