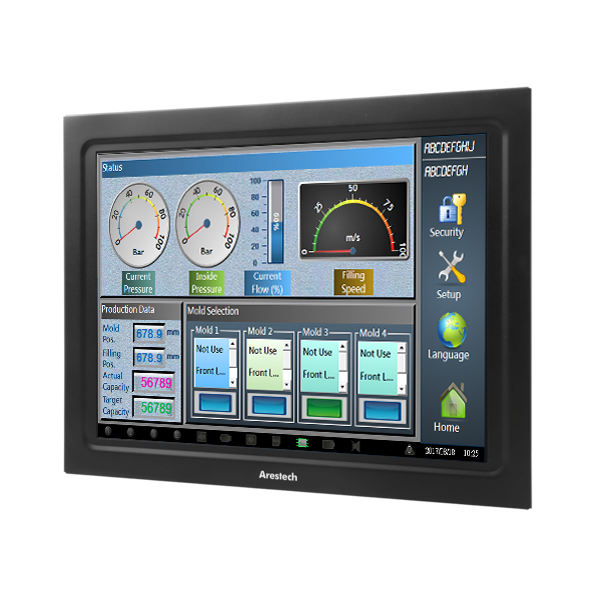

TPM-3215
Industrial 15" LED Resistive Touch /Projected Capacitive Multi-touch Display
自動化設備觸控螢幕
TPM-3215
特點
15” XGA LCD Panel up to 1024 x 768 Resolution5-wire Resistive / Projected Capacitive Touch Technology12-24 V DC Power Input with Terminal BlockCombined with RS-232 and USB Touch Interfaces-20~60° C Operating TemperaturePanel and VESA Mounting應用
Embedded HMI Display SystemFactory / Manufacturing AutomationATM / Self-service / Kiosk ApplicationsVending / Ticketing Machines| Model | TPM-3215P | TPM-3215R | |
| Display | Panel Size | 15” LCD Panel | |
| Resolution | 1024 x 768 (XGA) | ||
| Viewing Angle | 80 x 80 (H) x 80 x 80 (V) | ||
| Brightness | 300 (cd/m2) | ||
| Color Support | 16.7 M | ||
| Contrast Ratio | 600:1 | ||
| Response Time | 8 (msec) | ||
| Touchscreen | Touchscreen Type | Projected Capacitive | 5-Wire Resistive |
| Surface Hardness | 7 Mohs | 3 Mohs | |
| Durability | - | 10 million touches | |
| Transparency | 90% (±3%) | 80% (±3%) | |
| I/O Interface | Video Interface | 1 VGA | |
| Touch Interface | Projected Capacitive (for USB only) / 5-Wire Resistive (for USB and RS-232) | ||
| OSD Control | Function Key |
5 Keys: Menu, Up, Down, Auto Adjust, Monitor Power on/off Menu Functions: Brightness, Contrast, Color Adjust, Color Temp, Auto Color, Language |
|
| Power | Power Connector | Pheonix Terminal Block, 2 pins | |
| Power Input | 12-24 V DC power input, single power source (Typical) | ||
| Power Consumption | 10.1 W | ||
| Environment | Operating Temperature | 0~50° C (32~122° F) | |
| Storage Temperature | -30~70° C (-22~158° F) | ||
| Humidity | 5~95% @ 40° C, Non-condensing | ||
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | ||
| General | Ingress Protection | IP54 | |
|
Dimensions (W x H x D) |
364.60 x 290.60 x 39.80 mm (14.35” x 11.44” x 1.56”) | ||
| Weight | 3.7kg (8.14 lb) | ||
| Operating System | Windows CE/XP/7/8.1/10, WES7, WE8S, Linux Fedora, Ubuntu | ||
Packing List
|
Description |
|
1 x TPM-3215 / TPM-3115 |
|
1 x Driver CD |
|
1 x USB Cable |
|
1 x VGA Cable |
|
1 x Power Adapter |
|
6 x Panel Mounting Screws |
Ordering Information
|
Part No. |
Description |
|
TPM-3215P-A1E |
15” XGA Industrial Ultra-slim Projected Capacitive Touch Display |
|
TPM-3215R-A1E |
15” XGA Industrial Ultra-slim Resistive Touch Display |
|
TPM-3115P-A1E |
15” XGA Industrial Ultra-slim Projected Capacitive Touch Open Frame |
Optional Items
|
Part No. |
Description |
|
ACS-PS-US |
Power Cable 3-pin, 180 cm, USA Type |
|
ACS-PS-EU |
Power Cable 3-pin, 180 cm, Euro Type |
|
ACS-PS-CN |
Power Cable 3-pin, 180 cm, China Type |
|
ACS-100-STD |
LCD VESA Table Stand |
