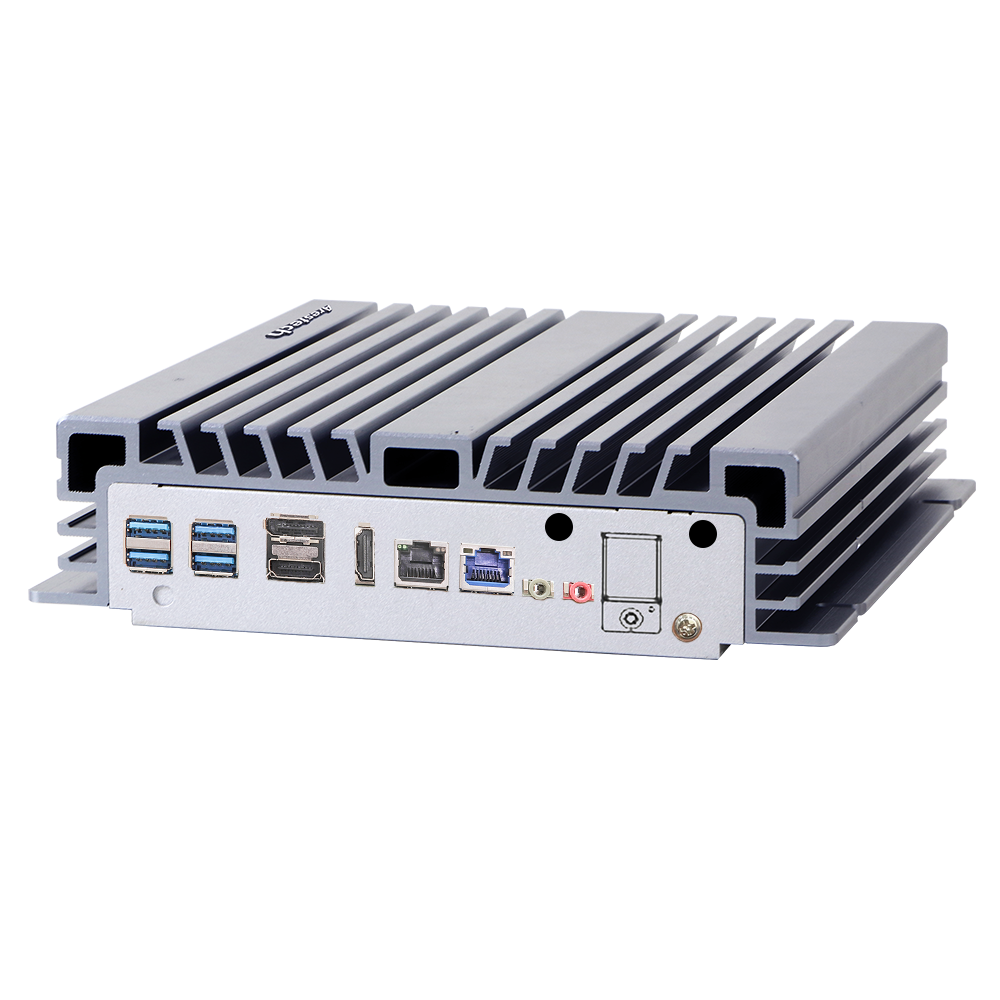

Supports Intel® Core™ Series 2 (Bartlett
Lake)/14th/13th/12th LGA 1700 CPU
Dual Channel DDR5 4800/5600MHz, up to 96GB
Multiple Display: 2 x HDMI 2.0b, 1 x DP 1.4a++
1 x 2.5GbE, 1 x 1.0GbE
Supports GPIO: 4 x Input & 4 Output
12~28VDC Input
-20°C ~ 60°C Wide Operating Temperature
特點
應用
Edge AI Computing
Factory Automation
Motion Control
Machine Vision
Data Analytics
|
Model |
BPC-5112-1A1 |
|
|
Processor System |
CPU |
Intel® Core™ Series 2 (Bartlett Lake) & 14th/13th/12th LGA 1700 Processors (35/45W)
|
|
System Chipset |
Intel® Q670 |
|
|
BIOS |
AMI 256 Mbit |
|
|
TPM |
TPM 2.0 onboard IC |
|
|
Memory |
Technology |
Dual Channel DDR5 4800/5600MHz |
|
Max. Capacity |
96GB |
|
|
Socket Type |
2 x 262-pin SO-DIMM |
|
|
Display |
Graphics Engine |
Intel® UHD Graphics |
|
Multiple Display |
3 |
|
|
HDMI |
2 x HDMI 2.0b, Max resolution up to 4096x2160 |
|
|
DP |
1 x DP, Max solution 4096 x 2160 |
|
|
I/O Interface |
USB |
4 x USB3.2, 4 x USB2.0 |
|
Serial Port |
2 x RS232/422/485 |
|
|
Ethernet |
1 x 2.5GbE Intel® i226V 1 x 1.0GbE Intel® i219-LM |
|
|
Audio |
1 x Line-out, 1 x Mic-in (Realtek ALC897 HD) |
|
|
GPIO |
4 x Input, 4 x Output (D-SUB 9-pin) |
|
|
Antenna Hole |
2 |
|
|
Storage |
2.5" HDD / SSD |
2 x Internal 2.5” SATA HDD/SSD |
|
M.2 |
1 x M.2 M-Key 2242/2280 (PCIe Gen4 x4) 1 x M.2 M-Key 2242 (PCIe Gen4 x4 and SATA III) |
|
|
RAID |
Intel® VMD RAID 0/1 (supported by identical interface (PCIe or SATA)) |
|
|
Expansion |
M.2 |
1 x M.2 E-Key 2230 (PCIe x1, USB 2.0 and CNVi for Wireless) 1 x M.2 B-Key 3042/3052 (PCIe x1, USB 3.2 Gen1, and USB 2.0) |
|
Power |
Power Mode |
AT / ATX |
|
Power Supply Voltage |
12~28VDC Input |
|
|
Power Connector Type |
1 x 2-pin Terminal Block Connector |
|
|
Mounting |
Type |
Wall Mount |
|
Environment |
Operating Temperature |
-20 ~ 60°C |
|
Storage Temperature |
-40 ~ 75°C |
|
|
Humidity |
5% ~ 90% (Non-condensing) |
|
|
Vibration |
1Grms, 5-500 Hz, 1hr/Axis |
|
|
Shock |
20Grms, Half-sine 11ms |
|
|
General |
Certification |
CE/FCC Class A |
|
Thermal Dissipation |
Fanless System |
|
|
Material |
Extruded Aluminum |
|
|
Dimensions (W x D x H) |
238 x 245 x 66mm |
|
|
Net Weight |
3.22kg |
|
|
Operating System |
Windows 10 IoT, Windows 11 (IoT/Professional), Linux |
|
Ordering Information
| Part No. | Description |
| BPC-5112-1A1 |
Intel® Core™ Series 2/14th/13th/12th Gen Intel® Core™ LGA1700 CPU socket, Q670 Chipset, 1 x 2.5GbE, 1 x 1.0GbE, 2 x HDMI, 1 x DP, 2 x RS232/422/485, 4 x USB3.2, 4 x USB2.0, GPIO, Mic-In/Line-Out, 12~28VDC |
Packing List
Description
1 x BPC-5112-1A1
Optional Items
Part No. Description
EA-PS-120W24VTB2x-0111
Adapter
AC/DC 24V 5A 120W with TB2 Connector
27-x301010005-CA
Power Cord,
3-pin EU Type, 180 cm
27-x301000003-CA
Power Cord,
3-pin US Type, 180
cm
251TE
Series 2
Intel® Core™ 7 Bartlett Lake_36M Cache, up to 5.40GHz_45W
221TE
Series 2
Intel® Core™ 5 Bartlett Lake_24M Cache, up to 5.00GHz_45W
211TE
Series 2
Intel® Core™ 5 Bartlett Lake_20M Cache, up to 4.80GHz_45W
201TE
Series 2 Intel®
Core™ 3 Bartlett Lake_12M Cache, up to 4.60GHz_45W
i7-14700T
14th Gen
Intel® Core™ i7-14700T Raptor
Lake Refresh_30M Cache, up to 5.00GHz_35W
i5-14500T
14th Gen
Intel® Core™ i5-14500T Raptor
Lake Refresh_24M Cache, up to
4.80GHz_35W
i3-14100T
14th Gen
Intel® Core™ i3-14100T Raptor
Lake Refresh_12M Cache, up to 4.40GHz_35W
i7-13700TE
13th Gen Intel® Core™ i7-13700TE
Embedded_Raptor Lake_30M Cache, up to 4.80GHz_35W
i5-13500TE
13th Gen Intel® Core™ i5-13500TE Embedded_Raptor Lake_24M Cache, up to 4.50GHz_35W
i3-13100TE
13th Gen Intel® Core™ i3-13100TE
Embedded_Raptor Lake_12M Cache, up to 4.10GHz_35W
i7-12700TE
12th Gen Intel® Core™ i7-12700TE
Embedded_Alder Lake_25M Cache, up to 4.60 GHz_35W
i5-12500TE
12th Gen Intel® Core™ i5-12500TE
Embedded_Alder Lake_18M Cache, up to 4.30 GHz_35W
i3-12100TE
12th Gen Intel® Core™ i3-12100TE
Embedded_Alder Lake_12M Cache, up to 4.00 GHz_35W
AWD-4G003
4G (LTE)
EG25-G + 2 Antennas, Full Size (for Global)
AWD-WF003
Wi-Fi
802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 Antennas (Dual Band), Half Size
AWD-WF005
Wi-Fi
802.11 a/b/g/n/ac/BT4.0 (2T2R) +2 Antennas (Dual Band), M.2 2230 Type
