Full IP66/69K 防塵防水等級 (Z-系列)

PPC-Z197

PPC-Z197

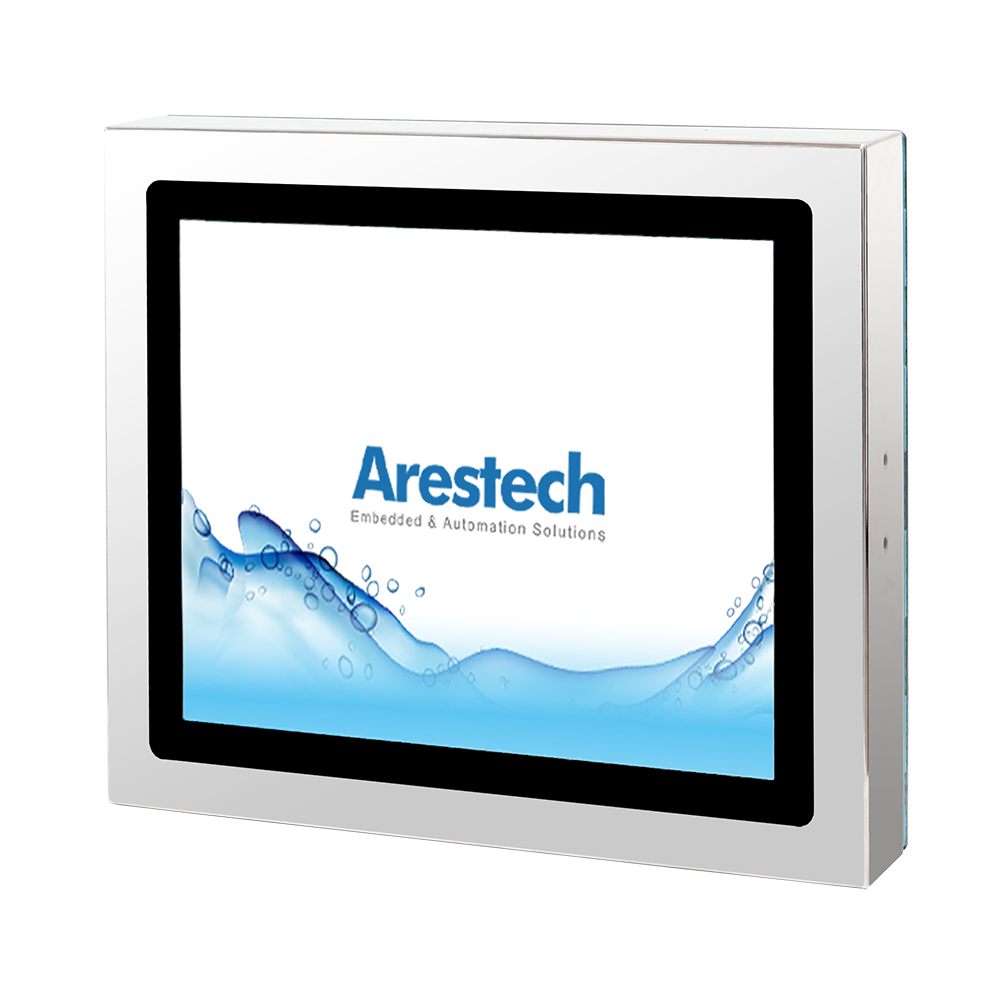

19" IP66/69K Waterproof Stainless Steel 316 5 Wire Resistive Touch Panel PC with kabylake-U Intel® Core™ i5-7200U Processor
  • Quote

  • Datasheet

  • Driver

特點

list_dot_01.png19” SXGA LCD Panel with Projected Capacitive Touch/ Resistive Touch
list_dot_01.pngStainless Steel SUS316, Full IP66/69K Waterproof
list_dot_01.pngSupport VESA Mounting and Yoke Mounting
list_dot_01.pngCompletely Flat Front Panel Design

應用

list_dot_01.pngFood & Beverage Processing Application
list_dot_01.pngHospitality and Catering Service
list_dot_01.pngPharmaceutical and Biopharmaceutical Equipment
list_dot_01.pngAnimal Feed Production Facility
list_dot_01.pngChemical, Gas & Oil Critical Environment

Model

PPC-Z197P-B61A2

PPC-Z197P-B62A2

PPC-Z197R-B61A2

PPC-Z197R-B62A2

Processor System

CPU

Intel® Core® i5-7200U

Intel® Core® i3-7100U

Intel® Core® i5-7200U

Intel® Core® i3-7100U

Frequency

Duad-Core up to 3.1 GHz

Duad-Core up to 2.4 GHz

Duad-Core up to 3.1 GHz

Duad-Core up to 2.4 GHz

L2 Cache

Intel® Smart Cache 3 MB

System Chipset

N/A

BIOS

UEFI

Memory

Technology

DDR4 2133 MHz SDRAM

Max. Capacity

32 GB

SocketSocket/ (On Board)

2, (260-pin SO-DIMM)

Display

Panel Size

19” LCD Panel

Aspect Ratio

4:3

Resolution

1280 x 1024 (SXGA)

Viewing Angle

85 x 85 (H) x 80 x 80 (V)

Brightness

350 (cd/m2)

Contrast Ratio

1000:1

VGA / HDMI / DP / DVI

N/A

Multi Display

LCD Panel

Touchscreen

Touchscreen Type

Projected Capacitive Touch

5-wire Resistive Touch

Surface Hardness

7 Mohs

3 Mohs

Durability

N/A

36 millions times

Transparency

90% (±3%)

80% (±3%)

I/O Interface

USB

4, 2 USB 3.0 , 1 x M12 for 2 USB2.0, M12 Connector

4, 2 USB 3.0 , 1 x M12 for 2 USB2.0, M12 Connector

Serial Port

2, COM (1 RS-232, 1 RS-232/422/485), M12 Connector

Digital I/O

N/A

Ethernet

2, GbE LAN ports (Intel® i219V and Intel® i211AT)

Others

N/A2

Expansion

miniPCIe/ M.2 Slot

1, Mini PCIe (Full-size); 1, M.2 E Key 2230 (USB/ PCIe x1)778

PCI/ PCIe Slot

N/A

Audio

Connector

N/A

Storage

HDD/SSD

N/A(by option)

mSATA/ M.2 / eMMC

1, M.2 M Key 2280 (SATA III / PCIe x4)

Power

Power On Model

AT/ATX

Power Supply Voltage

9~36 V DC input

Connector Type

M12 Connector

Power Consumption(Typical/Max.)

Typical:1.9A @ 12V (22.8W), Max:3.5A @ 12V (42W)

Battery

CR2032;3.3V

Mounting

VESA Mount

75mmx 75mm; 100mm x 100mm

Panel Mount

N/A

Others

Yoke Mount

Environment

Operating Temperature

-20~60° C (-4~140° F) w/ Extended Operation Temp. RAM & Storage

Storage Temperature

-40~85° C (-40~185° F)

Humidity

5~95% @ 40° C, non-condensing

Vibration

5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

Shock

20 G, IEC 60068-2-27, half sine, 11 ms duration

General

Certification

TBD

Thermal Dissipation

Fanless

Material, Surface Finish

Stainless steel 316, Brush polish

Ingress Protection

Full IP66/IP69K Protection

Dimensions (L x W x H)

499 X 420 X 66.9mm (16.65" X 16.54" X 2.63")

WeightNet Weight

10kg (22.04lb)

Operating System

Windows 10 IoT 64Bit, Linux kernal 4.0.x or above

Packing List
Description
1 x PPC-Z197


Ordering Information
Part No.
Description
PPC-Z197P-B61A2

19" 4:3 (1280 x 1024), 350nits, Stainless Steel 316 Full IP66/69K Protection, Fanless Panel PC with Intel® Core i5-7200U CPU, Projected Capacitive Touch, 4G RAM, 128G M.2, 2 USB 3.0, 1 x M12 for 2 USB2.0, 1 RS232, 1 RS-232/422/485, 2 GbE, DC 9-36 V (M12 Connector)

PPC-Z197P-B62A2
19" 4:3 (1280 x 1024), 350nits, Stainless Steel 316 Full IP66/69K Protection, Fanless Panel PC with Intel® Core i3-7100U CPU, Projected Capacitive Touch, 4G RAM, 128G M.2, 2 USB 3.0, 1 x M12 for 2 USB2.0, 1 RS232, 1 RS-232/422/485, 2 GbE, DC 9-36 V (M12 Connector)
PPC-Z197R-B61A2
19" 4:3 (1280 x 1024), 350nits, Stainless Steel 316 Full IP66/69K Protection, Fanless Panel PC with Intel® Core i5-7200U CPU, 5 Wire Resistive Touch, 4G RAM, 128G M.2, 2 USB 3.0, 1 x M12 for 2 USB2.0, 1 RS232, 1 RS-232/422/485, 2 GbE, DC 9-36 V (M12 Connector)
PPC-Z197R-B62A2

19" 4:3 (1280 x 1024), 350nits, Stainless Steel 316 Full IP66/69K Protection, Fanless Panel PC with IIntel® Core i3-7100U CPU, 5 Wire Resistive Touch, 4G RAM, 128G M.2, 2 USB 3.0, 1 x M12 for 2 USB2.0, 1 RS232, 1 RS-232/422/485, 2 GbE, DC 9-36 V (M12 Connector)



Optional Items
Part No.
Description
APW-60M12V-01
12V, 60W, 5A, 5-pin M12 Connector (US)
APW-60M12V-02
12V, 60W, 5A, 5-pin M12 Connector (EU)
AKT-USB2M12
M12 Connector to 2 port USB2.0 Cable, 2m
AKT-USB31M12
M12 Connector to USB3.0 Cable, 1.8m
AKT-COM2M12
M12 Connector to DB9 Cable, 2m
AKT-LAN2M12
M12 Connector to LAN Cable, 2m
AWD-WF006
wifi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 IP66 antenna(dual band), miniPCIe Half size
AWD-WF007
wifi 802.11 b/g/n (1T1R) + 1 IP66 antenna(dual band), Half size miniPCIe, for PPC Z-series
