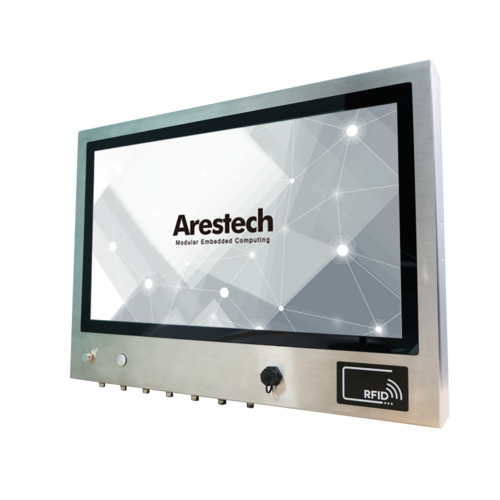

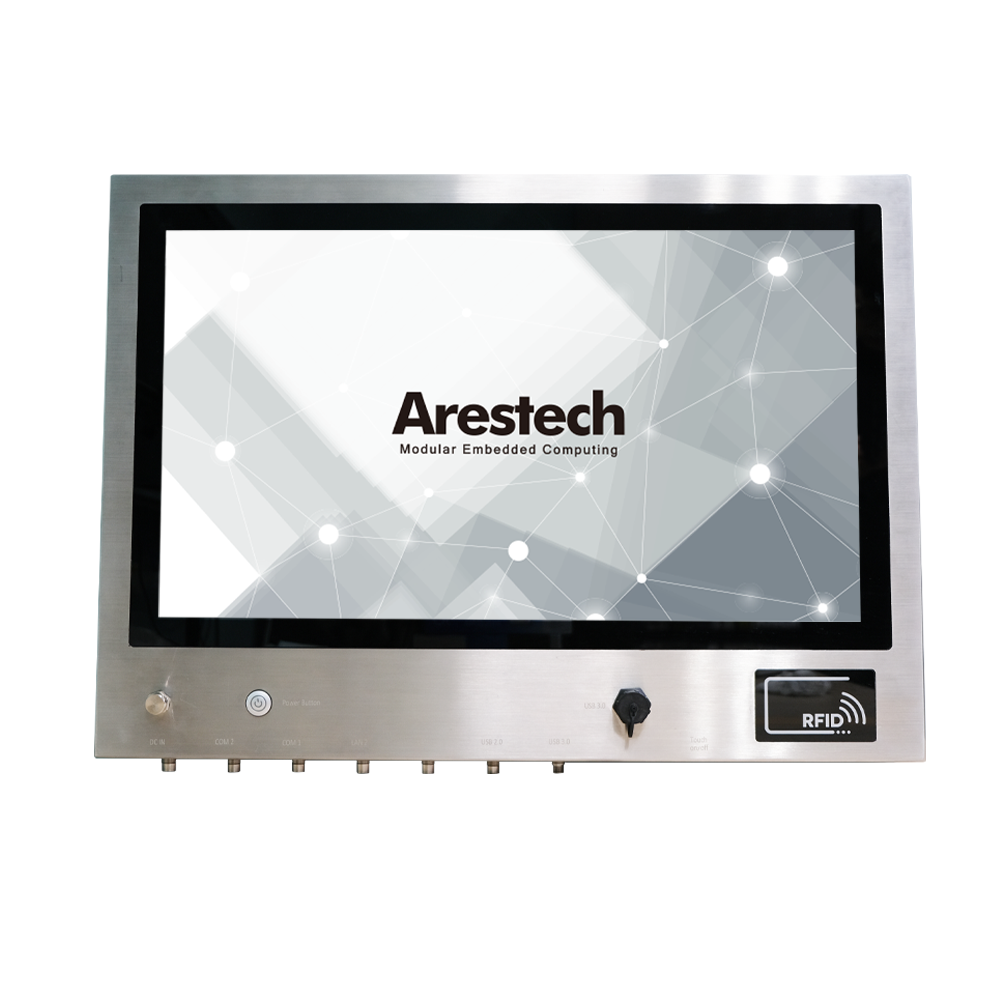

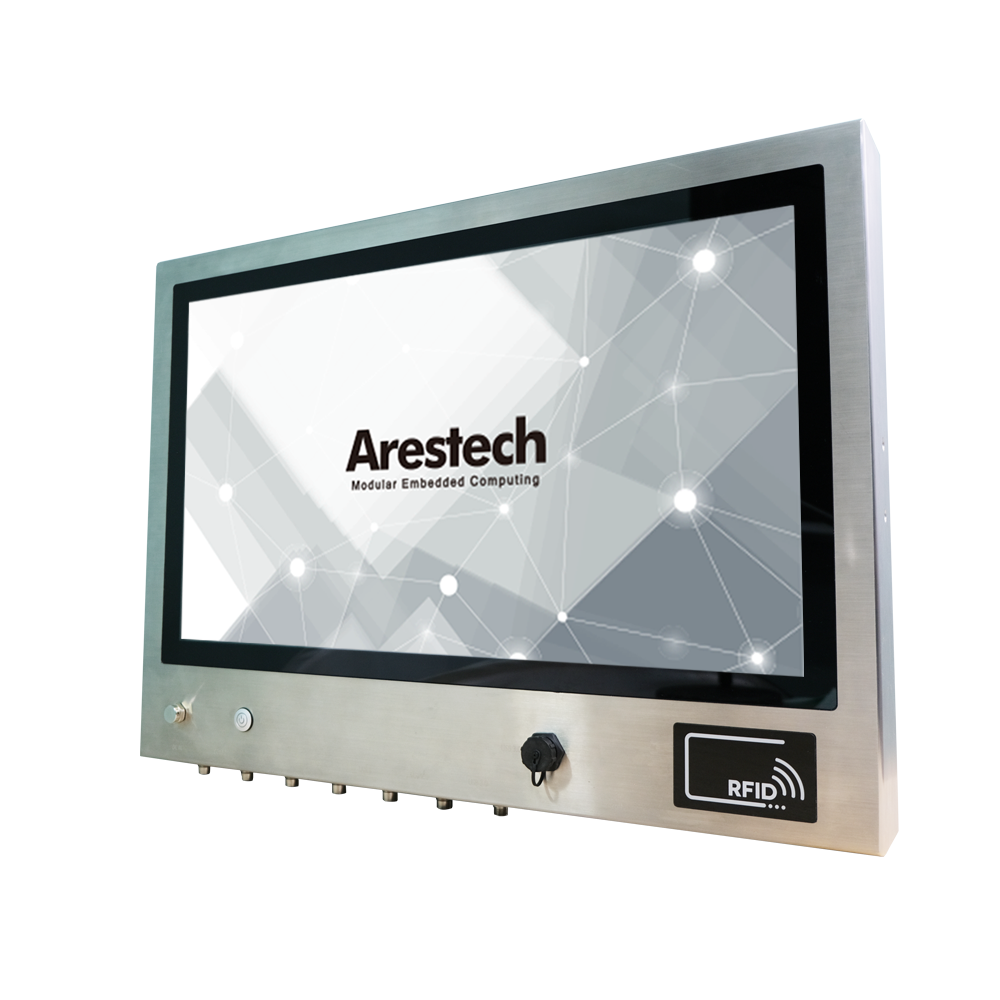

21.5” 1920 x 1080 Resolution, 250nits Panel
Intel® Celeron® J6412 onboard Processor
True Flat, Easy-to-clean Front Panel Design
Grade 304 Stainless Steel Enclosure (Grade 316 for option)
IP66/69K Rated with M12 Connectors
Support Projected Capacitive and Resistive Touchscreen
Support VESA, Yoke, and Wall Mounting
RFID Reader Supports Mifare® Cards
Food & Beverage Processing
Hospitality & Catering Service
Pharmaceutical Equipment
Animal Feed Production
Chemical Critical Environment
|
Model |
PPC-Z2164PW |
PPC-Z2164RW |
|
|
Processor System |
CPU |
Intel® Celeron® J6412 Processor |
|
|
Frequency |
up to 2.60GHz |
||
|
BIOS |
UEFI |
||
|
TPM |
fTPM |
||
|
Memory |
Technology |
Dual Channel DDR4 3200MHz (un-buffered and non-ECC) |
|
|
Max. Capacity |
Support up to 32GB |
||
|
Type |
2 x 260-pin SO-DIMM |
||
|
Panel |
Panel Type |
21.5" FHD LCD |
|
|
Aspect Ratio |
16:9 |
||
|
Resolution |
1920 x 1080 |
||
|
Brightness |
250cd/m² |
||
|
Color |
16.7M |
||
|
Contrast Ratio |
5000:1 |
||
|
Viewing Angle |
178 (H) x 178 (V) |
||
|
Backlight MTBF (typ.) |
30,000Hrs |
||
|
Touchscreen |
Touchscreen Type |
Projected Capacitive (P-CAP) |
5-wire Resistive |
|
Surface Hardness |
7Mohs |
3Mohs |
|
|
Transparency |
90% (±3%) |
80% (±3%) |
|
|
I/O Interface |
Ethernet |
2 x GbE (Intel® I210-AT) (M12 Connector) |
|
|
Serial Port |
2 x RS-232/422/485 (M12 Connector) |
||
|
USB |
2 x USB2.0 (from 1 x M12 Connector) 1 x USB3.2 Gen1 (M12 Connector) 1 x USB3.2 Gen1 (IP67 connector) |
||
|
Audio |
N/A |
||
|
Other |
RFID Reader (UID Reader only, CARD TYPE:ISO 18092 Felica, ISO 14443A Mifare® Class, Ultralight, Frequency: 13.56MHz) |
||
|
Storage |
2.5" SSD/HDD |
Internal 1 x 2.5” SSD/HDD |
|
|
M.2 |
Internal 1 x M.2 2280 M-Key (PCIe x2, SATA) |
||
|
Expansion |
Mini-PCIe |
1 x Full-Size Mini-PCIe with SIM slot (PCIe, USB2.0 and SIM) |
|
|
M.2 |
1 x M.2 2280 M-Key (PCIe x2, SATA) |
||
|
Power |
Power Mode |
AT/ATX |
|
|
Power Supply Voltage |
12~36V DC Input |
||
|
Power Connector Type |
M12 Connector |
||
|
Environment |
Operating Temperature |
-10°C ~ +60°C |
|
|
Storage Temperature |
-30°C ~ +70°C |
||
|
Humidity |
10% ~ 95%, Non-condensing |
||
|
Vibration |
2.16Grms, 5 - 500Hz, 0.5hr/axis |
||
|
Shock |
20G, half sine, 11ms |
||
|
General |
Certification |
CE/FCC Class A |
|
|
Ingress Protection |
Full System IP66/69K |
||
|
Material |
Full SUS304 Stainless Steel (Optional SUS316) |
||
|
Mounting |
VESA (100 x 100mm) / Yoke / Wall |
||
|
Dimensions (W x H x D) |
570 x 430 x 66.5mm |
||
|
Net Weight |
12.0kg |
||
|
Operating System |
Windows 10 IoT, Windows 11 (IoT/Professional), Linux |
||
Ordering Information
Part No.
Description
PPC-Z2164PW
21.5" 16:9 (1920 x 1080) FHD, 250nits, P-CAP Touch, Full Stainless Steel 304, Intel® Celeron® J6412, 1 x IP67 Front USB3.2, M12 Connectors (2 x GbE, 2 x RS-232/422/485, 1 x USB3.2, 1 x USB2.0 (x2), 12~36VDC), RFID Reader
PPC-Z2164RW
21.5" 16:9 (1920 x 1080) FHD, 250nits, 5-wire Resistive Touch, Full Stainless Steel 304, Intel® Celeron® J6412, 1 x IP67 Front USB3.2, M12 Connectors (2 x GbE, 2 x RS-232/422/485, 1 x USB3.2, 1 x USB2.0 (x2), 12~36VDC), RFID Reader
Packing List
Description
1 x PPC-Z2164PW/RW
Optional Items
|
Part No. |
Description |
|
APW-60M12V-01 |
Adapter AC/DC 12V 5A 60W with M12 Connector (US) |
|
APW-60M12V-02 |
Adapter AC/DC 12V 5A 60W with M12 Connector (EU) |
|
AKT-USB2M12 |
M12 Connector to 2-port USB2.0 Cable, 2m |
|
AKT-USB31M12 |
M12 Connector to USB3.0 Cable, 1.8m |
|
AKT-COM2M12 |
M12 Connector to DB9 Cable, 2m |
|
AKT-LAN2M12 |
M12 Connector to LAN Cable, 2m |
|
AWD-WF006 |
Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 IP66 Antennas (Dual Band), Half Size |
|
AWD-WF007 |
Wi-Fi 802.11 b/g/n/BT4.0 (1T1R) + 1 IP66 Antenna (Dual Band), Half Size |
|
ACS-Z215-SWM |
Stainless Steel 304 Wall Mount Kits, Thickness 3mm for PPC-Z21XX |
|
ACS-Z215-SYK |
Stainless Steel 304 Yoke Mount Kits, Thickness 3mm for PPC-Z21XX |
