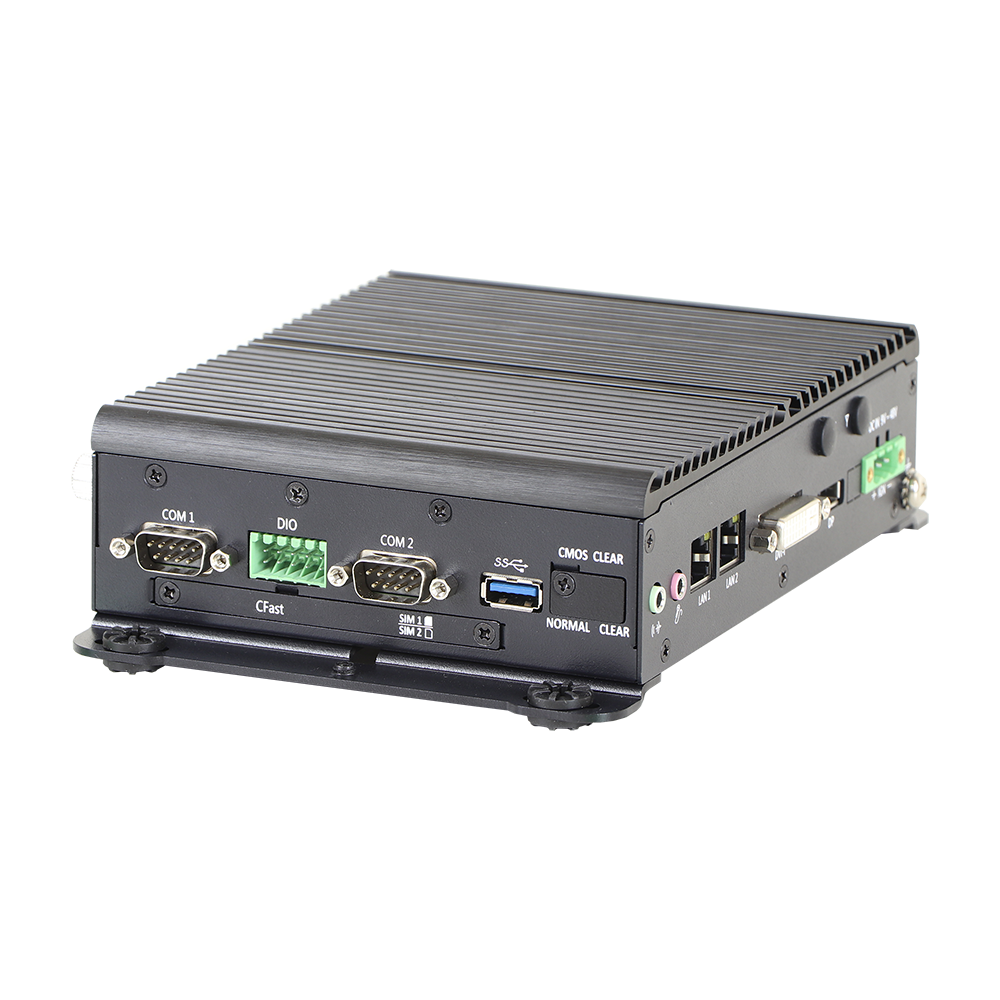

Rugged Box PC with Intel® Atom or Celeron® Processor
  • Quote

  • Datasheet

list_dot_01.pngIntel® Celeron® Processor J1900, up to 2.42GHz
list_dot_01.pngDual Displays Supported by DVI-I and DisplayPort
list_dot_01.png1 x DDR3L 1066/ 1333MHz SO-DIMM. Max up to 8GB
list_dot_01.png2 x Intel i210-AT GbE Ports,
   Supporting Wake-on-LAN and PXE
list_dot_01.png2 x Full-size Mini-PCIe, 2x SIM Socket
list_dot_01.png9~48V DC Input with Built-in Ignition Power Control
list_dot_01.png-40°C ~ 70°C Wide Temperature Operation
list_dot_01.pngDigital Signage Control Systems
list_dot_01.pngFactory Automation Applications
list_dot_01.pngImage Processing (e.g. Medical 2D and 3D imaging)
list_dot_01.pngGaming and Entertainment Industries
list_dot_01.pngNetwork Communications
Model MERA-2000 MERA-2010 MERA-2011
Processor System CPU Intel® Celeron® Processor J1900
System Chipset N/A
BIOS AMI B IOS, 64Mbit SPI Flash ROM Built on Board
Memory Technology Single channel DDR3L 1066/1333 MHz SO-DIMM
Max. Capacity 8 GB (un-buffered and non-ECC)
Socket 1 x DDR3L 204-pin SO-DIMM
Display Graphics Engine Integrated Intel® HD Graphics
DVI-D 1 x DVI-I (DVI-D+VGA), Resolution 1920*1200
Display Port
1 x DP (3840*2160)
Multi Display
I/O Interface USB 5 (1 x USB3.0, 4 x USB2.0)

2 x COM (RS-232/422/485), with Auto Flow Control, DB9

GPIO 4 x Isolated DI and 4 x Isolated DO Port, 10-Pin Terminal Block
2 x GbE (2 x Intel® i210-AT GbE LAN Ports, Supporting Wake-on-LAN and PXE)
Lin out, Mic in
CMOS Battery 1 x External Clear CMOS Switch
Universal I/O Bracket
1 x Universal I/O Bracket
1 x Universal I/O Bracket
miniPCIe/ M.2 Slot
1 x Full-size Mini-PCIe Socket(mux with mSATA), 1 x Full-size Mini-PCIe
SIM socket
2 x External SIM Socket
Antenna Hole
6 x Antenna Holes
4 x Antenna Holes 4 x Antenna Holes
PCI/ PCIe Slot
HDD/SSD 1 x Removable 2.5" SATA HDD Bay
1 x Removable 2.5" SATA HDD Bay
2 x Removable 2.5" SATA HDD bay
CFast Socket
1 x CFast Socket (Shared by mSATA)
mSATA/M.2 1 x mSATA Socket (Shared by 1x Mini-PCIe and CFast)
Power On Model AT/ATX
Power Supply Voltage Power Supply: 9~48V DC (Power Ignition Sensing)
Power Connector Type
1 x 3-pin Terminal Block Connector
Power Consumption (Max.) Max: 1.66A @ 12 V (20W)
Battery CR2032; 3.3V
Power Connector Type 1 x AT/ATX Mode Switch
Over Voltage Protection (OVP) Up to 52V
Reverse Voltage Protection (RVP) up to -48V
Over Current Protection (OCP) 20A
Car Mode 1 x PC/Car Mode Switch
Mounting Type Wall Mounting/DIN-Rail Mounting (Optional)
Operating Temperature -40°C to 70°C (with Industrial Grade Peripherals)
Storage Temperature -40°C to 80°C
Humidity 10%~95% (Non-condensing)
5 Grms, 5-500 Hz, 3 Axis
50 Grms, Half-sine 11 ms
General Certification CE/FCC
Thermal Dissipation Fanless System
Extruded Aluminum with Heavy Duty Metal
Dimensions (W x H x D)

168 x 47 x 135 mm
(6.61" x 1.85" x 5.31")

168 x 61 x 135 mm
(6.61" x 2.40" x 5.31")

168 x 76 x 135 mm
(6.61" x 2.99" x 5.31")

Net Weight 1.1 kg (2.43Ib) 1.15 kg (2.54Ib)
1.45 kg (3.20Ib)
Operating System Windows 10 (IoT / Professional), Linux

Packing List

 1 x MERA-2000 Series Machine
 1 x DVI to VGA Adapter
 1 x Wall Mount Kit
Ordering Information

Part No. Description
MERA-2000 Intel® J1900 Compact fanless box pc with 2x LAN, 1x USB 3.0, 4x USB2.0, 2x RS232/422/485, 1x DVI-I, 1x DP, Lin out, Mic in, 1x Removable 2.5” SATA HDD Bay
Intel® J1900 Rugged Box PC with 2x LAN, 1x USB 3.0, 4x USB2.0, 2x RS232/422/485, 1x DVI-I, 1x DP, Lin out, Mic in, 1x Universal I/O Bracket, 1x Removable 2.5” SATA HDD Bay
MERA-2011 Intel® J1900 Rugged Box PC with 2x LAN, 1x USB 3.0, 4x USB2.0, 2x RS232/422/485, 1x DVI-I, 1x DP, Lin out, Mic in, 1x Universal I/O Bracket, 2x Removable 2.5” SATA HDD Bays
Optional Items

Part No.
4G(LTE) EG25-G+ 2 antenna, Full size (for global)
Wi-Fi 802.11 bgn (1T1R) +1 Antenna (Single band), Half-size mini PCIe
Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R)+ 2 antenna(dual band), mini PCIe Half size
2107-2330-X10 DIN-RAIL Mount Kit
Adapter 12V/ 5A 60W
Power Cord, 3-pin US Type, 180cm
30101-0005-CA Power Cord, European Type, 180cm
