Automation Panel PC

PPC-J213RW

PPC-J213RW

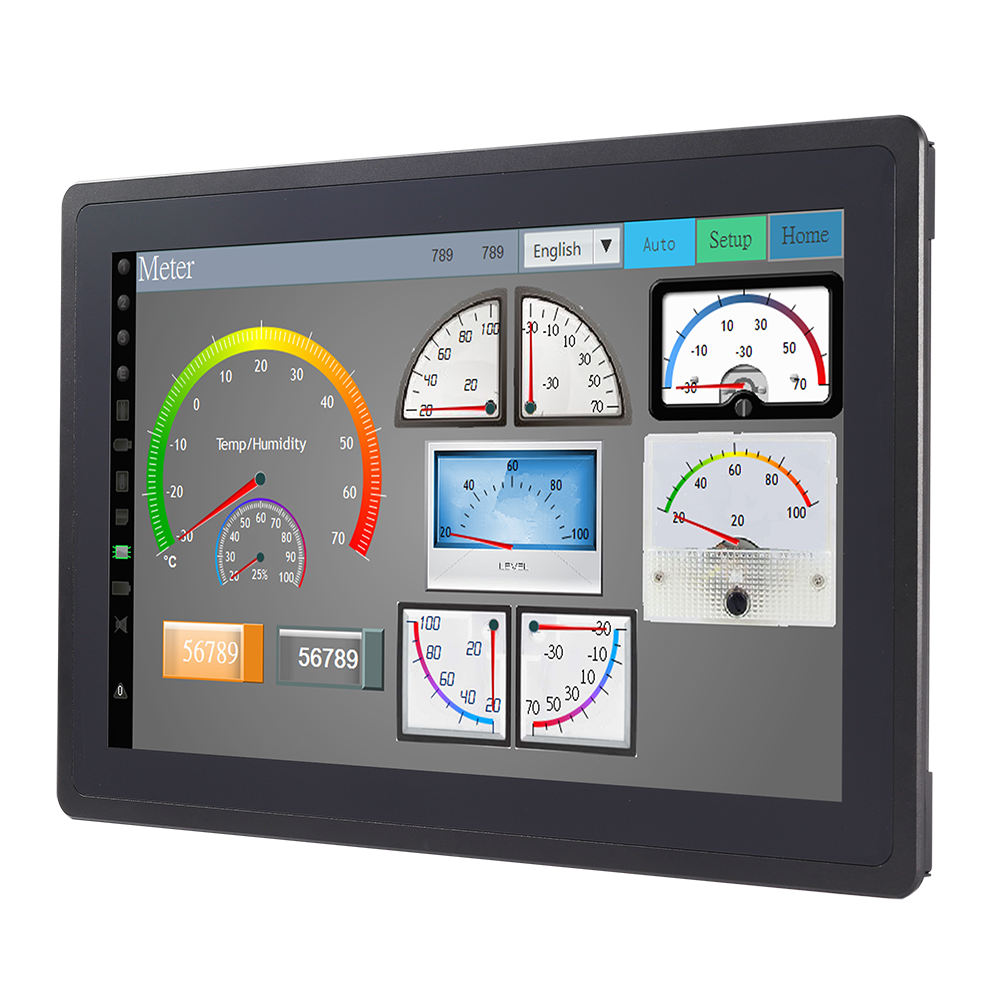

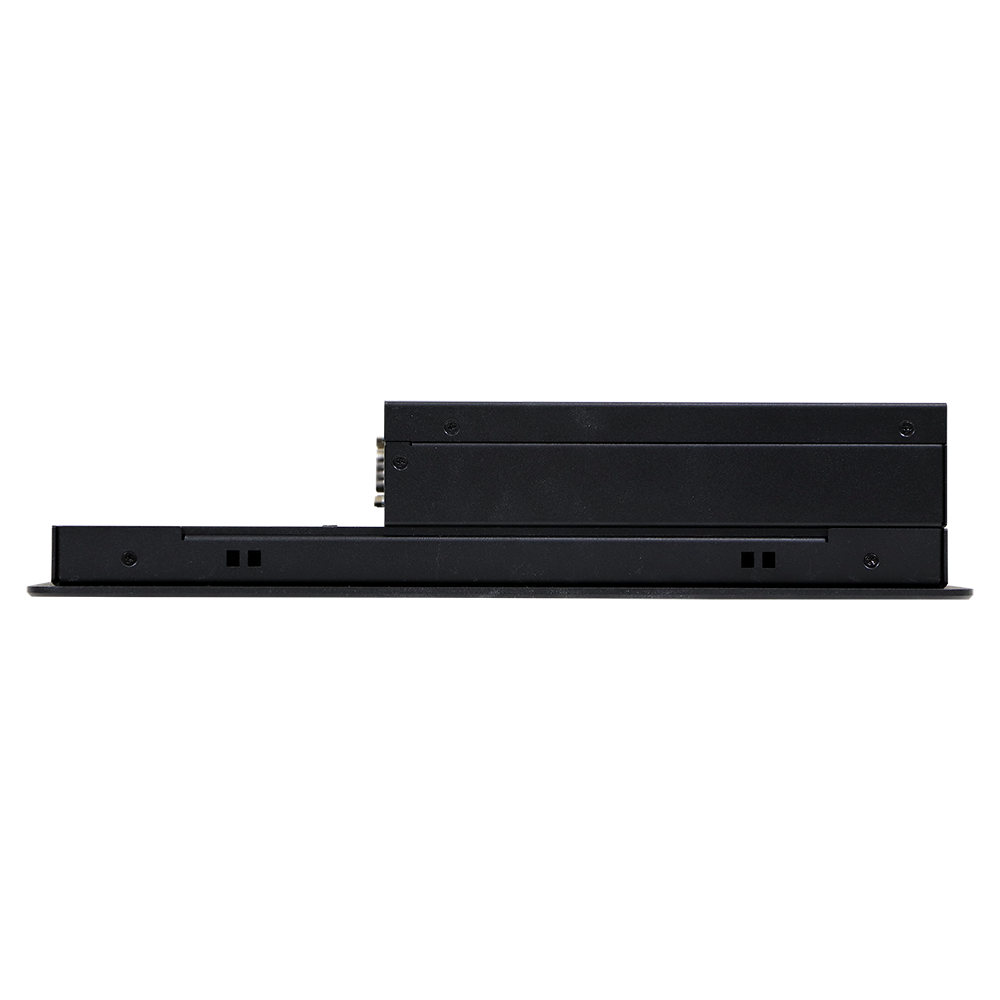

21.5”True Flat Fanless Aluminum IP65 Protection Touch Panel PC with Intel® Pentium®N4200/ Celeron® N3350 Processor

  • Quote

  • Datasheet

特點

list_dot_01.png21.5”Full HD LCD Panel with 5 Wired Resistive Touch Display
list_dot_01.pngEmbedded Intel® Pentium® N4200/ Celeron® N3350
list_dot_01.pngSystem Memory up to 8 GB DDR3L 1866 SDRAM
list_dot_01.pngTrue Flat Aluminum Front Cover IP65 Protection
list_dot_01.pngInternal SATA 2.5” HDD and M.2 Socket
list_dot_01.pngPanel and VESA Mounting

應用

list_dot_01.pngHuman Machine Interface (HMI)
list_dot_01.pngFactory / Manufacturing Automation
list_dot_01.pngATM / Self-service / Kiosk Applications
list_dot_01.pngVending Machine / Ticketing Machine
Model PPC-J213RW-1A1 PPC-J213RW-2A1
Processor System CPU Intel® Pentium® N4200
Intel® Celeron® N3350
Frequency Quad-Core up to 2.5GHz Dual-Core up to 2.4GHz
L2 Cache
2 MB
System Chipset
N/A
BIOS UEFI
Memory Technology DDR3L 1866 MHz SDRAM
Max. Capacity 8 GB
Socket/ (On Board) 2, (260-pin SO-DIMM)
Display Panel Size 21.5” Panel
Aspect Ratio
16:9
Resolution
1920 x 1028 (FHD)
Viewing Angle 85 x 85 (H) x 80 x 80 (V)
Brightness 250 (cd/m2)
Contrast Ratio 1000:1
VGA / HDMI / DP / DVI
1,VGA, 1920 x 1200 @ 60Hzz/ 1,HDMI 1.4b, 1920 x 1200 @ 60Hz
Multi Display
LCD + VGA or LCD + HDMI
Touchscreen Touchscreen Type 5-Wire Resistive
Surface Hardness

3 Mohs

Durability 36 millions times
Transparency
80% (±3%)

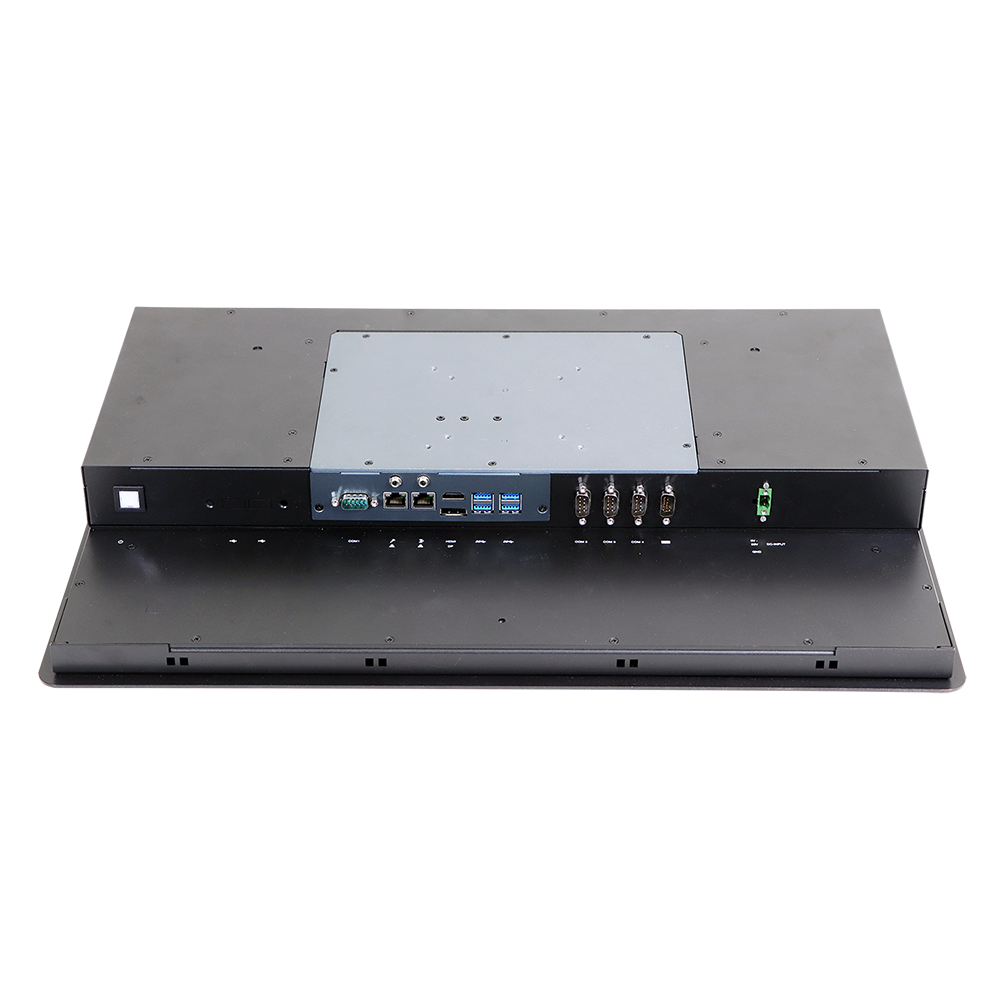

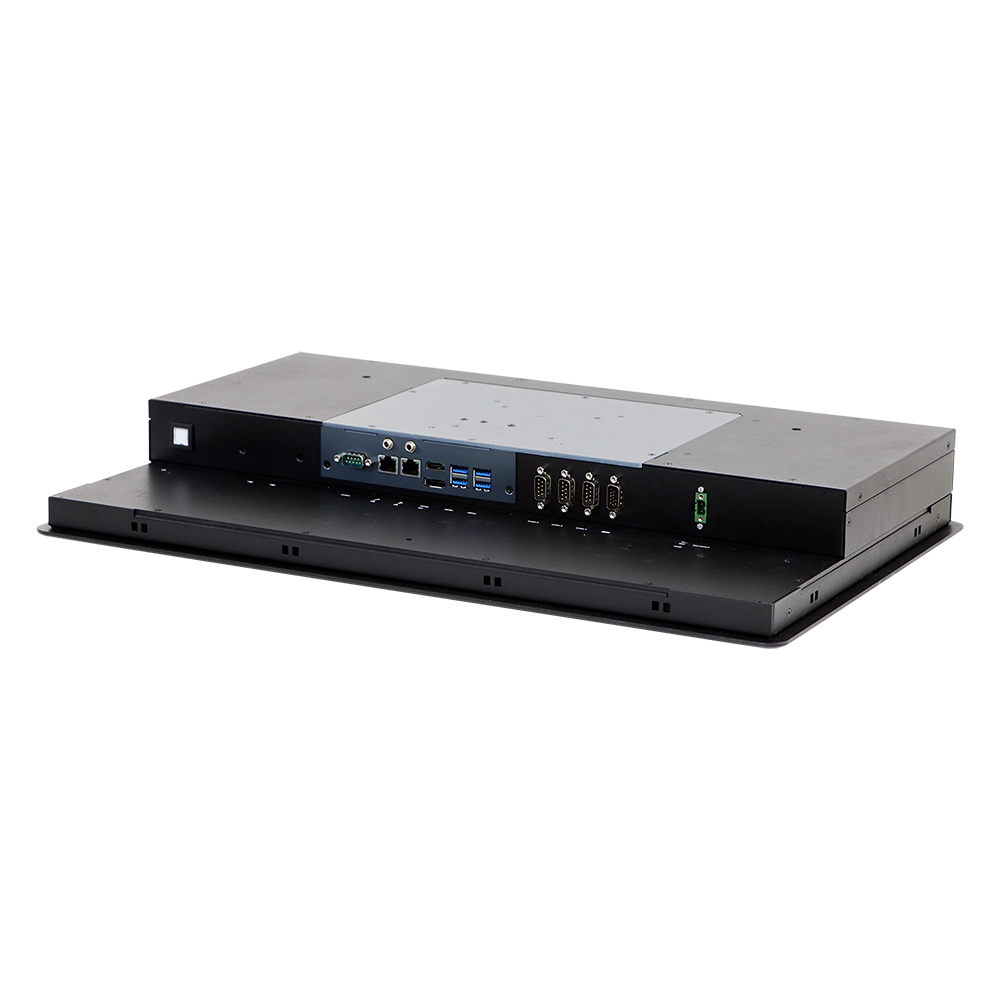

I/O Interface
USB
2, USB 3.0
Serial
4, COM (3 RS-232, 1 RS-232/422/485)
Digital I/O
1, 8-pin Digital I/O (DB-9 connector)
Ethernet
Dual GbE, 10/100/1000 Mbps (Intel i219V, i211AT)
Others
-
Expansion
miniPCIe/ M.2 Slot
-
PCI/ PCIe Slot
-
Audio Connector Line out, Realtek High Definition Audio (HD)
Storage HDD/SSD 1, Internal 2.5” HDD/SSD
mSATA/ M.2 / eMMC Supports 1 M.2 B/M Key 2242
Power
Power On Model AT/ATX
Power Supply Voltage Supports 9-36 V DC input
Connector Type 2-pin Terminal Block
Power Consumption(Typical/Max.)
Typical:17.5W@12V(1.46A), MAX:61.5W@12V(5.125A)
Battery CR2032;3.3V

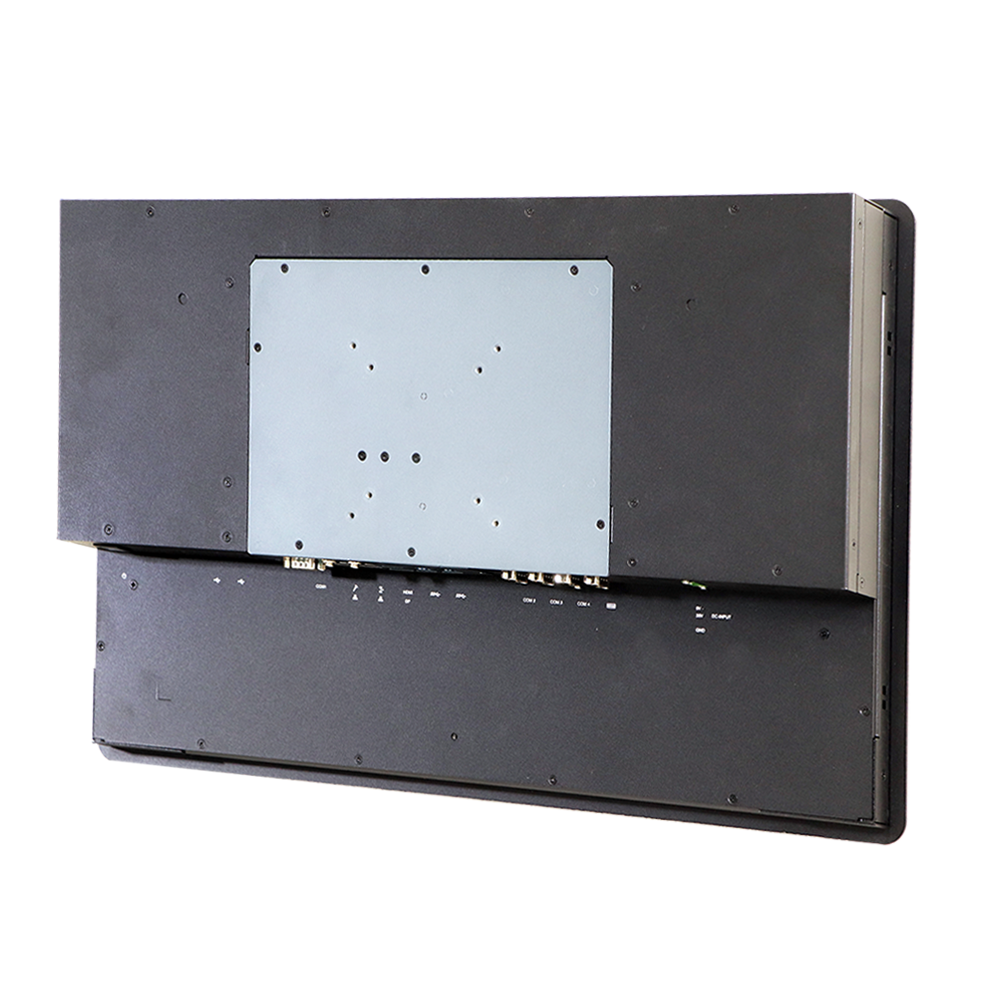

Mounting VESA Mount 75mmx 75mm; 100mm x 100mm
Panel Mount
Cut out 544.4mm x 336.3mm, Thickness range under 7mm
Others
-
Environment
Operating Temperature -20~60° C (-4~140° F) w/ Extended Operation Temp. RAM & 2.5” SSD
Storage Temperature -40~85° C (-40~185° F)
Humidity 5~95% @ 40° C, non-condensing
Vibration
1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes
Shock
20 G, IEC 60068-2-27, half sine, 11 ms duration
General Certification TBD
Thermal Dissipation Fanless
Material, Surface Finish Aluminum Front Cover
Ingress Protection Front Cover IP65 Protection
Dimensions (W x H x D) 561.8 x 352.76 x 73.55mm (22.12"x13.89"x2.90")
Net Weight 8.1kg(17.85Ib
Operating System Windows 10 IoT 64Bit, Linux kernal 4.0.x or above


Packing List
Description
1 x PPC-J213RW
1 x Power Adapter
1 x Power Cord
12 x Panel Mounting Screws

Ordering Information
Part No.
Description
PPC-J213RW-1A1
21.5” Fanless 5-wire Resistive Touch Panel PC with Intel® Pentium® N4200, 2 DDR3L, 2 GbE, 2 USB 3.0, 2 USB 2.0, 3 RS-232, 1 RS-232/422/485, 8bits GPIO, line out, mic in,1 VGA,1 HDMI, DC 9~36V, Phoenix Connector
PPC-J213RW-2A1
21.5” Fanless 5-wire Resistive Touch Panel PC with Intel® Celeron® N3350, 2 DDR3L, 2 GbE, 2 USB 3.0, 2 USB 2.0, 3 RS-232, 1 RS-232/422/485, 8bits GPIO, line out, mic in,1 VGA, 1 HDMI, DC 9~36V, Phoenix Connector

Optional Items
Part No.
Description
AWD-WF001
wifi 802.11 b/g/n (1T1R) + 1 antenna , Half size
AWD-WF003
wifi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 antenna(dual band), Half size
AWD-3G002
3G UC20-G (HSPA+) + 1 antenna, Full size with SIM socket
AWD-4G001
4G(LTE) EC20-E+ 2 antenna, Full size with SIM socket
AWD-4G002
4G(LTE) EC25-J+ 2 antenna, Full size with SIM socket
