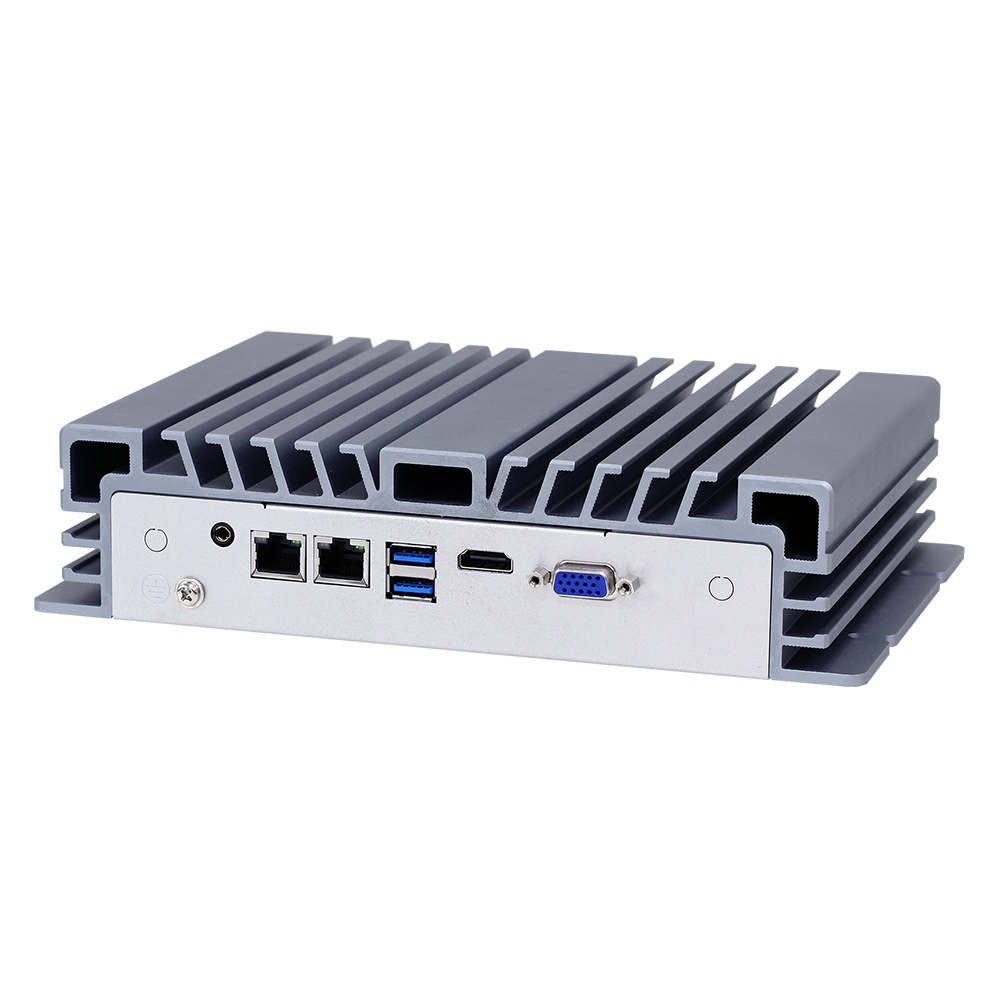

BPC-3040

BPC-3040

ATOM E3940 Apollo Lake Fanless Embedded Box PC with 32bit Digital IO, support -30~70°C

首頁 » 產品介紹 » 嵌入式電腦 » BPC-3040
  • Quote

  • Datasheet

特點

list_dot_01.pngApollo Lake Intel® ATOM x5-E3940 Processor
list_dot_01.png32 bits Programmable Digital IO, Dual LAN, 4 USB & 3 COM Ports

list_dot_01.pngSupport VGA & HDMI up to 4K Resolution
list_dot_01.pngSupport -30~70°C Operation Temperature
list_dot_01.png2 MiniPCIe (for LTE/NBIoT & Wifi Module)

應用

list_dot_01.pngEmbedded Control Systems
list_dot_01.pngFactory Automation Applications
list_dot_01.pngIntelligent Transportation System
list_dot_01.pngMachine Automation
Model BPC-3040-1A1 BPC-3040-2A1
Processor System CPU Intel® ATOM™ x5-E3940
Frequency Quad-Core 1.6GHz
Cache Intel® Smart Cache 2 MB
System Chipset N/A
BIOS UEFI
Memory Technology Dual Channel DDR3L 1867 MHz SDRAM
Max. Capacity 16 GB
Socket 2 x 204-pin SO-DIMM
Display Graphics Engine Intel® HD Graphics 4400
Video Output  1 VGA up to 1920 x 1200@60Hz; 1 HDMI up to 4096 x 2160@24Hz
Dual Display VGA + HDMI
I/O Interface USB 2 USB 3.0, 4 USB3.0 2 USB 3.0 2 USB 2.0
Serial Port

3 RS-232, 1 RS-232/422/485

2 RS-232, 1 RS-232/422/485
Digital I/O N/A 32bit Digital I/O
Ethernet Controller Dual GbE, Intel i210 10/100/1000 Mbps Dual GbE, intel i210 10/100/1000 Mbps
Audio Chipset Realtek High Definition Audio (HD)
Connectors Line out, Mic in
Expansion Mini PCIe 2 Full-size (share with mSATA) 1 Full-size (shared with mSATA)
Storage SATA 2.5” HDD / SSD, SATA III (Max. data transfer rate 6.0Gb/s)
mSATA 1 mSATA share with miniPCIe  1 mSATA shared with miniPCIe
Power Power Type AT / ATX
Power Supply Voltage 9-36 V DC input 6.7-1.7 A
Connector TypePower Adaptor 2-Pin Terminal Block, Phoenix Connector
Power Consumption (Typical) 0.77 A @ 12 V (9.2 W) 0.783 A @ 12 V (9.4 W)
Power Consumption (Max) 1.67 A @ 12 V (14 W) 1.25 A @ 12 V (15 W)
Environment Operational -30~70° C (-22~158° F) (Humidity: 60° C @ 80% RH Non-condensing) w/ Extend Temp. RAM & SSD
Non-Operational -40~85° C (-40~185° F) (Humidity: 50° C @ 95% RH Non-condensing)
Vibration 5 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ SSD only)
1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ 2.5” HDD)
Shock 50 G, IEC 60068-2-27, half sine, 11 ms duration (w/ SSD only)
20 G, IEC 60068-2-27, half sine, 11 ms duration (w/ 2.5” HDD)
Certificate Certification TBD
General Dimensions
(W x H x D)
238 x 55 x 165 mm (9.37” x 2.16” x 6.5”)
Weight 1.78 kg (3.921 Ib) 1.8 kg (3.96 lb)
Operating System Windows 10 IoT, Linux


Packing List
Description
1 x BPC-3040
1 x Driver CD
1 x Power Adapter


Ordering Information
Part No.
Description

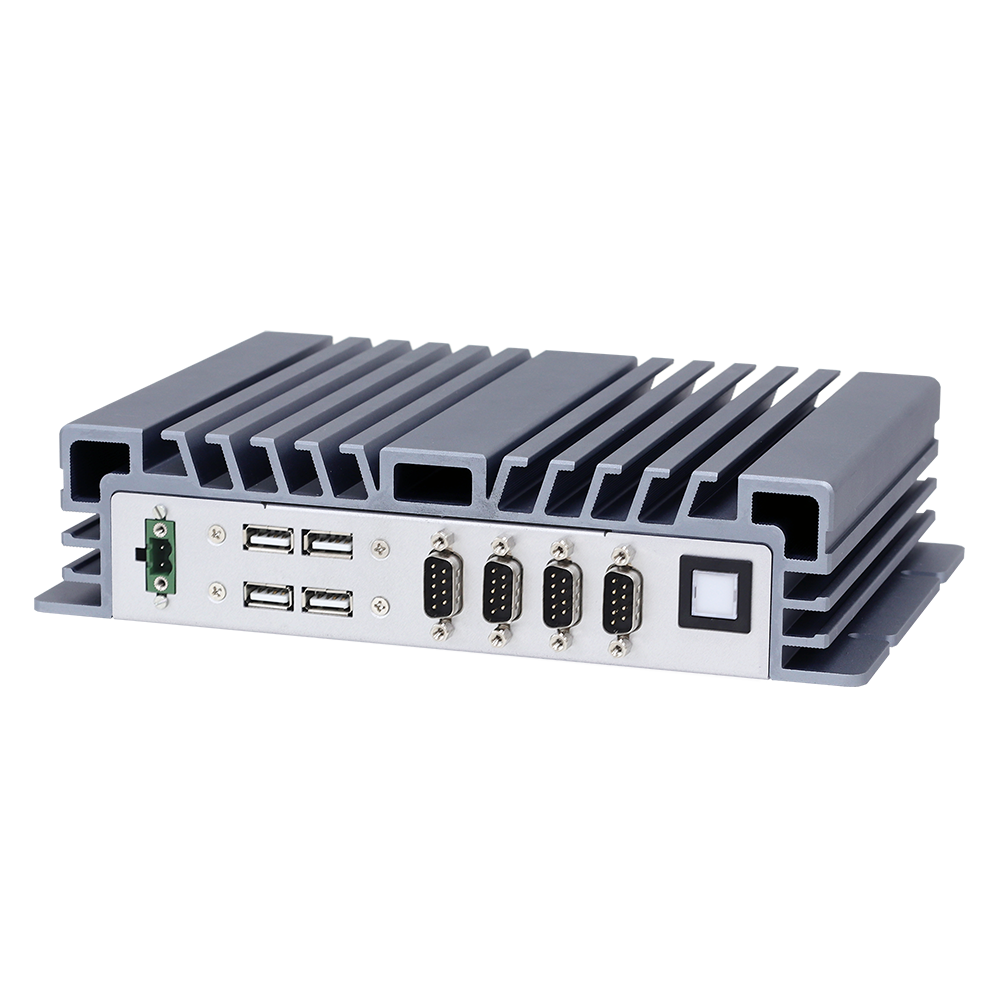

BPC-3040-1A1
Intel® ATOM™ x5-E3940 1.6GHz, 2 DDR3L, 2 USB3.0, 4 USB2.0,3 RS-232, 1 RS-232/422/485, 2 GbE, Line out, Mic in, 1 VGA 1 HDMI,  DC 9~36V

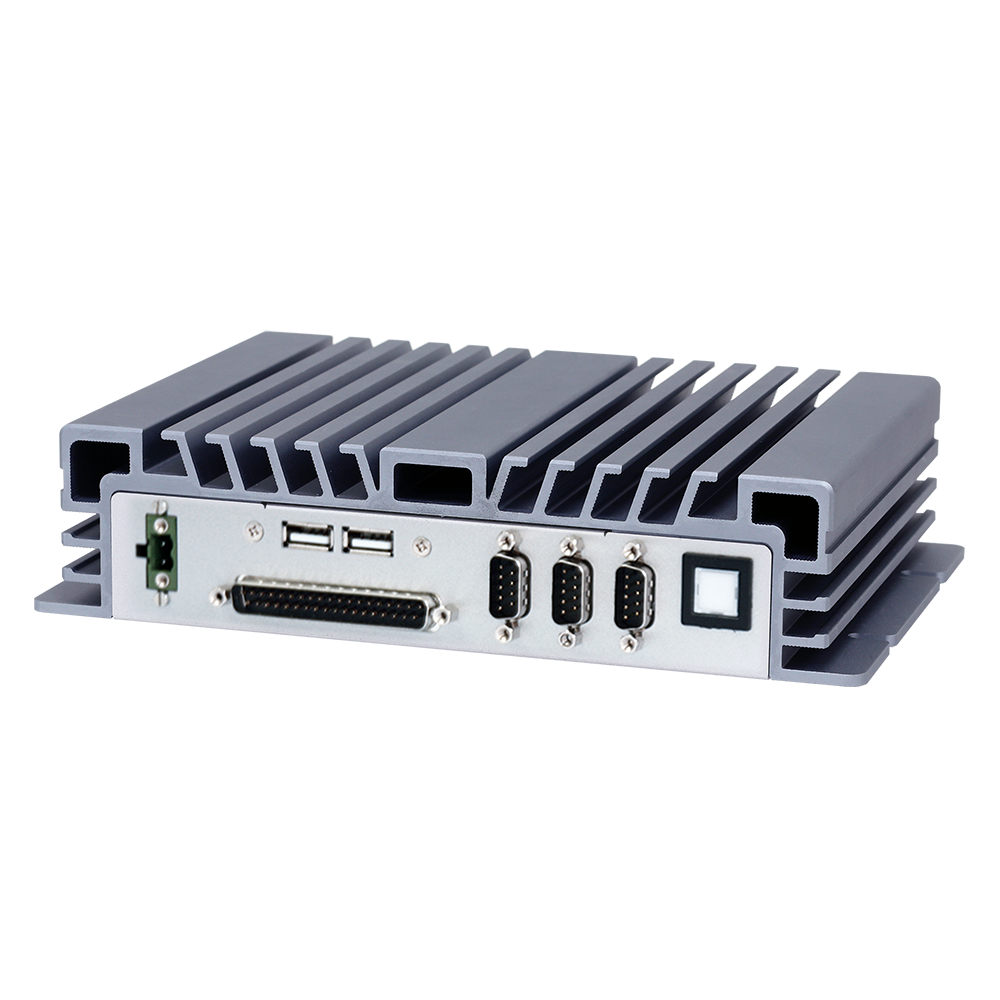

BPC-3040-2A1
Intel® ATOM™ x5-E3940 1.6GHz 2 DDR3L, 2 USB3.0 2 USB2.0, 2 RS-232, 1 RS-232/422/485, 2 GbE, Line out, Mic in, 32bit DIO, 1 VGA 1 HDMI, DC 9~36V


Optional Items
Part No.
Description
AWD-3G001 3G (HSPA+) + 1 Anteanna, Full Size miniPCIe
AWD-4G001
4G LTE Module + 2 Antennas, Full Size miniPCIe
AWD-WF001
WiFI 802.11 b/g/n (1T1R) + 1 Antenna, Half Size miniPCIe
AWD-WF002
WiFi 802.11 b/g/n /BT4.0 (1T1R) + 1 Antenna, Half Size miniPCIe
AWD-WF003 WiFi 802.11 abgn/ac/ BT4.0 (2T2R) + 2 Antennas, Half Size miniPCIe
