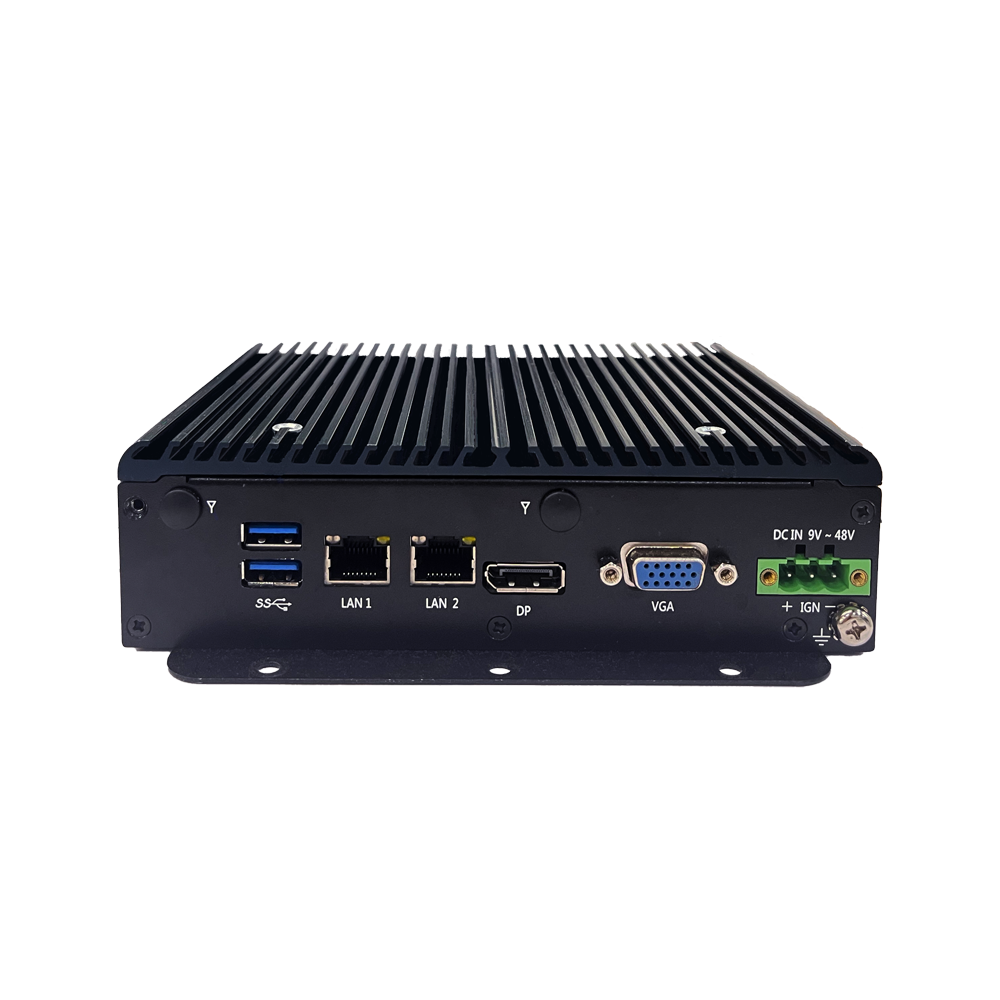

PM-2100

Model

PM-2100

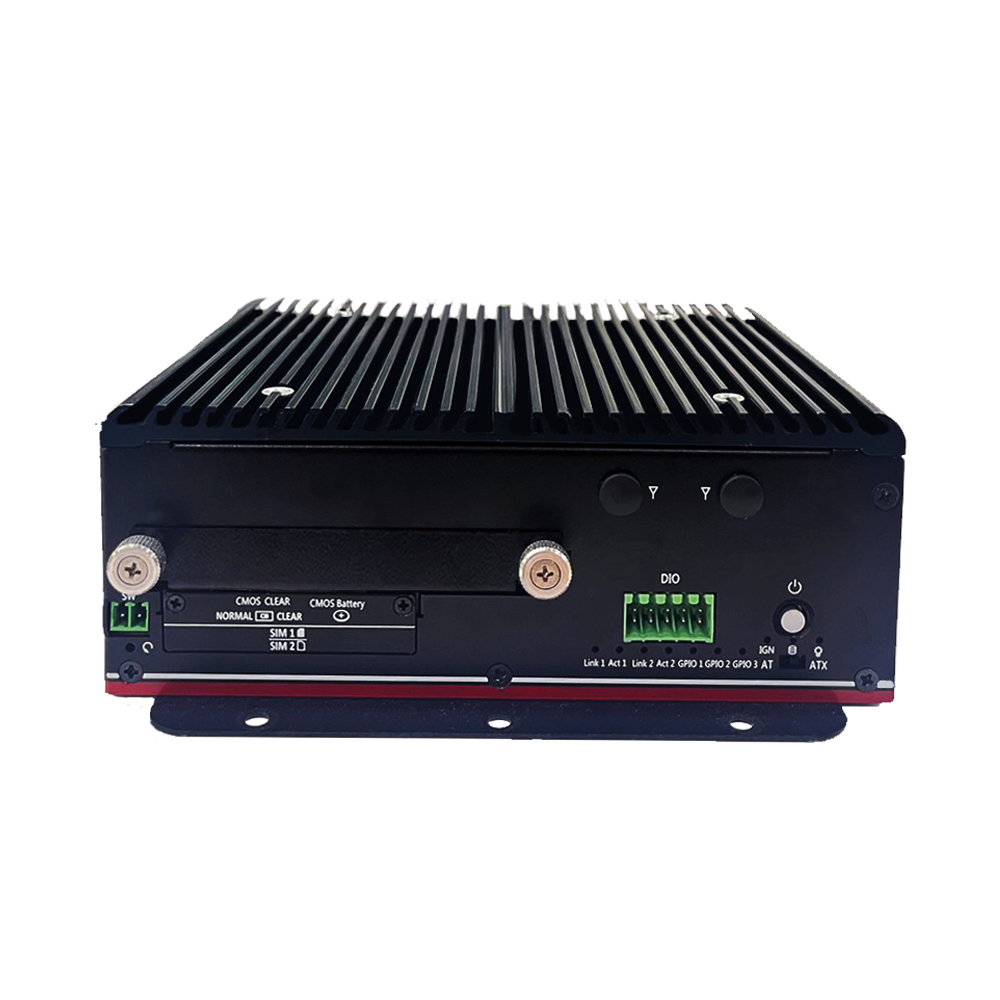

PM-2110S

Processor System

CPU

Intel® Pentium® N4200, 2.5GHz

Frequency

up to 2.50 GHz

System Chipset

N/A

BIOS

AMI BIOS, 128Mbit SPI Flash

TPM

TPM 2.0

Memory

Technology

Single Channel DDR3L-1866MHz 204-Pin SO-DIMM Socket

Max. Capacity

Support up to 8GB (un-buffered and non-ECC)

Display

Graphics Engine

Intel® HD Graphics 505

Multiple Display

3

VGA

1 x VGA, Max Resolution 1920 x 1200

DP

1 x DisplayPort 1.2a, Max Resolution 4096 x 2160

HDMI

1 x HDMI 1.4b, Max Resolution 4096 x 2160 (Optional)

I/O Interface

USB

2 x USB3.2 (Gen1), 2 x USB2.0

Serial Port

2 x RS232/422/485

6 x RS232/422/485

Ethernet

2 x GbE Intel® I210-AT, RJ45

Audio

1 x Line-out, 1 x Mic-in

GPIO / DIO

Isolated DI x 4 and DO x 4, 2 x 5-pin Terminal Block

CMOS Battery

1 x Removable CMOS Battery and 1 x Removable Clear CMOS Switch

Antenna Hole

4

Flexible I/O Window

0

1

Storage

2.5" HDD / SSD

1 x Removable 2.5" SATA HDD Bay

mSATA

1 x mSATA (Shared by 1 x Mini PCIe)

Expansion

Mini-PCIe

1 x Full-size Mini PCIe Socket (PCIe, USB2.0 and SIM)

1 x Full-size Mini PCIe Socket (SATA, USB2.0 and SIM) (Shared by 1 x mSATA)

SIM Holder

2 x SIM Holders

Power

Power Mode

AT/ATX

Power Supply Voltage

9~48V DC Input with Ignition Control

Power Connector Type

1 x 3-pin Terminal Block Connector

Power Adapter (Optional)

AC/DC, 12V/5A 60W

Car Mode

1 x PC/Car Mode Switch

1 x Delay Time Switch

Protection

Over Voltage Protection (OVP) up to 52V

Over Current Protection (OCP) up to 20A

Reverser Voltage Protection (RVP) up to -48V

Environment

Operating Temperature

-40°C ~ 70°C

Storage Temperature

-40°C ~ 80°C

Humidity

10%~90%, Non-condensing

Vibration

5Grms, 5-500Hz, 3Axis

Shock

50Grms, Half-sine 11ms

General

Certification

CE/FCC Class A

Thermal Dissipation

Fanless system

Material

Extruded Aluminum with Heavy Duty Metal

Mounting

VESA Mounting (100 x 100mm)

Dimensions (W x D x H)

168 x 135 x 47mm

168 x 135 x 63 mm

Net Weight

1.1kg

1.45kg

Operating System

Windows 10 IoT, Windows 11 (IoT / Professional), Linux
