BPC-5070

BPC-5070

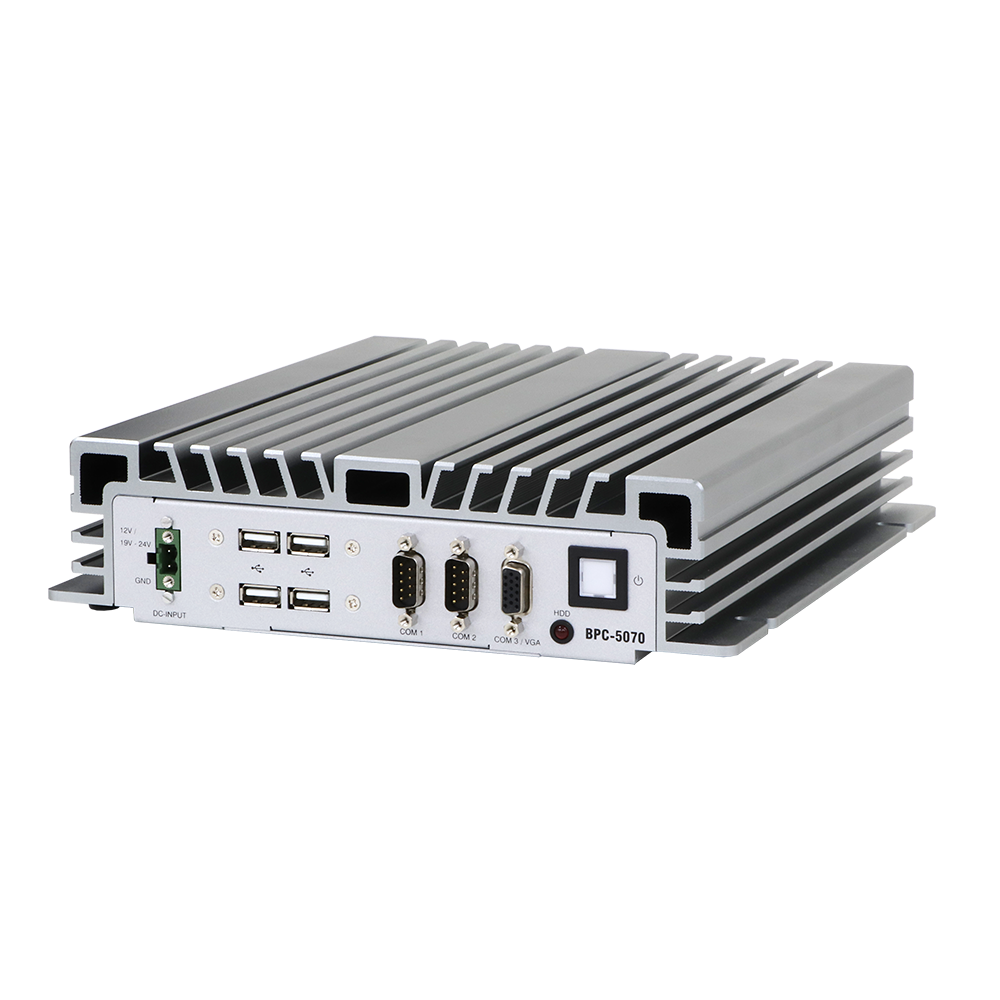

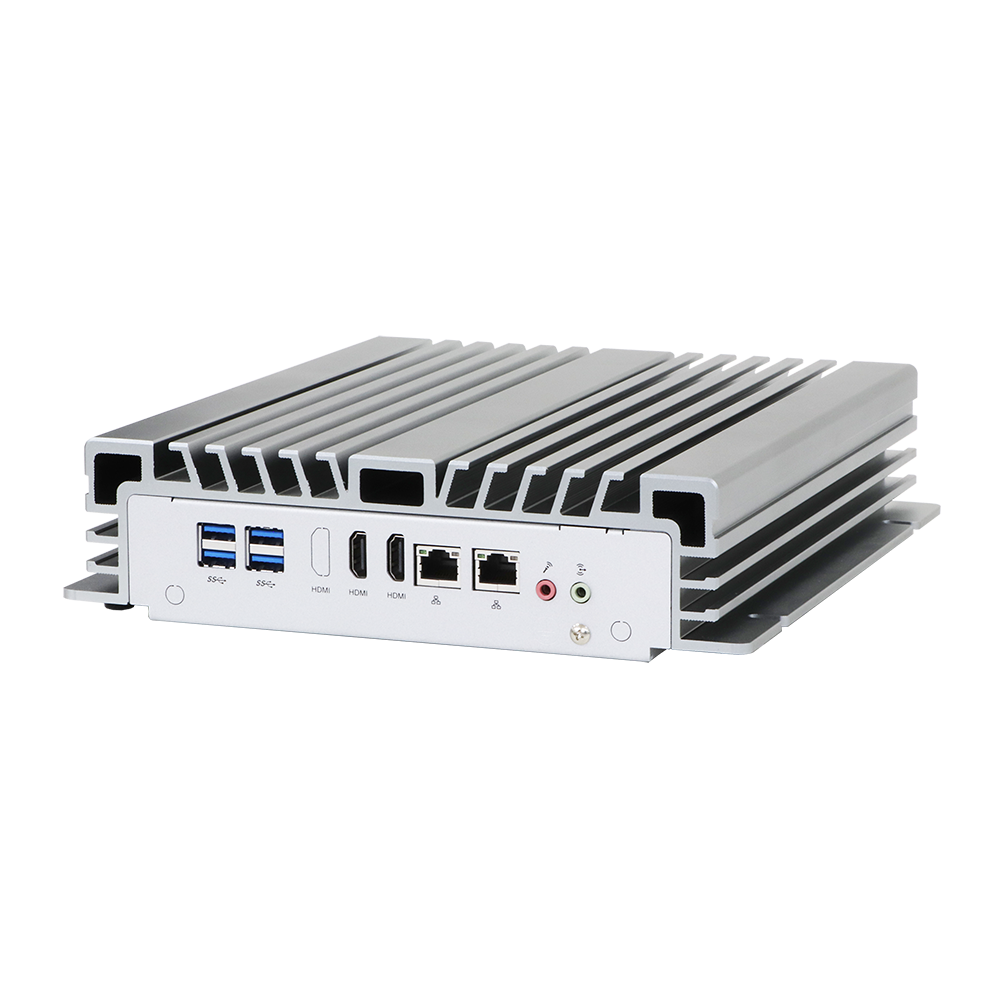

Fanless Embedded Box PC with Intel® 6th Generation Core™ i7/i5/i3 Processor & Multiple I/O

首頁 » 產品介紹 » 嵌入式電腦 » BPC-5070
  • Quote

  • Datasheet

特點

list_dot_01.pngIntel® 6th Gen Core™ i7 Processor up to 3.4 GHz
list_dot_01.pngDDR4 1866 / 2133 MHz SO-DIMM up to 16 GB
list_dot_01.png2.5” SATA HDD & RAID 0/1
list_dot_01.png3 HDMI (Triple Display Output)
list_dot_01.png-20 ~ 45° C Operating Temperature

應用

list_dot_01.pngEmbedded Digital Signage Control Systems
list_dot_01.pngFactory Automation Applications
list_dot_01.pngImage Processing (e.g. AOI)
list_dot_01.pngTransportation Management
list_dot_01.pngMachine Automation
Model BPC-5070-1A1 BPC-5070-2A1
Processor System CPU Socket LGA 1151 for Intel® Core™ i7/i5/i3/Celeron (Skylake-S)
System Chipset Intel® Q170 Intel® H110
BIOS UEFI
Memory Technology Dual-channel DDR4 1866/2133 MHz SDRAM
Max. Capacity 32 GB
Socket 2 (260-pin SO-DIMM)
Display Graphics Engine Intel® Gen9 Graphics DX 11/12, OGL 4.3/4.4
HDMI

HDMI 1: Supports HDMI 2.0, max. resolution  4096 x 2160@ 60 Hz
HDMI 2/3: Supports HDMI 1.4a, max. resolution  4096 x 2160@ 30 Hz

Multi Display Three Display: 3 HDMI/2 HDMI+1 VGA
Yes (Multi display), 2 HDMI Ports
I/O Interface USB 8 (4 USB 3.0, 4 USB 2.0)
Serial Port 2 (RS-232/422/485)
Ethernet Controller LAN1: 1 Intel® i210
LAN2: 1 I219LM
LAN1: 1 Intel® i210
LAN2: 1 I219V
Audio Chipset Realtek ALC887 High Definition Audio (HD)
Connectors Line out, Mic in
Storage SATA 2 SATA III (6.0 Gb/s), (7 mm 2.5” HDD only)
RAID Function RAID 0/1 N/A
mSATA 1 full-size(colay mSATA), 1 half-size
1 mSATA
Expansion Mini PCIe 1 full-size, 1 half-size 1 half-size
Power Power Type AT / ATX
Power Supply Voltage 12-24 V DC input
Power Consumption(Typical) 0.8 A @ 12 V (9.5W)
Power Consumption(Max) 6.6 A @ 12 V (77.6 W)
Environment Operational -20~45 °C (-4~113° F) w/ 2.5” SSD
Non-Operational 0~75 °C (32~167° F) and 60 °C @ 95% RH Non-condensing
Certificate EMC CE, FCC Class A
General Dimensions (W x H x D) 238 x 61 x 245 mm (9.37” x 2.40” x 9.64”)
Weight 3 kg (6.6 lb)
Operating System Windows 7/8.1/10, WES7-E/P, WE8S, Ubuntu 14.04

Packing List
Description
1 x BPC-5070
1 x Power Cord
1 x Startup Manual
1 x Power Adaptor (AC-to-DC, 12 V @ 7 A, 84 W)


Ordering Information
Part No.
Description
BPC-5070-1A1
Intel® CoreTM  i LGA 1151 Processor, Q170, with 3 HDMI, 8 USB, 2 COM, RAID, 12-24 V DC, Fanless
BPC-5070-2A1
Intel® CoreTM i LGA 1151 Processor, H110, with 2 HDMI, 8 USB, 2 COM, 12-24 V DC, Fanless


Optional Items
Part No.
Description
AWD-3G002
3G (HSPA+) Module + 1 Antenna, Full-size
AWD-4G001
4G (LTE) Module + 2 Antennas, Full-size
AWD-WF001
Wi-Fi 802.11 bgn (1T1R) + 1 Antenna, Half-size
AWD-WF003
Wi-Fi 802.11 abgn/ac/BT4.0 (2T2R) Module + 2 Antennas (Dual band), Half-size
AWD-WF004
Wi-Fi 802.11 b/g/n + BT4.0(1T1R) + 2 Antenna(dual band), M.2 2230 type
AWD-WF005
Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 Antenna(dual band), M.2 2230 type
