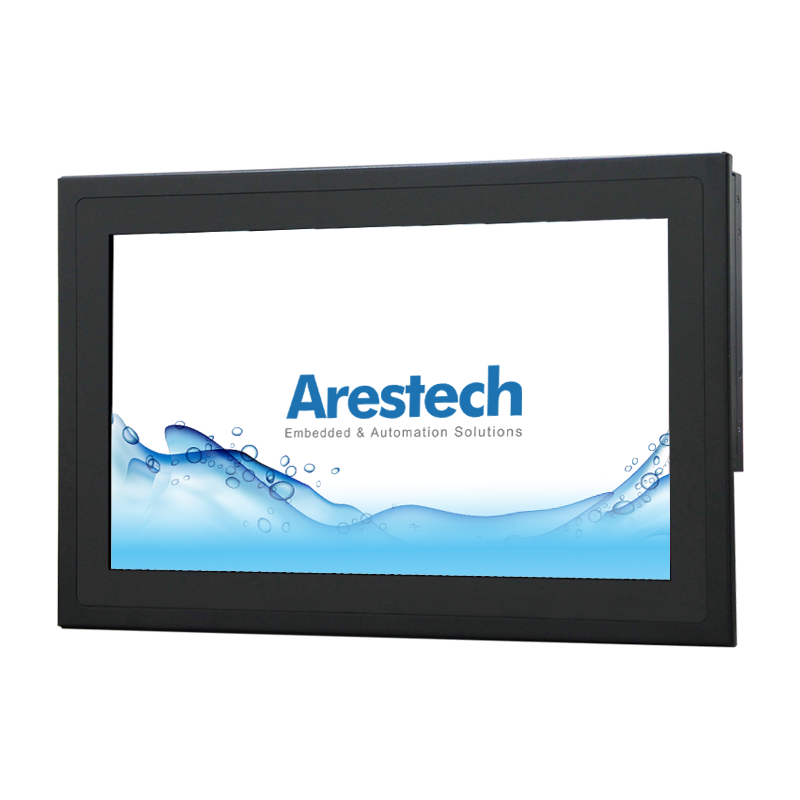

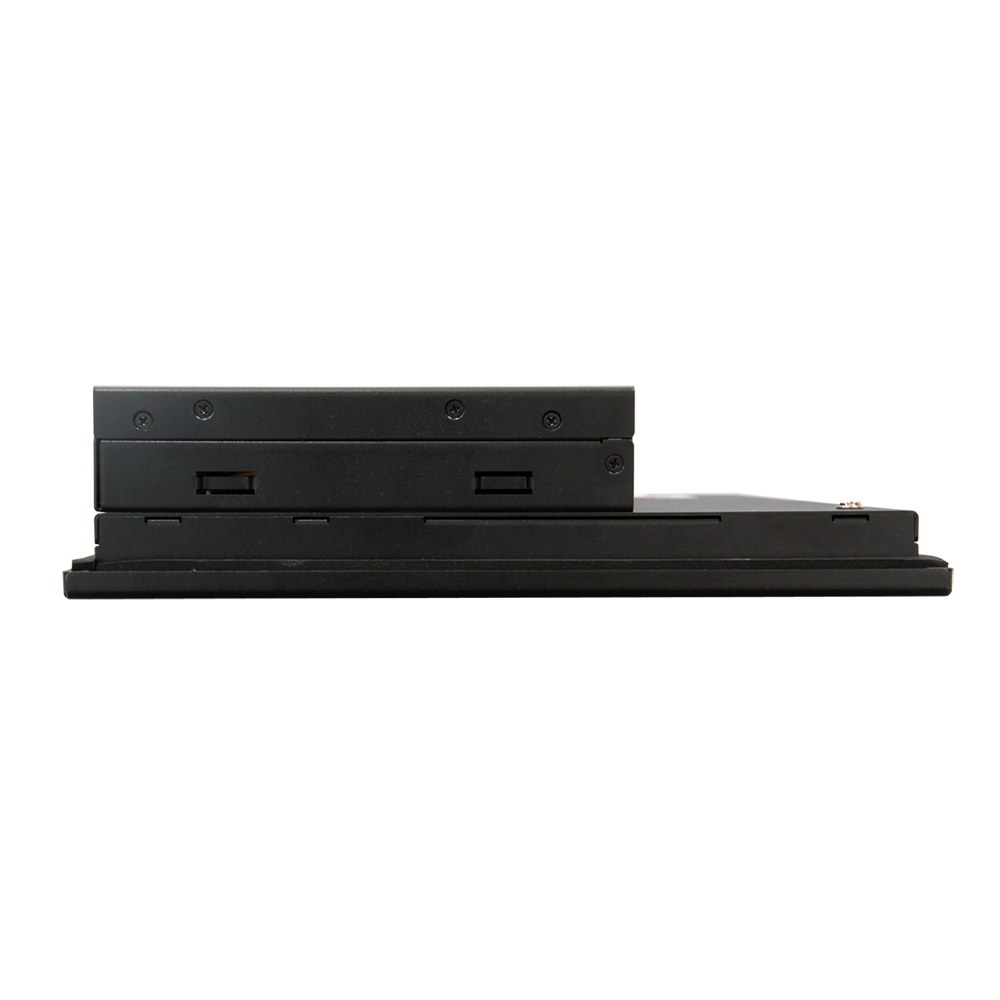

15.6” TFT XGA LED Panel with Projected Capacitive Touch Display
True Flat Front Panel IP54
Resoluition:1366 x 768
Two-finger Touch Control while Wearing Gloves
Internal SATA 2.5” HDD and mSATA Socket
Panel and VESA Mounting
特點
應用
Human Machine Interface (HMI)Factory / Manufacturing AutomationATM / Self-service / Kiosk ApplicationsVending Machine / Ticketing Machine | Model | PPC-152PW | ||
| Processor System | CPU | Intel® Celeron® J1900 Processor | |
| Frequency | Quad-Core up to 2.0 GHz | ||
| L2 Cache |
Intel® Smart Cache 2 MB |
||
| System Chipset | N/A | ||
| BIOS | UEFI | ||
| Memory | Technology |
DDR3L 1333 MHz SDRAM |
|
| Max. Capacity | 8GB | ||
| SocketSocket/ (On Board) |
1 (204-pin SO-DIMM) |
||
| Display | Panel Size |
15” LCD Panel |
|
| Aspect Ratio | 16:9 | ||
| Resolution |
1366 x 768 (HD) |
||
| Viewing Angle |
80 x 80 (H) x 80 x 80 (V) |
||
| Brightness | 300 (cd/m2) | ||
| Contrast Ratio | 500:1 | ||
| VGA / HDMI / DP / DVI |
HDMI 1.4a up to 1920 x 1200 |
||
| Multi Display |
LCD Panel+ VGA or LCD Panel+ HDMI |
||
| Touchscreen | Touchscreen Type | Projected Capacitive | |
| Surface Hardness | 7 Mohs | ||
|
Durability |
N/A |
||
| Transparency | 90% (±3%) | ||

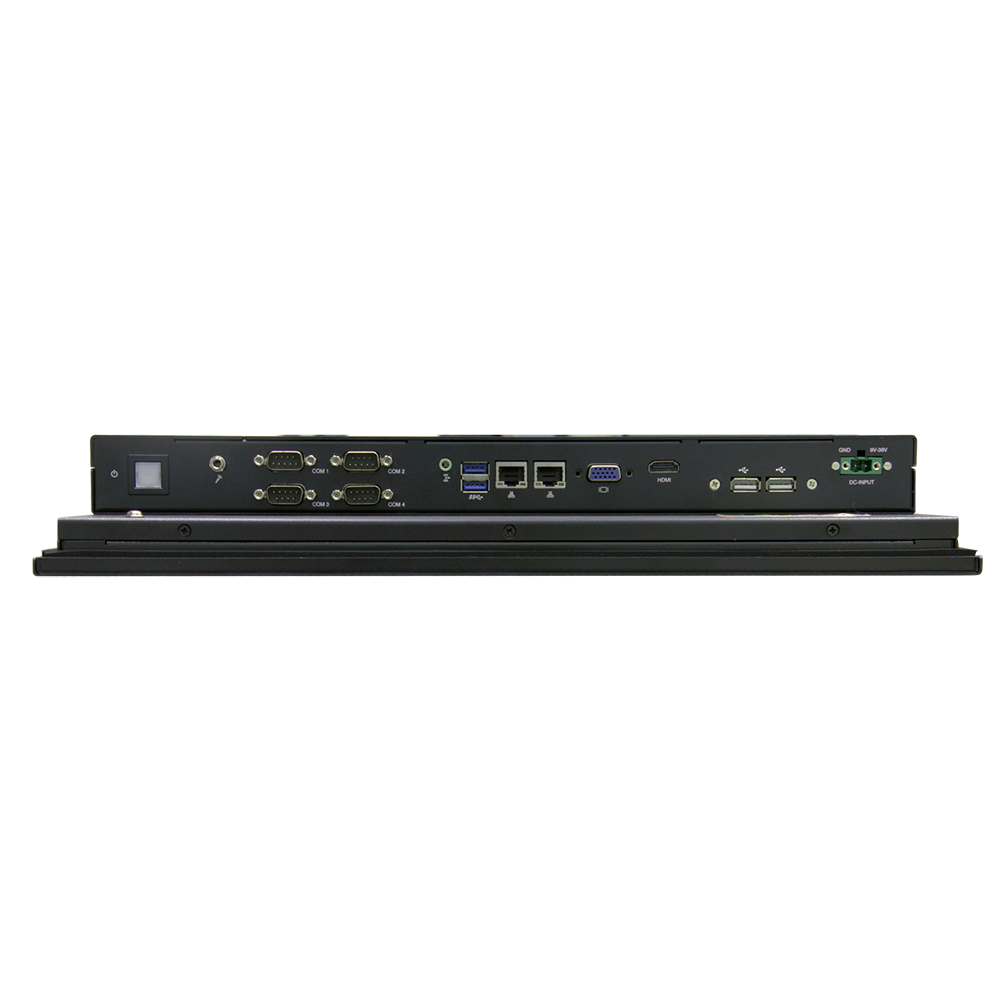

| I/O Interface | USB |
4, 2 USB 3.0 2 USB 2.0 |
|
| Serial Port |
4, COM (3 RS-232, 1 RS-232/422/485) |
||
|
Digital I/O |
1, 8-pin Digital I/O (DB-9 connector, Option) |
||
|
Ethernet |
Dual GbE, 10/100/1000 Mbps (Realtek RTL8111G-CG) |
||
| Others | N/A | ||
| Expansion | miniPCIe/ M.2 Slot |
2 Mini PCIe (1 full-size Mini PCIe or mSATA, selected by jumper setting; 1 half-size Mini PCIe) |
|
|
PCI/ PCIe Slot |
N/A |
||
|
Audio |
Connector |
Line out |
|
| Storage |
HDD/SSD |
1, Internal 2.5” HDD/SSD |
|
| mSATA/ M.2 / eMMC |
N/A |
||
| Power | Power On Model | AT/ATX | |
| Power Supply Voltage |
Supports 9-36 V DC input |
||
|
Connector Type |
2-Pin Terminal Block, Phoenix Connector |
||
|
Power Consumption(Typical/Max.) |
Typical:1.53 A @ 12 V (18.4 W), Max: 1.8 A @ 12 V (21.6 W) |
||
| Battery |
Lithium 3 V / 210 mAH |
||
| Mounting | VESA Mount |
75mmx 75mm; 100mm x 100mm |
|
|
Panel Mount |
Cut out 411.5 x 267.8 mm mm, Thickness range under 28 mm |
||
|
Others |
Yoke Mount |
||
|
Environment |
Operating Temperature |
-20~60° C (-4~140° F) (Humidity: 50° C @ 80% RHNonc- ondensing) w/ 2.5" Extended Temp. SSD | |
|
Storage Temperature |
-40~85° C (-40~185° F) (Humidity: 85° C @ 80% RHNon- condensing) |
||
|
Humidity |
5~95% @ 40° C, non-condensing |
||
|
Vibration |
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
||
|
Shock |
20 G, IEC 60068-2-27, half sine, 11 ms duration |
||
|
General |
Certification |
TBD |
|
|
Thermal Dissipation |
Fanless |
||
|
Material, Surface Finish |
SECC Front Cover |
||
|
Ingress Protection |
Front Panel IP54 |
||
|
Dimensions (L x W x H) |
430 x 285 x 74.70 mm (16.92"x 11.22" x 2.94") |
||
| WeightNet Weight |
7.5 kg |
||
| Operating System |
Windows 7/8.1/10, WES7-E/P, WE8S, Ubuntu 14.04 |
||
Packing List
|
Description |
|
1 x PPC-152PW |
|
1 x Power Adapter |
|
16 x Panel Mounting Screws |
Ordering Information
|
Part No. |
Description |
|
PPC-152PW-A2 |
15.6" 16:9 (1366 x 768), 300nits, Fanless Panel PC with Intel® Celeron J1900 CPU, Projected Capacitive Touch, 2 USB 3.0, 2 USB 2.0, 3 RS-232, 1 RS-232/422/485, Line out, 2 GbE, 1 VGA, 1 HDMI, DC 9-36 V, Phoenix Connector |
Optional Items
|
Part No. |
Description |
|
AWD-3G002 |
3G (HSPA+) Module + 1 Antenna, Full-size |
| AWD-4G003 | 4G (LTE) Module + 2 Antennas, Full-size |
|
AWD-WF001 |
Wi-Fi 802.11 bgn (1T1R) + 1 Antenna (Single band), Half-size |
|
AWD-WF003 |
Wi-Fi 802.11 abgn/ac/BT4.0 (2T2R) Module + 2 Antennas (Dual band), Half-size |
