BPC-5080
Fanless Embedded Box PC with 8th Generation Coffee Lake 6 Cores Intel® Core™ i7/i5/i3 Processor & Multiple I/O
嵌入式電腦
BPC-5080
特點
8 Generation CoffeeLake-S CPU, Intel® Core™ i7 Processor up to 4.0 GHz
DDR4 2400 / 2666 MHz SO-DIMM up to 32 GB
2 M.2 and 2.5” SATA III HDD & RAID 0/1 (Option)
Display Port and VGA (Triple Display Output)
-20 ~ 60° C Operating Temperature
應用
Embedded Digital Signage Control SystemsFactory AutomationImage ProcessingMachine Vision and Montion ControlMachine Automation | Model | BPC-5080-1A1 |
BPC-5080-2A1 |
|||||
| Processor System | CPU |
Socket LGA 1151 for Intel®Core™ i7/i5/i3/Celeron (Coff eelake-S) |
|||||
| System Chipset | Intel® Q370 |
Intel® H310 |
|||||
| BIOS | UEFI | ||||||
| Memory | Technology | Dual-channel DDR4 2400/2666 MHz SDRAM | |||||
| Max. Capacity | 32 GB | ||||||
| Socket | 2, 260-pin SO-DIMM | ||||||
| Display | Graphics Engine | Intel® UHD Graphics 630 | |||||
| VGA |
- |
1, VGA, Up to 1920 x 1200 @ 60Hz |
|||||
| DVI-D |
- |
||||||
| HDMI |
- |
||||||
|
Display Port |
3, DP 2.0a, Up to 4096 x 2304 @ 60 Hz |
2, DP 2.0a, Up to 4096 x 2304 @ 60 Hz |
|||||
|
Multi Display |
Triple Display |
Dual Display |
|||||

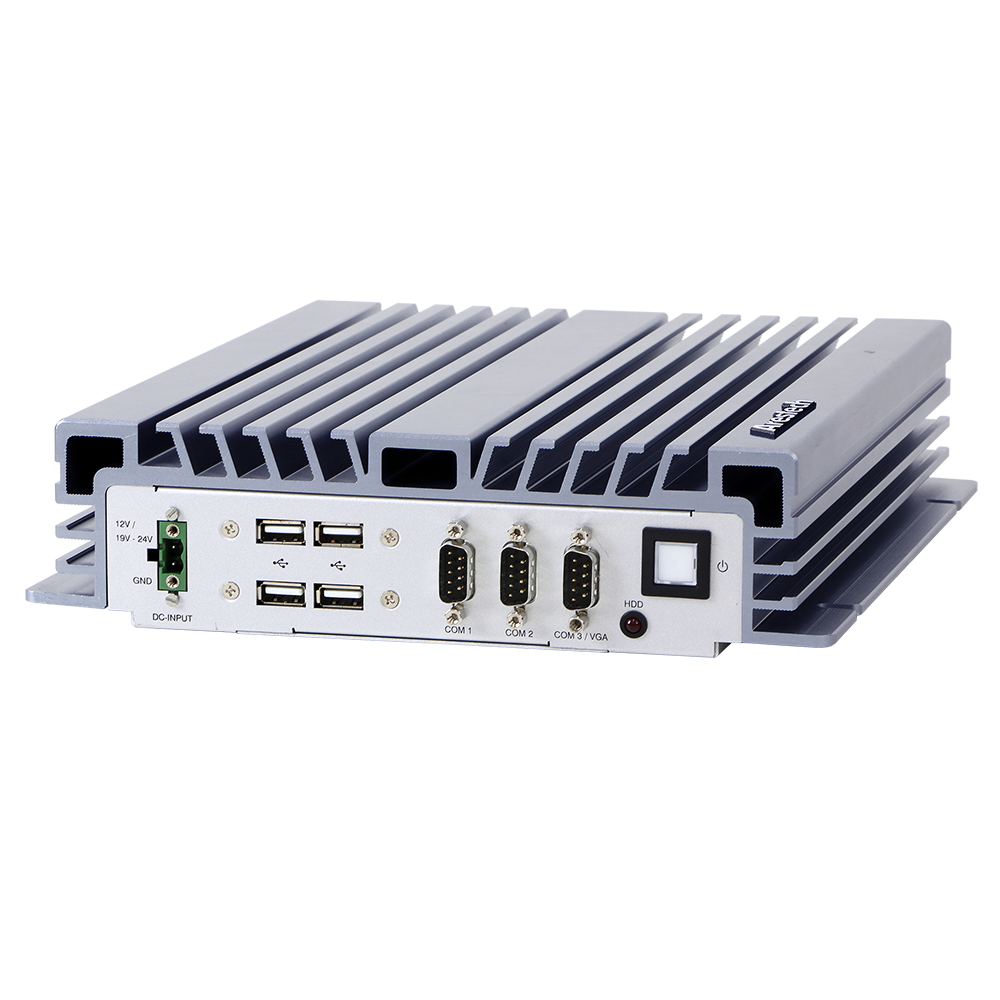

| Front I/O Interface | USB | 4, 4 USB 2.0 | |||||
| Serial |
3, COM ports(1 RS-232 Only ; 2 RS-232/422/485) |
2, COM ports(2 RS-232/422/485) |
|||||
| GPIO | 1, 8-pin Digital I/O (DB-15 connector, Option) | ||||||
|
Ethernet |
- |
||||||
|
Audio |
- |
||||||
|
Others |
- |
||||||
|

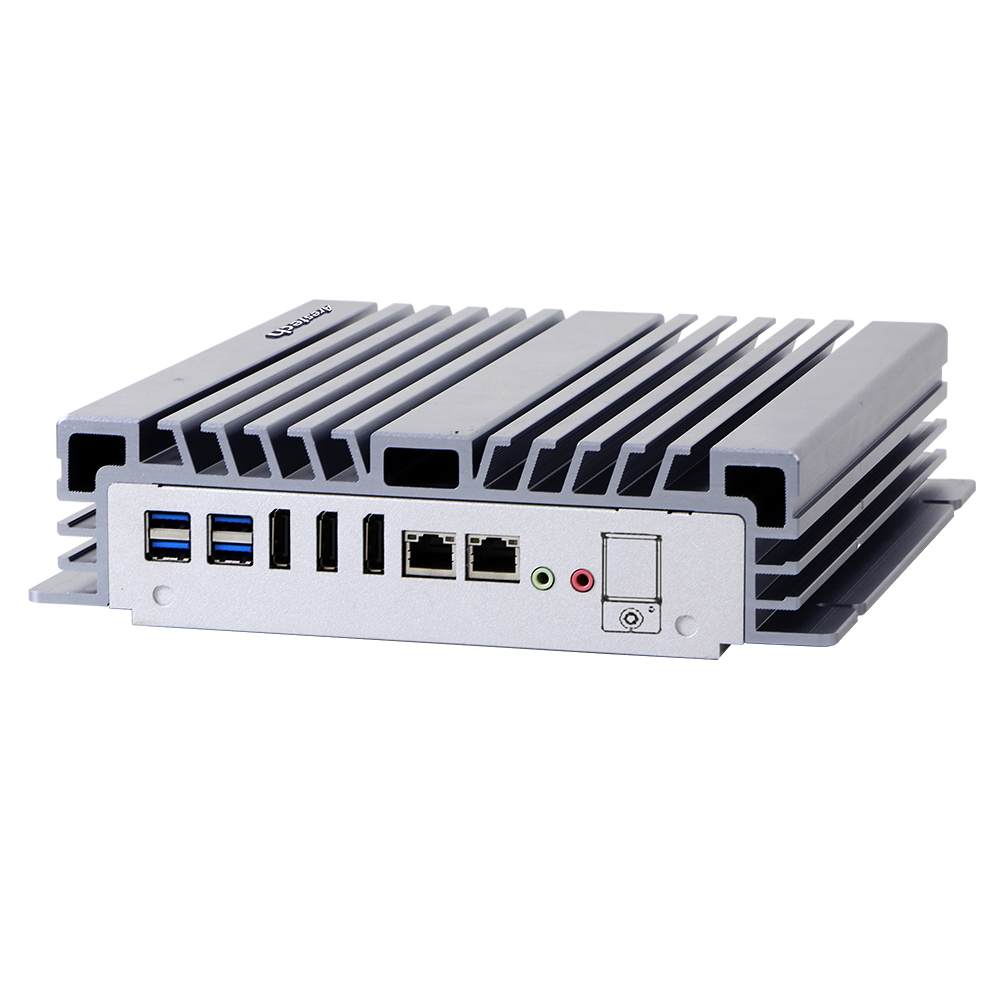

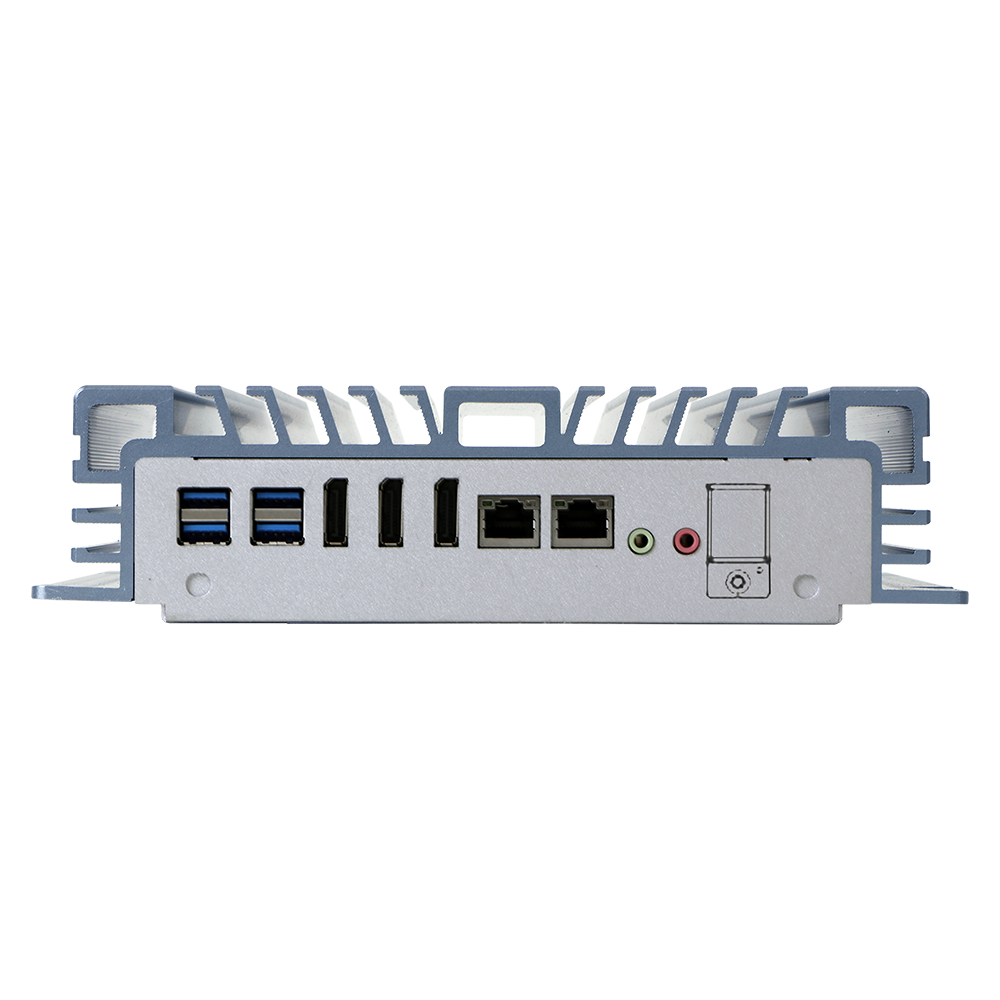

Rare I/O Interface |
USB |
4, 4 USB 3.1 |
|||||
|
Serial |
- |
||||||
|
GPIO |
- |
||||||
|
Ethernet |
Dual GbE, 10/100/1000 Mbps (Intel i219V, i211AT) |
||||||
|
Audio |
Line out, Mic In, Realtek LC887 High Definition Audio (HD) |
||||||
| Others | - | ||||||
|
Expansion |
miniPCIe/ M.2 Slot |
1 miniPCIe full-size / 1 M.2 E Key 2230 | |||||
|
PCI/ PCIe Slot |
N/A |
||||||
|
Storage |
HDD/SSD | 2 SATA III (6.0 Gb/s), (7 mm 2.5” HDD only) |
1 SATA III (6.0 Gb/s), (7 mm 2.5” HDD only) |
||||
| RAID | RAID 0/1 | - | |||||
| mSATA/M.2 | 1 M.2 M Key 2242/2260/2280 |
1 M.2 M Key 2242/2260/2280 |
|||||
|
Power |
Power On Model | AT/ ATX | |||||
| Power Supply Voltage | 12/19~28 V DC input (Phoenix Connector) | ||||||
| Power Consumption (Typical) | 0.65A @ 24 V (15.7W) |
0.65A @ 24 V (15.7W) |
|||||
| Power Consumption (Max.) | |||||||
| 4.58A @ 24 V (110W) | 4.58A @ 24 V (110W) | ||||||
| Battery |
CR2032; 3.3V |
||||||
| Mounting | Type | Wall Mount | |||||
|
Environment |
Operating Temperature | -20~60° C (-4~122° F) (Humidity: 60° C @ 80% RH Non-condensing) w/ Extended Temp. RAM & M.2 SSD | |||||
| Storage Temperature |
-20~75 °C and 60 °C @ 95% RH Non-condensing |
||||||
| Humidity | 5~95% @ 40° C, non-condensing | ||||||
|
Vibration |
1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes |
||||||
|
Shock |
20 G, IEC 60068-2-27, half sine, 11 ms duration |
||||||
| General | Certification | CE, FCC Class A | |||||
| Thermal Dissipation | Fanless System | ||||||
|
Ingress Protection |
IP40 Proctection |
||||||
|
Dimensions (W x H x D) |
238 x 61 x 245 mm (9.37” x 2.40” x 9.64") |
||||||
| Net Weight | 3.215kg(7.09Ib) | ||||||
| Operating System |
Windows 10 IoT 64Bit, Linux kernal 4.0.x or above |
||||||
Packing List
Description
1 x BPC-5080
1 x Power Adaptor
1 x Power Cord
Ordering Information
Part No.
Description
BPC-5080-1A1
Intel® 8th Gen Core™ i LGA1151 CPU, Q370, 2 DDR4 memory, 4 USB3.1, 4xUSB2.0, 1 RS-232, 2 RS-232/422/485, 2 GbE, 3 DP, RAID 0/1, Line out, Mic In, DC 12/19~28V, Phoenix Connector
BPC-5080-2A1
Intel® 8th Gen Core™ i LGA1151 CPU, H310, 2 DDR4 memory, 4 USB3.1, 4xUSB2.0, 2 RS-232/422/485, 2x GbE, 1 VGA, 2 DP, Line out, Mic In, DC 12/19~28V, Phoenix Connector
Optional Items
Part No.
Description
i7-8700T
Intel® 8th Gen Core™ i7-8700T(12M Cache, 4.00 GHz)
i5-8500T
Intel® 8th Gen Core™ i5-8500T(9M Cache, up to 3.50 GHz)
i3-8100T
Intel® 8th Gen Core™ i3-8100T (6M Cache, 2.40 GHz)
G5400T
Intel® PentiumTM G5400T (4M Cache, 3.10 GHz)
G4900T
Intel® CeleronTM G4900T (2M Cache, 2.90 GHz)
AWD-WF001
wifi 802.11 b/g/n (1T1R) + 1 antenna , Half size
AWD-WF003
wifi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 antenna(dual band), Half size
AWD-WF004
wifi 802.11 b/g/n/BT4.0 (1TR) + 2 antenna(dual band), M.2 2230 type
AWD-WF005
wifi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 antenna(dual band), M.2 2230 type
AWD-3G002
3G UC20-G (HSPA+) + 1 antenna, Full size with SIM socket
AWD-4G001
4G(LTE) EC20-E+ 2 antenna, Full size with SIM socket
AWD-4G002
4G(LTE) EC25-J+ 2 antenna, Full size with SIM socket
