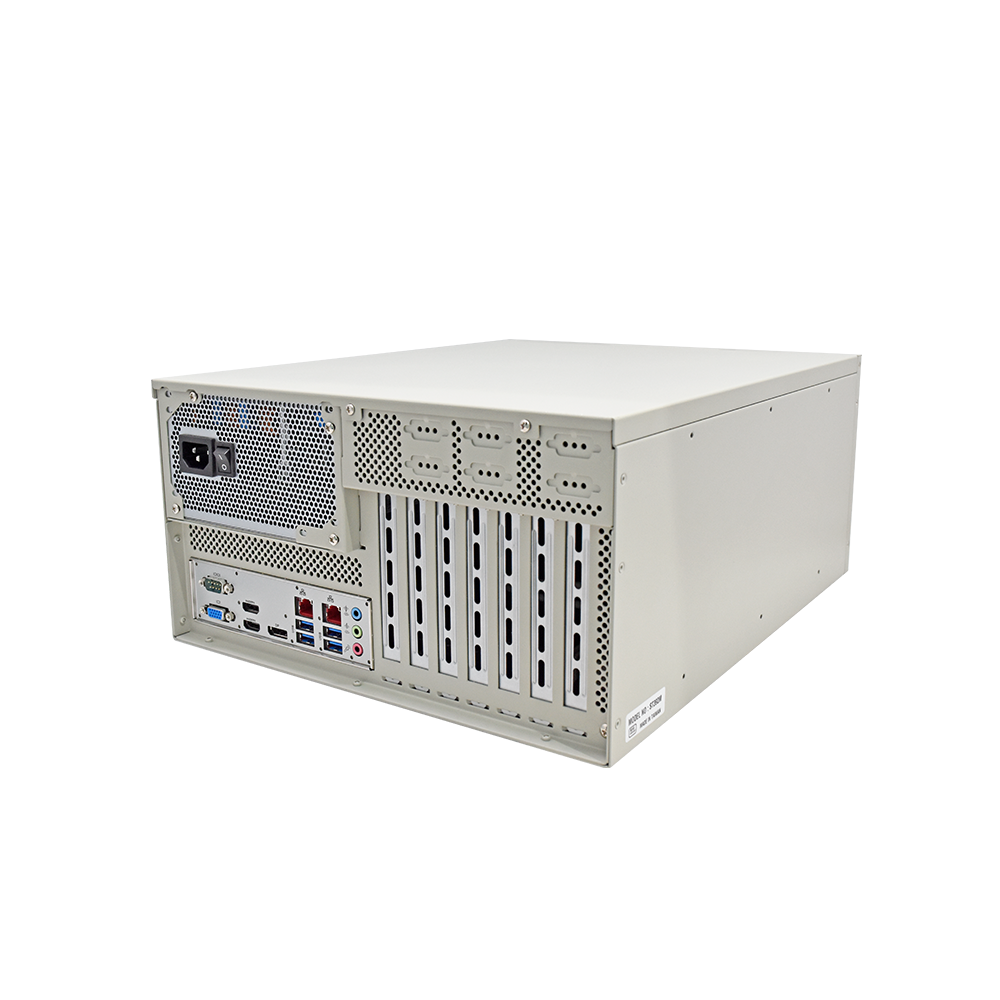

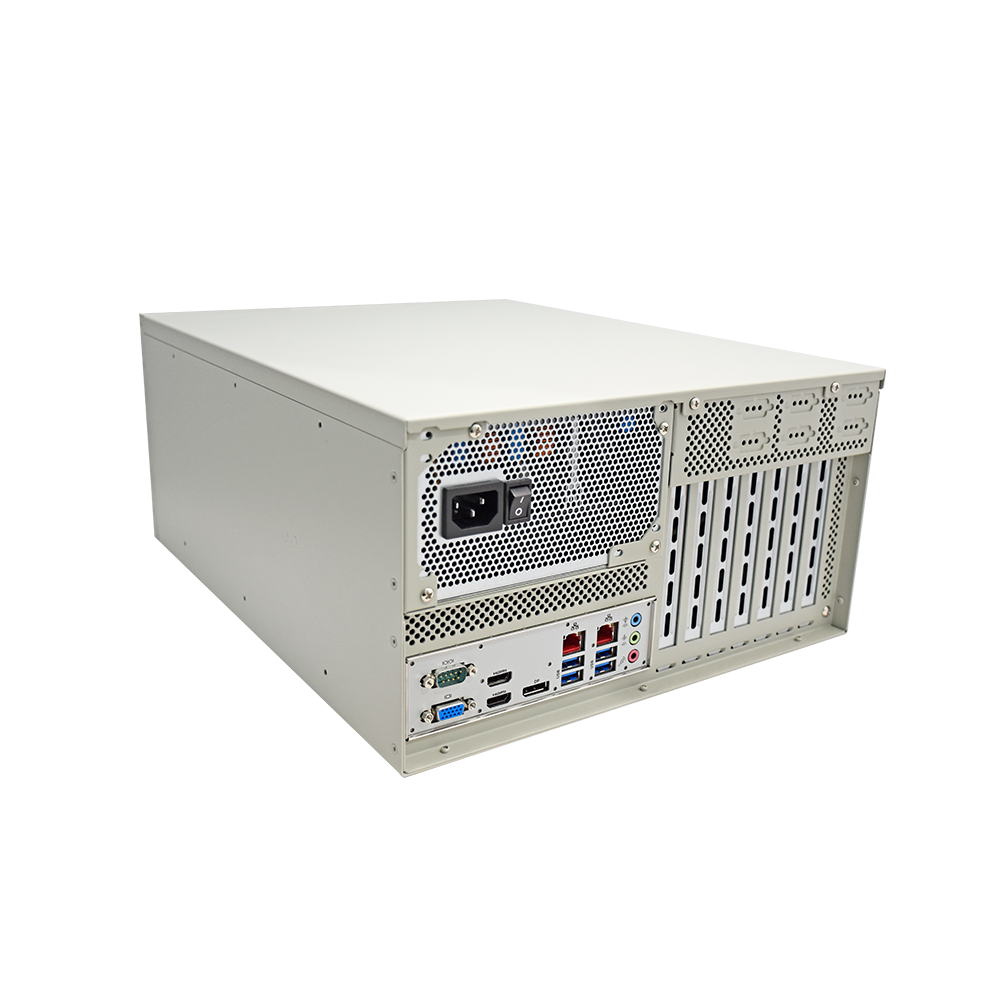

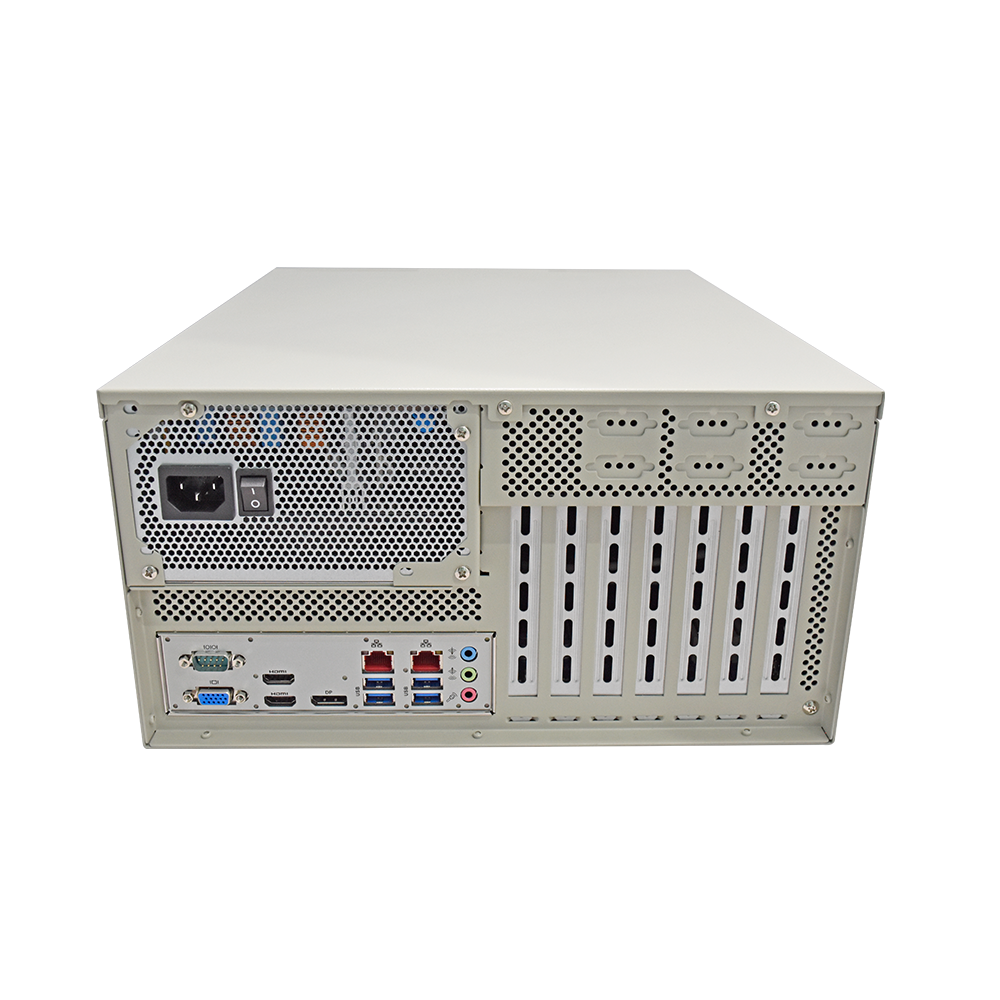

SE-5017E

Model

SE-5017E

Processor System

CPU

Intel® 14th/13th/12th Gen Core™ i9/i7/i5/i3 LGA 1700 CPU (35/65W TDP)

System Chipset

Intel® Q670

TPM

TPM 2.0 onboard IC (Infineon SLB9670VQ2.0)

Memory

Technology

Dual Channel DDR4 3200MHz

Max. Capacity

128GB

Socket Type

4 x 288-pin DIMM

Display

Graphics Engine

Intel® UHD Graphics

Multiple Display

4

HDMI

2 x HDMI 2.0, Max resolution up to 4096 x 2160

DisplayPort

1 x DP, Max resolution up to 4096 x 2160

VGA

1 x VGA, Max resolution up to 1920 x 1080

I/O Interface

 USB

4 x USB3.2 Gen1

Serial Port

1 x RS-232/422/485 & RI/5V/12V

Ethernet

2 x 2.5GbE LAN Ports (Intel® I226V & I226LM)

Audio

1 x Line-in, 1 x Line-out, 1 x Mic-in (Realtek ALC897)

Storage

External

2 x 5.25” External Drive Bays

 Internal

 1 x 3.5” Internal HDD Bay

Expansion

M.2

 1 x M.2 M-Key 2280/2242 (PCIe Gen4 x4 and SATA 6Gb/s) (M2M_1)

 1 x M.2 M-Key 2280/2242 (PCIe Gen4 x4) (M2M_2)

1 x M.2 E-Key 2230 (PCIe x1, USB 2.0)

PCIE / PCI

 1 x PCIe x16 (Gen 4x16, x8 when PCIEX16_2 is occupied) (PCIEX16_1)

 1 x PCIe x16 (Gen 4x8) (PCIEX16_2)

 3 x PCIe x4 (Gen 3x4)

2 x PCI

Power

Form Factor

ATXPS2

Total Power

650 Watts

Input Voltage

100 ~ 240V AC

Power Connector Type

ATXPS2

Mounting

Type

Supports Vertical & Horizonal Mounting

Environment

Operating Temperature

0 ~ 45°C

Storage Temperature

-40 ~ 85°C

Humidity

5% ~ 90% (Non-condensing)

Vibration

IEC 60068-2-64: 5Grms, random, 5~500 Hz, 1hr/axis

Shock

IEC 60068-2-27: 50G, half-sine, 11ms duration

General

Certification

CE/FCC Class A

Thermal Design

CPU Cooler & System Fan

Material

Heavy-duty Steel

Dimensions (W x D x H)

330 x 410 x 175mm

Net Weight

15kg

Operating System

Windows 10 IoT, Windows 11 (IoT/Professional), Linux
