BPC-3080

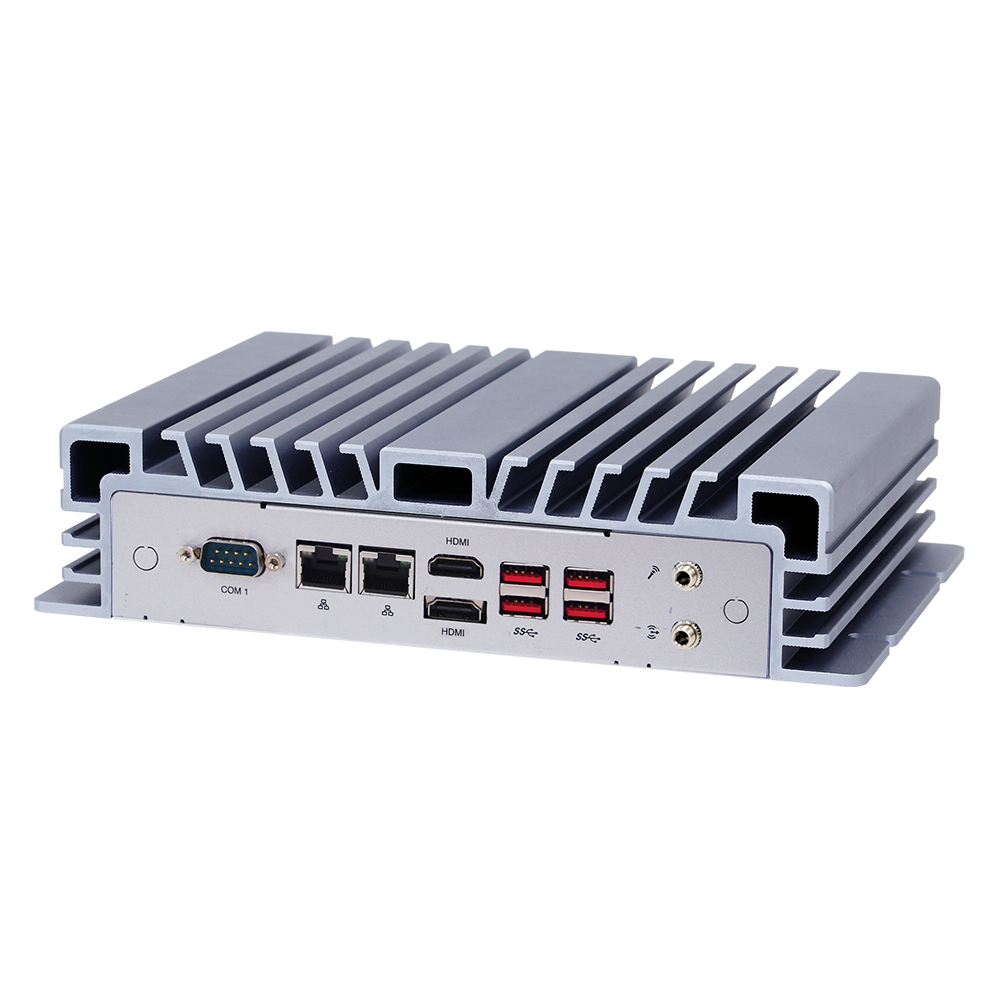

BPC-3080

Fanless Compact Embedded Box PC powered by 8th Generation Whisky Lake-U Quad-core Intel® Core™ i5 Processor & Multiple I/O

首頁 » 產品介紹 » 嵌入式電腦 » BPC-3080
  • Quote

  • Datasheet

特點

list_dot_01.png8th Gen. Intel® Core™ i5-8265U up to 3.90 GHz
list_dot_01.pngSupport 2x HDMI 1.4 up to 4K resolution
list_dot_01.pngFast connectivity with 4x USB 3.1 Gen. 2
list_dot_01.png-20 ~ 60° C Operating Temperature

應用

list_dot_01.pngAIoT
list_dot_01.pngFactory Automation
list_dot_01.pngMachine Automation
list_dot_01.pngImaging Processing
list_dot_01.pngSelf-Service
Model BPC-3080-1A1
Processor System CPU Intel® 8th Gen Core™ i5-8265U
System Chipset N/A
BIOS AMI 1 28 Mbit SPI Flash
Memory Technology Dual channel DDR4 SO-DIMM sockets
Max. Capacity 32 GB
Socket 2 DDR4 260-pin SO-DIMM
Display Graphics Engine Intel® UHD Graphics 620
VGA N/A
DVI-D N/A
HDMI 2, HDMI1.4 port, Up to 4096x2304@24Hz
Display Port
LCD panel + HDMI
Multi Display
Yes
Front I/O Interface USB 2 USB 2.0
Serial

4, COM (3 RS232, 1 RS-232/422/485)

GPIO 8 bits GPIO
Ethernet
N/A
Audio
Lin out, Mic in
Others
N/A
Rare I/O Interface
USB
4 USB 3.1 Gen 2
Serial
N/A
GPIO
N/A
Ethernet
Dual GbE, 10/100/1000 Mbps (LAN 1: Intel® i219V, LAN 2: Intel i211AT)
Audio
2 (Mic-in. Line-out)
Others N/A
Expansion
miniPCIe/ M.2 Slot
1 x Mini-PCIe, 1 M.2 2230 E-Key (WiFi/BT)
PCI/ PCIe Slot
N/A
SIM
with SIM holder
Storage
HDD/SSD 1 HDD/SSD SATA 3.0 (600 MB/sec)
RAID N/A
mSATA/M.2 1 M.2 2280 M-Key, (SATA)
Power
Power On Model AT/ATX
Power Supply Voltage 12-24 V DC input
Power Consumption (Typical) 1.20A @ 12V (14.4W)
Power Consumption (Max.)
5.08 @ 12V (61W)
Battery CR2032; 3.3V
Power Connector Type
AT / ATX
Mounting Type Desk mounting
Environment
Operating Temperature -20~60° C (-4~140° F) w/ Extend Temp. RAM & Extend Temp. 2.5” SSD(Humidity: 60° C @ 80% RH Non-condensing
Storage Temperature -40~85° C (-40~185° F)
Humidity 5~95% @ 40° C, non-condensing
Vibration
1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes
Shock
20 G, IEC 60068-2-27, half sine, 11 ms duration
General Certification N/A
Thermal Dissipation Fanless System
Ingress Protection
IP20 Proctection
Dimensions (W x H x D)
238 x 55 x 155 mm (9.37” x 2.16” x 6.1”)
Net Weight 1.97 kg (4.34 lb)
Operating System Windows 10 IoT, Linux, Windows 10 Professional


Packing List

Description
1 x BPC-3080
1 x Power Cord
1 X Power adapter
2 x Mounting Bracket






Ordering Information

Part No. Description
BPC-3080-1A1 Intel® 8th Gen Core™ i5-8265U, 2 DDR4 memory, 4 USB3.1 Gen 2, 2 USB2.0, 2 HDMI, 3RS232,
1 RS-232/422/485, 8bits GPIO, 2 GbE, Line out, Mic In, 12-24 V DC input, Phoenix Connector




Optional Items

Part No.
Description
AWD-3G002
3G (HSPA+) Module + 1 Antenna, Full-size mini PCIe
AWD-4G001
4G (LTE) Module + 2 Antennas, Full-size mini PCIe
AWD-WF001
Wi-Fi 802.11 bgn (1T1R) +1 Antenna (Single band), Half-size mini PCIe
AWD-WF003
Wi-Fi 802.11 abgn/ac/BT4.0 (2T2R) Module+2 Antennas (Dual band), Half-size mini PCIe
AWD-WF004
Wi-Fi 802.11 b/g/n + BT4.0(1T1R)+2 Antenna(Single band), M.2 2230 Type
AWD-WF005
Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R)+2 Antenna(Dual band), M.2 2230 type
