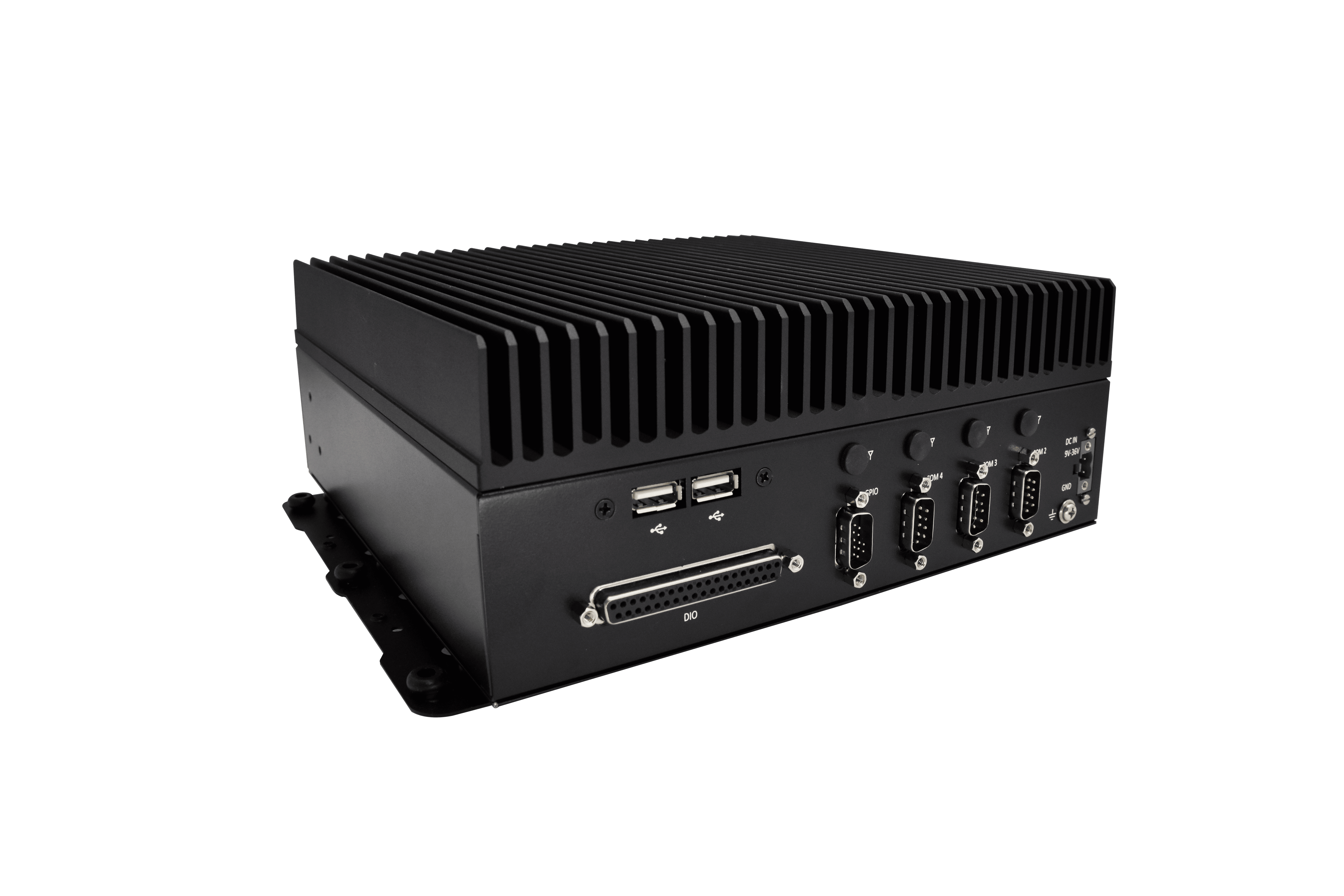

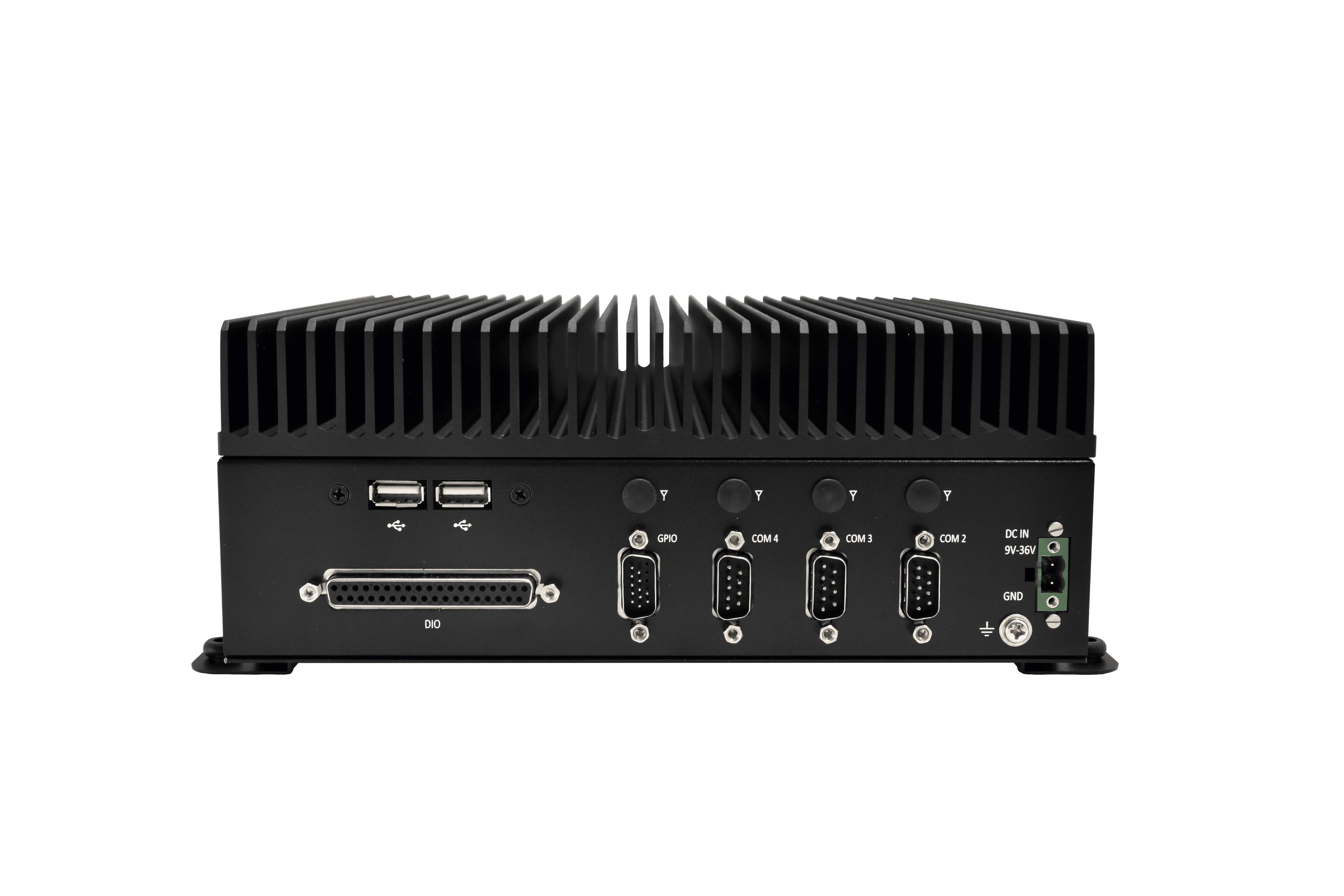

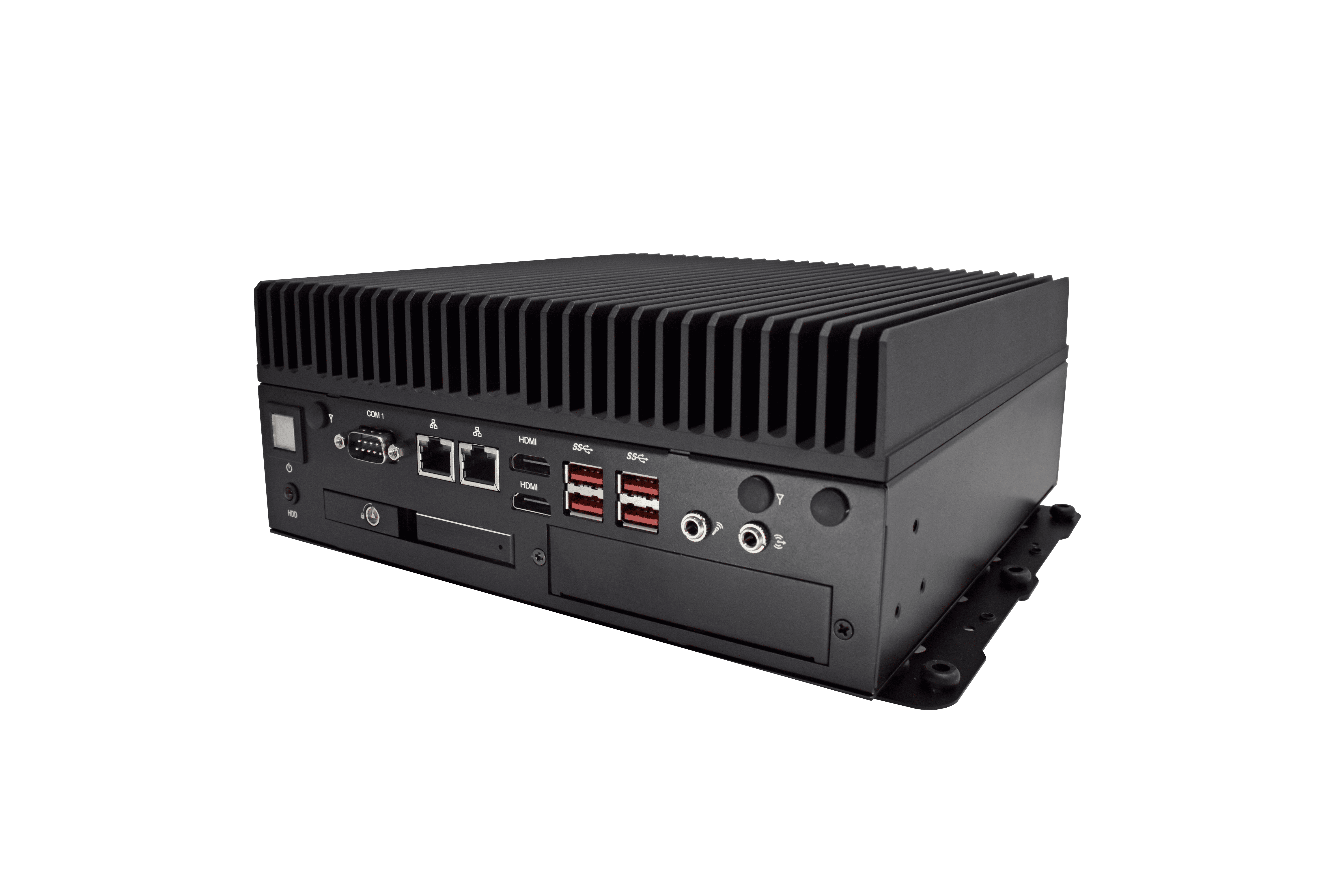

SB-5612

Model

SB-5612-1A1

SB-5612-2A1

Processor System

CPU

Intel® Core™ i5-1235U/i5-1245UE CPU

Intel® Core™ i5-1335U/ i5-1335UE CPU

BIOS

UEFI

TPM

Onboard TPM 2.0

Memory

Technology

Dual Channel DDR4 3200MHz

Max. Capacity

64GB

Type

2 x 260-pin SO-DIMM

Display

Graphics Engine

Intel® Iris® Xᵉ Graphics

Multiple Display

2

HDMI

2 x HDMI, Max Resolution 4096 x 2160

I/O Interface

USB

4 x USB3.2 Gen2

2 x USB2.0

Serial Port

4 x RS232/422/485

Ethernet

2 x 2.5GbE (Intel® I226v)

Audio

1 x Line-out, 1 x Mic-in

DIO

16 x Isolated DI & 16 x Isolated DO (Optional)

GPIO

4 x Input, 4 x Output (D-SUB 9-pin)

Antenna Hole

7

Flexible I/O Window

1

Storage

M.2

1 x M.2 M-Key2 2280 (PCIe x4 and SATA III)

Expansion

Mini-PCIe

1 x Full-Size Mini-PCIe (PCIe, USB 2.0 and SIM)

M.2

1 x M.2 E-Key 2230 (PCIe, CNVi)

SIM Holder

1 x Micro-SIM Holder

Power

Power Mode

AT/ATX

Power Supply Voltage

9-36V DC Input

Power Connector Type

1 x 2-pin Terminal Block Connector

Mounting

Type

Wall Mount

Environment

Operating Temperature

-20 ~60°C

Storage Temperature

-40 ~ 85°C

Humidity

0% ~ 90% (non-condensing)

General

Vibration

1Grms, 5-500 Hz, 1hr/Axis

Shock

20Grms, Half-sine 11ms

Certification

CE/FCC Class A

Thermal Dissipation

Fanless system

Material

Aluminum & SECC

Dimensions (W x D x H)

248.5 x 228 x 100mm

Net Weight

5.0kg

Operating System

Windows 10 IoT, Windwos 11 (IoT/Professional), Linux
