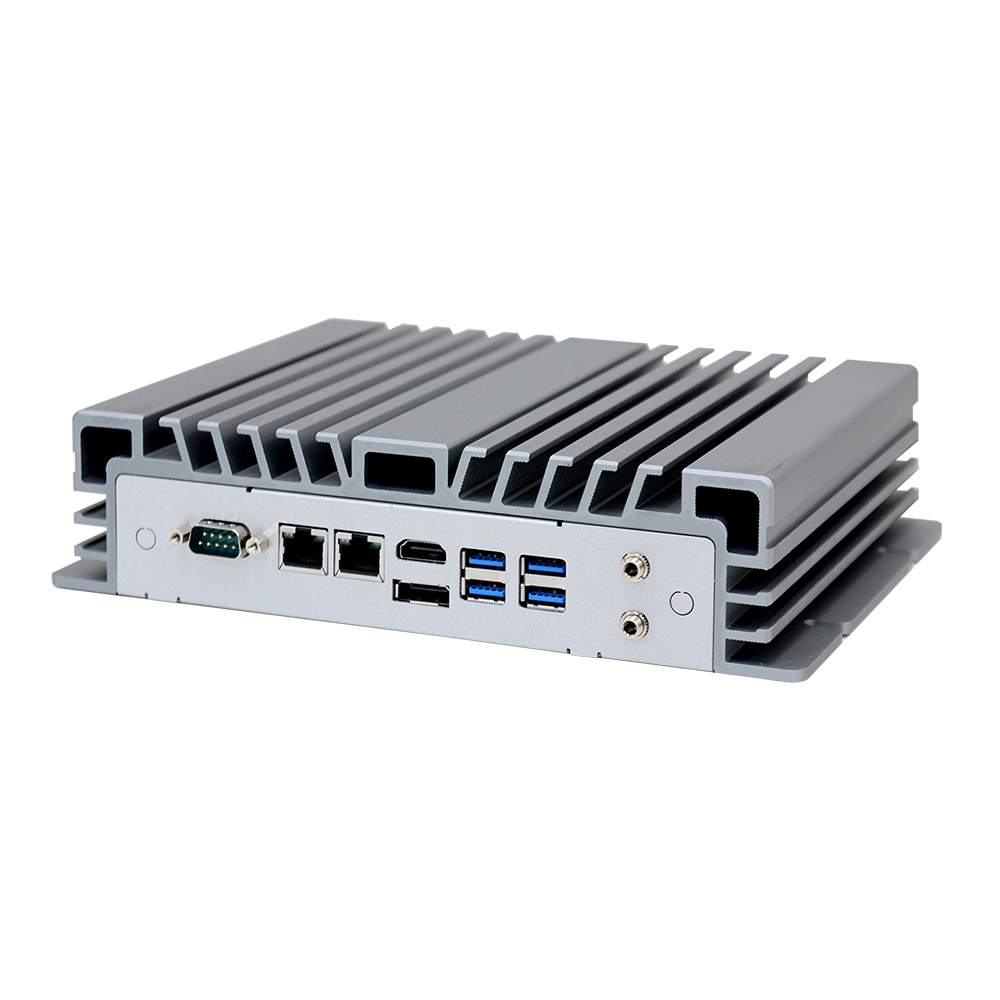

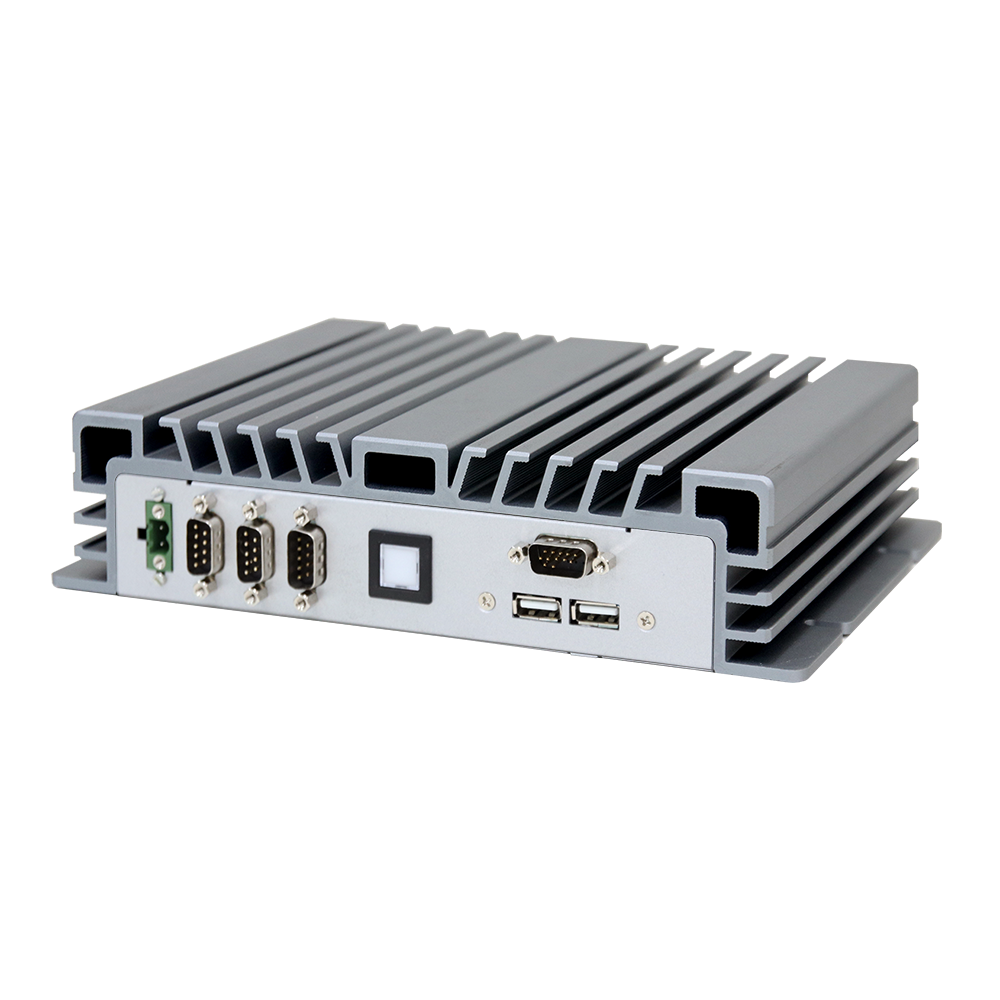

BPC-3072
Fanless Compact Embedded Box PC with 7th generation Intel® CoreTM i5/i3 Kabylake-U processor
嵌入式電腦
BPC-3072
特點
7th Generation Intel® Core™ i5® Dual-Core up to 3.1 GHz
2/4 Gigabit Ethernet Ports
6 USB, 4 COM, 8bits GPIO
1 Mini PCIe (for WLAN Module), 2 M.2 Expansion Slot
9-36 V DC Power Input
應用
Embedded Digital Signage Control SystemsFactory Automation ApplicationsImage Processing (e.g. Medical 2D and 3D imaging)Gaming and Entertainment IndustriesNetwork Communications | Model | BPC-3072-1A1 | BPC-3072-2A1 | BPC-3072-3A1 | ||
| Processor System | CPU | Intel® Core™ i5-7200U |
Intel® Core™ i5-7200U |
Intel® Core™ i3-7100U |
|
| Frequency | Dual-Core 3.1 GHz |
Dual-Core 3.1 GHz |
Dual-Core 2.4 GHz |
||
| L2 Cache | Intel® Smart Cache 3 MB | ||||
| BIOS | UEFI | ||||
| Memory | Technology | DDR4 2133 MHz SDRAM | |||
| Max. Capacity | 32 GB | ||||
| Socket | 2 260-pin SO-DIMM | ||||
| Display | Graphics Engine | Intel® HD Graphics 620 | |||
| HDMI | 1 HDMI,1 DP | ||||
| Display Port | HDMI2.0a, HDCP2.2, max resolution up to 4096 x 2160 @ 60Hz | ||||
| DP | DP 1.2, max resolution up to 3840 x 2160@ 60Hz | ||||
| Front I/O Interface | USB | 2 USB 2.0 |
2
USB 2.0 |
2
USB 2.0 |
|
| Serial Port | 3 RS-232 | 1 RS-232 ,1 RS-232(option) | 3 RS-232 | ||
| Digital I/O | 8bits GPIO (DB-15) |
8bit GPIO(DB-15) |
8bit GPIO(DB-15) |
||
|
Rear
I/O Interface |
USB | 4 USB 3.0 | 4 USB 3.0 | 4 USB 3.0 | |
| Serial port | 1 RS-232/422/485 | 1 RS-232/422/485 | 1 RS-232/422/485 | ||
| Ethernet |
Controller |
2 GbE(Intel® i219V and Intel® i211AT) |
4 GbE(Intel® i219V and Intel® i211AT) |
2 GbE(Intel® i219V and Intel® i211AT) |
|
|
Audio |
Connectors |
Line out, Mic in |
|||
|
Expansion |
Mini PCIe |
1 full-size |
|||
|
Storage |
SATA |
1 2.5” HDD / SSD, SATA III (Max. data transfer rate 600 MB/s) |
|||
|
M.2 |
2 M.2, 1 M.2 2280 B/M key, 1M.2 2230 A/E Key |
|
|||
| Power | Power Type | AT / ATX | |||
| Power Supply Voltage | 9-36 V DC input (Phoenix Connector) | ||||
| Power Consumption (Typical) | 1.1 A @ 12 V (13.2 W) |
1.20A @ 12V (14.4W) |
1.1 A @ 12 V (13.2 W) |
||
| Power Consumption (Max) | 2.58 A @ 12 V (31 W) |
5.08 @ 12V (61W) |
2.58 A @ 12 V (31 W) |
||
| Environment | Operational |
-20~60° C (-4~140° F) w/ Extend Temp. RAM & Extend Temp. 2.5” SSD (Humidity: 60° C @ 80% RH Non-condensing |
|||
| Non-Operational | -40~85° C (-40~185° F) (Humidity: 50° C @ 95% RH Non-condensing) | ||||
| Vibration |
5 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ SSD only) 1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ 2.5” HDD) |
||||
| Shock |
50 G, IEC 60068-2-27, half sine, 11 ms duration (w/ SSD only) 20 G, IEC 60068-2-27, half sine, 11 ms duration (w/ 2.5” HDD) |
||||
| Certificate | Certification | CE, FCC Class A | |||
| General | Dimensions(W x H x D) | 238 x 55 x 155 mm (9.37” x 2.16” x 6.1”) | |||
| Weight | 1.77 kg (3.90 lb) |
1.97 kg (4.34 lb) |
1.77 kg (3.90 lb) |
||
| Operating System | Windows10 IoT | ||||
Packing List
|
Description |
|
1 x BPC-3072 |
|
1 x Power Adapter |
|
1 x Power Cord |
Ordering Information
|
Part No. |
Description |
|
BPC-3072-1A1 |
Intel® Core® i5-7200U 3.1 GHz Dual core CPU, 2 DDR4, 2 GbE, 4 USB 3.0, 2 USB 2.0, 3 RS-232, 1 RS-232/422/485, 8bits GPIO, line out, mic in,1 HDMI, 1DP, DC 9~36V, Phoenix Connector |
|
BPC-3072-2A1 |
Intel® Core® i5-7200U 3.1 GHz Dual core CPU, 2 DDR4, 4 GbE, 4 USB 3.0, 2 USB 2.0, 1 RS-232, 1 RS-232/422/485, 8bits GPIO, line out, mic in,1 HDMI, 1DP, DC 9~36V, Phoenix Connector |
|
BPC-3072-3A1 |
Intel® Core® i3-7100U 2.4 GHz Dual core CPU, 2 DDR4, 2 GbE, 4 USB 3.0, 2 USB 2.0, 3 RS-232, 1 RS-232/422/485, 8bits GPIO, line out, mic in,1 HDMI, 1DP, DC 9~36V, Phoenix Connector |
Optional Items
Part No.
Description
AWD-3G002
3G (HSPA+) Module + 1 Antenna, Full-size
AWD-4G001
4G (LTE) Module + 2 Antennas, Full-size
AWD-WF001
Wi-Fi 802.11 bgn (1T1R) + 1 Antenna, Half-size
AWD-WF003
Wi-Fi 802.11 abgn/ac/BT4.0 (2T2R) Module + 2 Antennas (Dual band), Half-size
AWD-WF004
Wi-Fi 802.11 b/g/n + BT4.0(1T1R) + 2 Antenna(dual band), M.2 2230 type
AWD-WF005
Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 Antenna(dual band), M.2 2230 type
